Side View

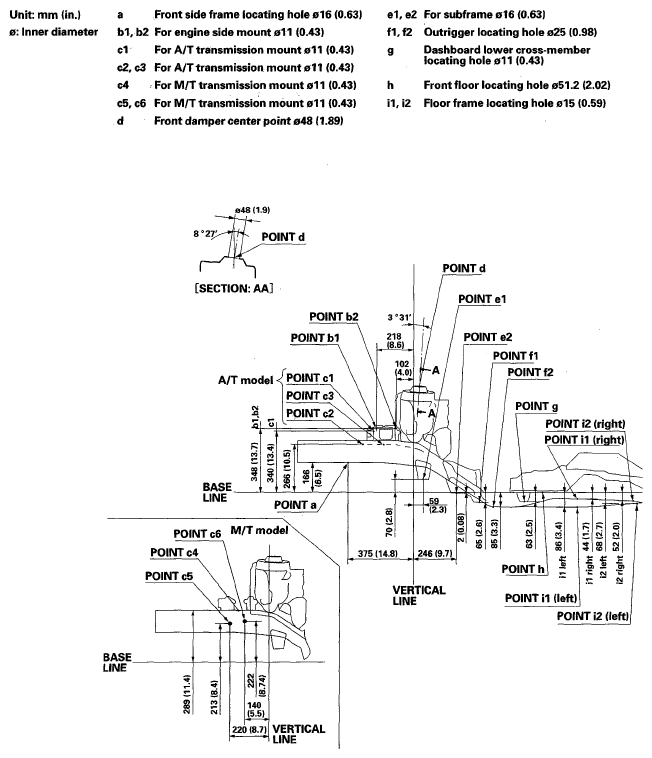

Fig 1: Frame Repair Chart - Side View (1 Of 2)

G05456427

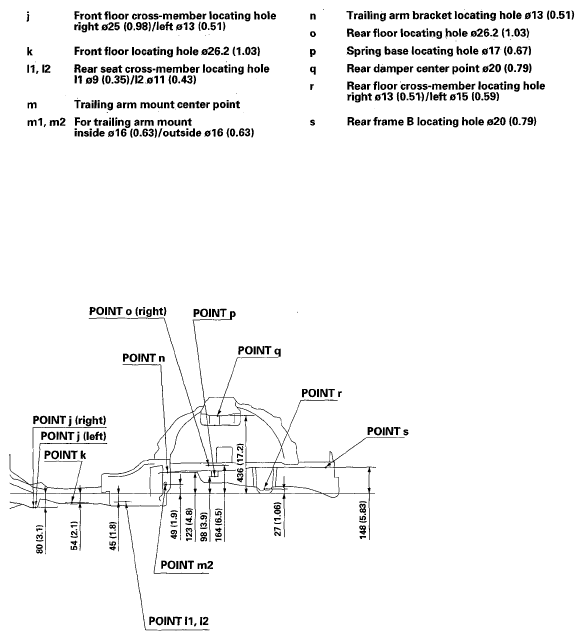

Fig 2: Frame Repair Chart - Side View (2 Of 2)

G05456428
