Relays And Control Unit Locations: Dashboard

Fig 1: Identifying Relay And Control Unit Locations - Dashboard (1 Of 3)
G05456545
Fig 2: Identifying Relay And Control Unit Locations - Dashboard (2 Of 3)
G05456546

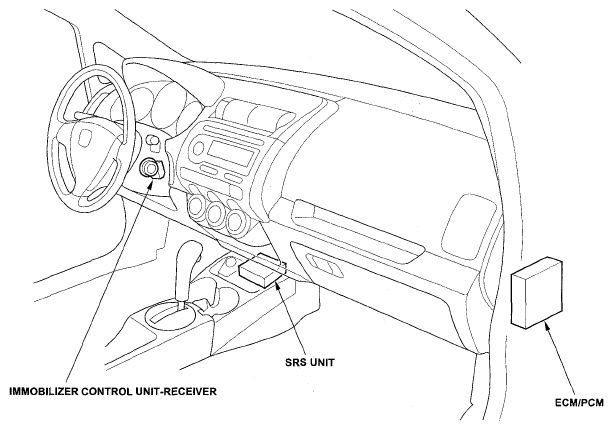

Fig 3: Identifying Relay And Control Unit Locations - Dashboard (3 Of 3)
G05456547
