License Plate Light Assembly: Installation

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE LICENSE PLATE LIGHT ASSEMBLY
1. Install the license plate light bulb into the light socket.
2. To install the license plate light bulb socket and bulb, turn them in the direction indicated by the arrow in Fig 1.

  Fig 1: Installing License Plate Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the license plate light assembly with the screw.

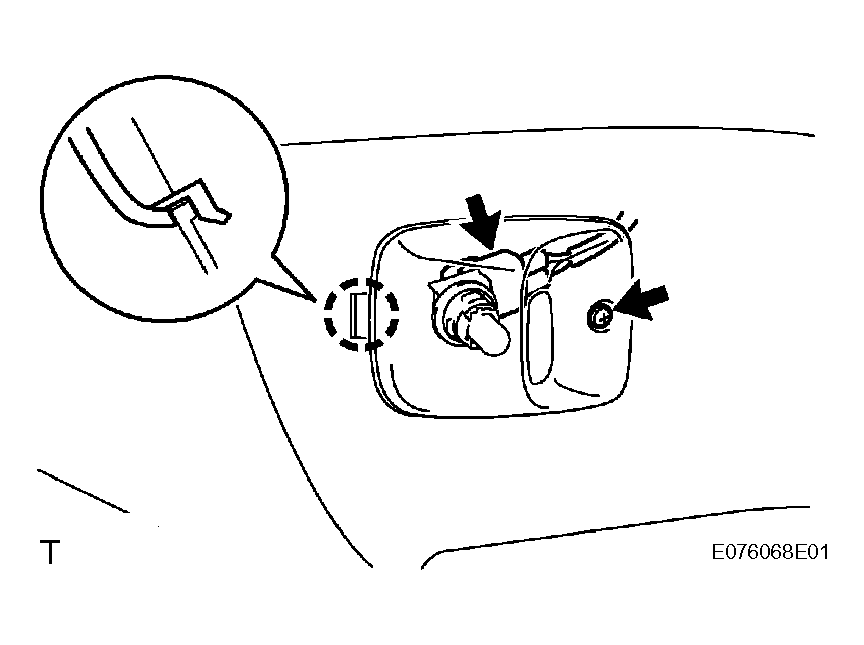

  Fig 2: Installing License Plate Light Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
