Use Throttle Depressor Tool For A/C System Performance Test (08050A)
Publication date: 2008-05-01Reference number: 08050A
USE THROTTLE DEPRESSOR TOOL FOR A/C SYSTEM PERFORMANCE TEST
SERVICE NEWS
| Affected Models: | All 1994 and later models with R-134a A/C except Passport |
SERVICE INFORMATION
If you're doing S/B 96-012 , Air Conditioning System Performance Test , you've got to raise the engine speed and hold it steady for at least 10 minutes with no one in the vehicle. Well, that's easier said than done, especially if you're working on a vehicle with an electronic throttle control system (ETCS). There's simply no way to raise the engine speed from under the hood.

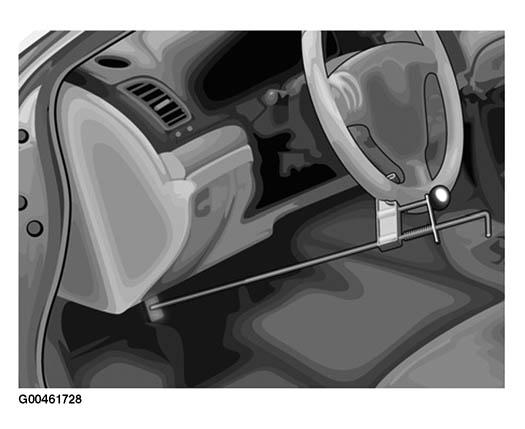

That's where the throttle depressor tool comes in. This handy gadget connects between the steering wheel rim and the accelerator pedal. Coarse and fine adjustments on the tool allow for precise engine speed control. Here's what this tool looks like:
Since you're raising the engine speed, remember these important safety tips:
- Make sure that the parking brake is set and all four wheels are blocked.
- Make sure that the shift lever is in Park (A/T models) or in Neutral (M/T models).
- Don't exceed the engine speed that's listed in the applicable S/M or in ISIS.
- Don't stand in front of or behind the vehicle. (And don't let anyone else do it either.)
- Don't leave the vehicle unattended.
If you'd like to order this tool for your shop, give the Honda Tool and Equipment Program folks a call at 888-424-6857 and ask for Model No. B240B. You can also order it online; it's just a few clicks away on the iN. From the main menu, click on SERVICE . You can then click on either Service Bay and Tool and Equipment Program or eMall and Tool & Equipment . Either way takes you to the Tool and Equipment Program webpage. Once there, click on Online Catalog , enter the part number in the Search box, and click on Go! . You're taken straight to the order page.
