Safety Improvement Campaign - Fit SRS Unit Reprogramming (07-011)

SAFETY IMPROVEMENT CAMPAIGN - FIT SRS UNIT REPROGRAMMING

TECHNICAL SERVICE BULLETIN

BACKGROUND

Last year, the 2007 Fit received a top rating of five stars in frontal-impact crash testing conducted by the National Highway Traffic Safety Administration (NHTSA). However, testing done later by the Insurance Institute for Highway Safety (IIHS) found that front airbag deployment could occur a fraction of a second earlier than normal under certain conditions. To enhance front airbag performance, Honda is conducting a safety improvement campaign involving the reprogramming of SRS control units.

CUSTOMER NOTIFICATION

All owners of affected vehicles will be sent a notification of this campaign. An example of the customer notification is at the end of this service bulletin.

To verify vehicle eligibility, check for at least one of these items:

• The customer has a notification letter.
• The vehicle is shown on your campaign responsibility report.
• The vehicle is shown as eligible on a VIN status inquiry.

In addition to these verification items, check for a punch mark above the first character of the engine compartment VIN. A punch mark in that location means this campaign has already been completed.

Some vehicles affected by this campaign may be in your new vehicle inventory. These vehicles must be repaired before they are sold or leased.

CORRECTIVE ACTION

Install the SRS software CD-ROM into an i  N workstation computer (a one-time operation), then reprogram the SRS unit. The tool used to reprogram 2007 Fit SRS units is the Fit SRS Cable Kit.

When connected to the vehicle's DLC (data link connector), the Fit SRS Cable Kit scans the SRS unit software and reprograms it by changing the calibration for front airbag deployment.

To reprogram a Fit SRS unit, you need the Fit SRS Cable Kit, the vehicle you're working on, and an i  N workstation computer.

WARRANTY CLAIM INFORMATION

Operation Number:	751505
Flat Rate Time:	0.3 hour
Failed Part:	P/N 77960-SLN-L22 H/C 8353674
Defect Code:	5FM00
Symptom Code:	Q3400
Template ID:	07-011A
Skill Level:	Repair Technician

REQUIRED TOOLS AND EQUIPMENT

• i  N Workstation Computer
• Fit SRS Cable Kit: T/N 070AZ-SLN0100 Includes converter box, USB cable, DLC cable, and software CD-ROM.

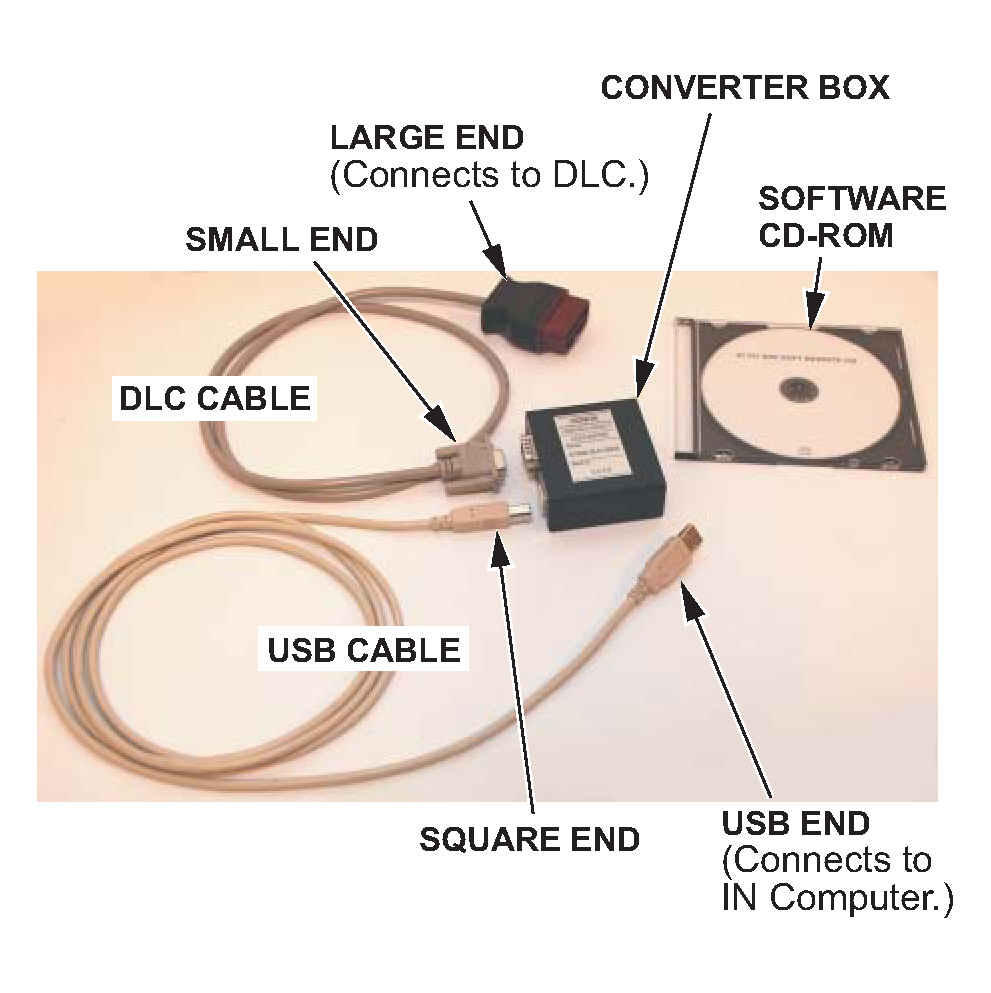

  Fig 1: SRS Cable Kit

  Courtesy of AMERICAN HONDA MOTOR CO., INC.

LOADING THE SRS SOFTWARE CD

1. Close any programs currently running on the i  N computer.
2. Insert the SRS software CD-ROM into the computer's CD-ROM drive.
3. At the lower left corner of the screen, click on Start  .
4. From the Start  menu, click on Run  .
5. From the Run  menu, click on Browse  .
6. From the Browse  menu, click on Setup.exe  , then click on OK  and click on Finish  .
7. At the Fit Recalibrate installation successful  screen, click on OK  .
   NOTE: Close the Start Menu  screen if it appears over the Fit Recalibrate installation successful  screen.
8. At the FTDI CDM Drivers have been successfully installed  screen, click on OK  .
9. Once the software is loaded, remove the CD-ROM, store it in a safe place, then go to REPAIR PROCEDURE .

REPAIR PROCEDURE

1. Turn the ignition switch to ON (II), and watch the SRS indicator. The indicator should go off after 7 seconds to let you know there are no SRS DTCs. If the indicator does not go off, use the HDS to retrieve and clear the DTC(s). The SRS unit cannot be reprogrammed if there are any SRS DTCs.
2. Position the i  N computer as close as possible to the driver's seat of the vehicle.
3. Attach the cables to the converter box:
   • Connect the small end of the DLC cable to the box.
   • Connect the square end of the USB cable to the box.
4. Connect the other end of the USB cable to the USB port on the iN computer.
5. At the lower left corner of the computer screen, click on Start  .
6. From the Start  menu, select Programs  , and then select Fit _Recalibrate  .
7. Input your dealership name, your name, and the VIN. With the specific VIN, the system can tell whether or not the SRS unit needs reprogramming.
8. Make sure the output file reads C/Fit_Recalibrate/LogFile.out  , then click on OK  .
9. When the screen changes, make sure it says VIN APPROVED  , then select Reprogram SRS  . If the screen does not say VIN APPROVED  , recheck to make sure you input the correct VIN.
10. With the ignition switch in LOCK (0), connect the large end of the DLC cable to the vehicle's DLC (data link connector) under the dashboard.
11. When the Connect Tool to Vehicle and Turn Key to IGN ON  box appears, turn the ignition switch to ON (II) and click on OK  .
12. When the message Vehicle Needs to be Updated  appears, click on OK  . If the message Vehicle Does Not Need to be Updated  appears, the update was already completed. If this is the case, go to step  15.
    NOTE: If a communication error occurs, you may need to reconfigure the COM port. Go to COM PORT RECONFIGURATION .
13. When the Recalibrations Completed  message appears, click on OK  .
14. Click on the Quit  button to exit the program. Disconnect the cable from the DLC.
15. To complete the procedure, center-punch a completion mark above the first character of the engine compartment VIN.

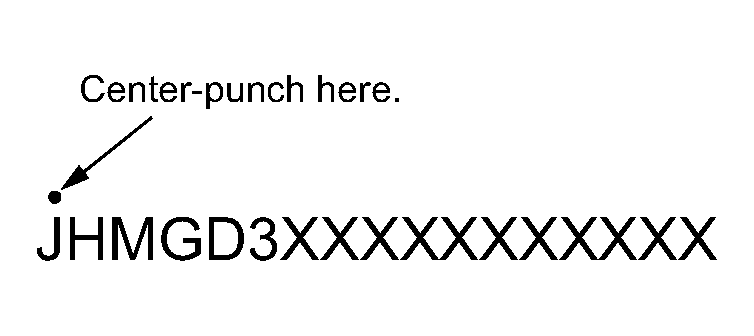

    Fig 2: Locating Center-Punch Mark

    Courtesy of AMERICAN HONDA MOTOR CO., INC.

COM PORT RECONFIGURATION

1. Make sure the SRS cable kit's USB cable is properly connected to the in computer and to the converter box.
2. From the Start  menu, select Settings  , and then click on Control Panel  .
3. From the Control Panel  screen, double-click on Systems  .
4. From the System Properties  menu, click on Hardware  .
5. From the Hardware  menu, click on Device Manager  .
6. Click on Ports  , and see if the Communications Port  is set to COM 1  .
   • If COM 1  is set, the COM port is correct.
   • If COM 1  is not set, go to the next bullet point.
7. From the Ports  menu selection, double-click on Communications Port  .
8. From the Communications Port Properties  menu, click on Port Settings  , then click on Advanced  .
9. From the Advanced Settings  menu, change the COM Port Number to COM1  .

Example of Customer Letter

February 2007

Safety Improvement Campaign: Fit SRS Control Unit

Dear Fit Owner:

This notice is sent to inform you of a product update for your vehicle.

What is the reason for this notice?

Last year, the 2007 Fit received a top rating of five stars in frontal-impact crash testing conducted by the National Highway Traffic Safety Administration (NHTSA). However, testing done later by the Insurance Institute for Highway Safety (IIHS) found that front airbag deployment could occur a fraction of a second earlier than normal under certain conditions. To enhance front airbag performance, Honda is conducting a safety improvement campaign that involves the reprogramming of the supplemental restraint system (SRS) control unit.

What should you do?

Call any authorized Honda dealer, and make an appointment to have your vehicle updated. The dealer will reprogram your vehicle's SRS control unit. This work will be done free of charge. Please plan to leave your vehicle at the dealer for half a day to allow them flexibility in scheduling.

Who to contact if you experience problems.

If you are not satisfied with the service you receive from your Honda dealer, you may write to:

American Honda Motor Co., Inc.

Honda Automobile Customer Service

Mail Stop 500-2N-7A

1919 Torrance Blvd.

Torrance, CA 90501-2746

What to do if you feel this notice is in error.

Our records show that you are the current owner or lessee of a 2007 Fit involved in this campaign. If this is not the case, or the name/address information is incorrect, please fill out and return the included, postage-paid Information Change Card  . We will then update our records.

If you have questions.

If you have questions about this notice, or need assistance with contacting a Honda dealer, please call Automobile Customer Service at (800) 999-1009.

We apologize for any inconvenience this campaign may cause you.

Sincerely,

American Honda Motor Co., Inc.

Honda Automobile Division

February 9, 2007

Dear Service Manager:

Honda Motor Co., Ltd, Inc. is announcing a safety improvement campaign affecting certain 2007 Fits. Last year, the 2007 Fit received a top rating of five stars in frontal-impact crash testing conducted by the National Highway Traffic Safety Administration (NHTSA). However, testing done later by the Insurance Institute for Highway Safety (IIHS) found that front airbag deployment could occur a fraction of a second earlier than normal under certain conditions. To enhance front airbag performance, Honda is conducting a safety improvement campaign involving the reprogramming of SRS control units.

Repair Strategy

The repair is to reprogram Fit SRS units with an i  N workstation computer and a new tool called the Fit SRS Cable Kit. For SRS cable software installation, SRS unit reprogramming, warranty, and affected VIN information, refer to Service Bulletin, 07-011, Safety Improvement Campaign: Fit SRS Unit Reprogramming  .

The SRS units of affected Fits in your inventory must also be reprogrammed.

Before you reprogram an SRS unit, make sure the work hasn't already been done by doing a VIN status inquiry or by checking for a punch mark above the first character of the engine compartment VIN.

Customer Notification

Customers will be sent a notification of this campaign the week of February 12.

Tool Information

The Fit SRS Cable Kit (two cables, converter box, and software CD-ROM, T/N 070AZ-SLN0100) will be shipped to you or your parts department the week of February 12.

Sincerely,

American Honda Motor Co., Inc.

Honda Automobile Division
