Combination Meter: Disassembly

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE BACK COVER
1. Remove the 3 screws.
2. Using a screwdriver, disengage the 2 claws and remove the back cover.
  HINT:

  Tape up the screwdriver tip before use.

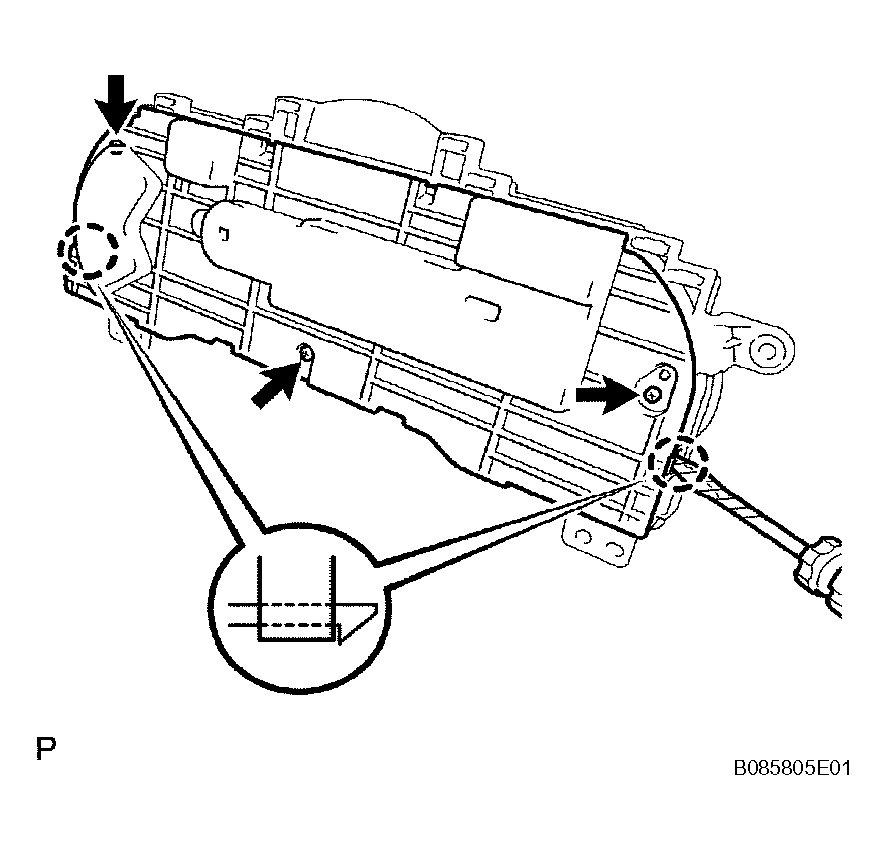

  Fig 1: Removing Back Cover With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE COMBINATION METER GLASS
1. Using a screwdriver, disengage the 8 claws and remove the combination meter glass.
  HINT:

  Tape up the screwdriver tip before use.

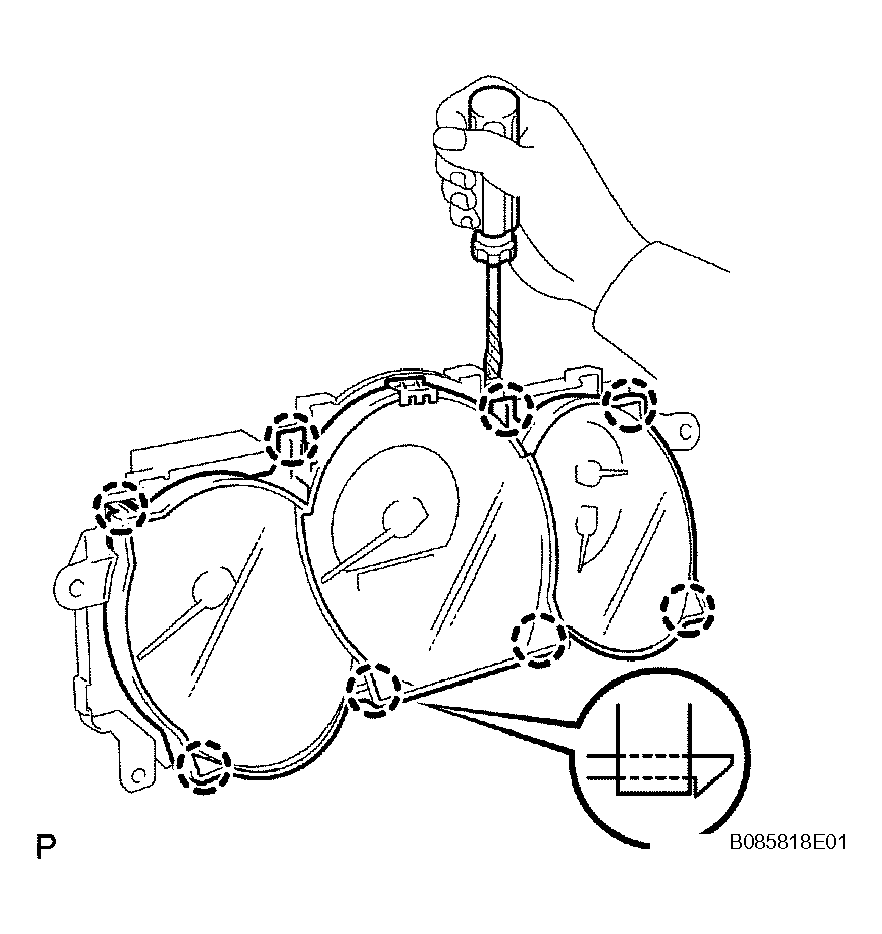

  Fig 2: Removing Combination Meter Glass & Disengaging Claws Using Screwdriver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
