Combination Meter: Installation

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the 2 connectors.
    2. Install the combination meter assembly with the 4 screws.

      Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)

  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (See  INSTALLATION  )
  3. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL (See  INSTALLATION  )

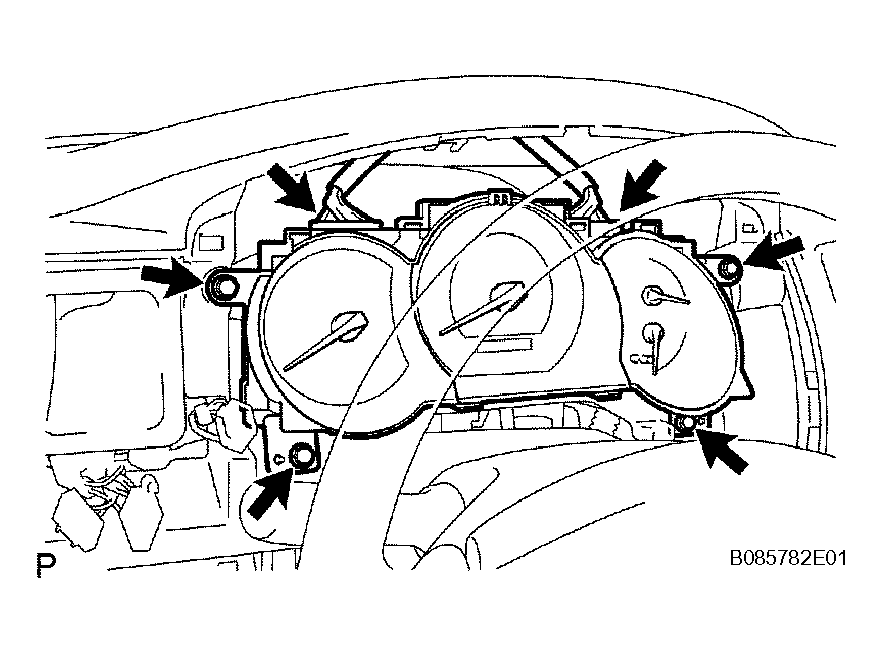

    Fig 1: Installing Combination Meter Assembly With Screws
    G04412691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY (See  REASSEMBLY  )
  5. INSTALL INSTRUMENT PANEL HOLE COVER (for Lever Type Parking Brake) (See  INSTALLATION  )
  6. INSTALL INSTRUMENT PANEL UNDER TRAY (for Pedal Type Parking Brake) (See  INSTALLATION  )
  7. INSTALL COWL SIDE TRIM BOARD LH (for Regular Cab) (See  INSTALLATION  )
  8. INSTALL COWL SIDE TRIM BOARD LH (for Access Cab) (See  INSTALLATION  )
  9. INSTALL COWL SIDE TRIM BOARD LH (for Double Cab) (See  INSTALLATION  )
  10. INSTALL FRONT DOOR SCUFF PLATE LH (for Regular Cab) (See  INSTALLATION  )
  11. INSTALL FRONT DOOR SCUFF PLATE LH (for Access Cab) (See  INSTALLATION  )
  12. INSTALL FRONT DOOR SCUFF PLATE LH (for Double Cab) (See  INSTALLATION  )
  13. INSTALL FRONT FLOOR FOOTREST (See  FRONT FLOOR FOOTREST  )
  14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
