Combination Meter: Reassembly

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL COMBINATION METER GLASS
1. Engage the 8 claws and install the combination meter glass.

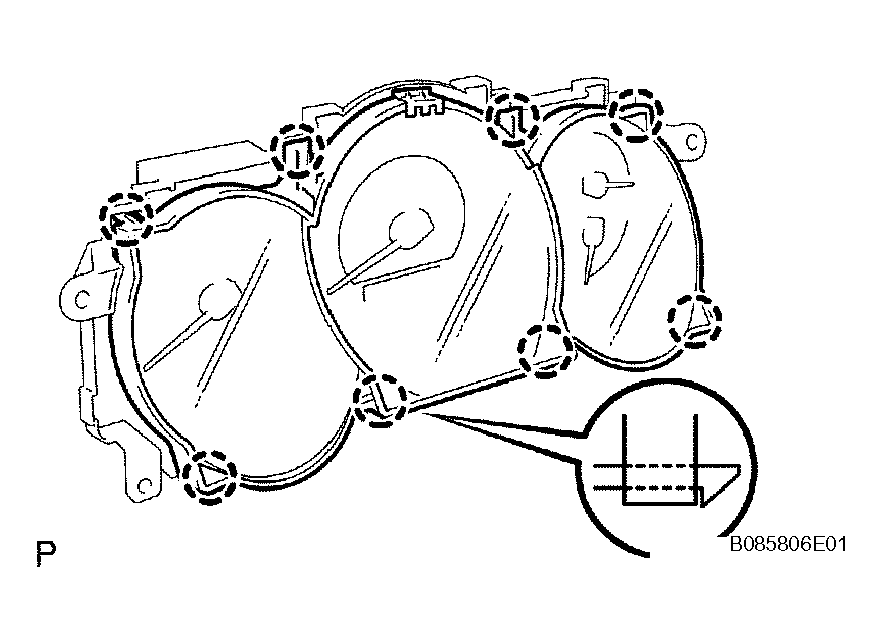

  Fig 1: Installing Combination Meter Glass & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL BACK COVER
1. Engage the 2 claws and install the back cover.
2. Install the 3 screws.

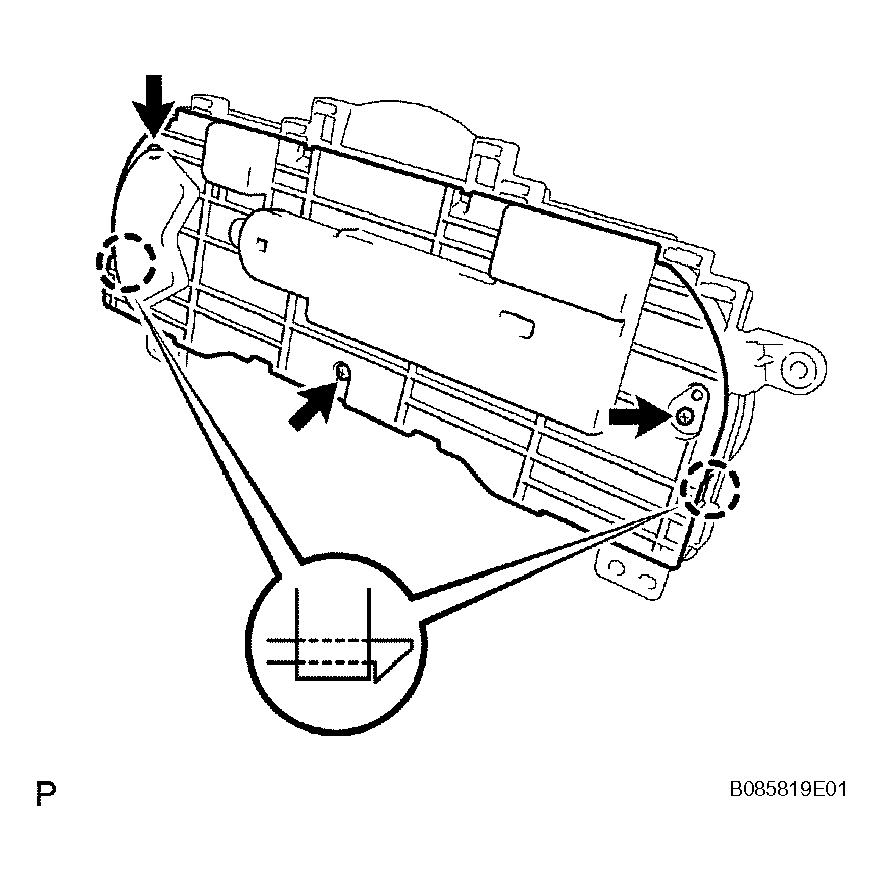

  Fig 2: Installing Back Cover With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
