Transponder Key Amplifier: Components

WARNING: This page is about a different car, the 2007 Toyota Tacoma. However, it is still accessible from the selected car via links, so may be relevant.

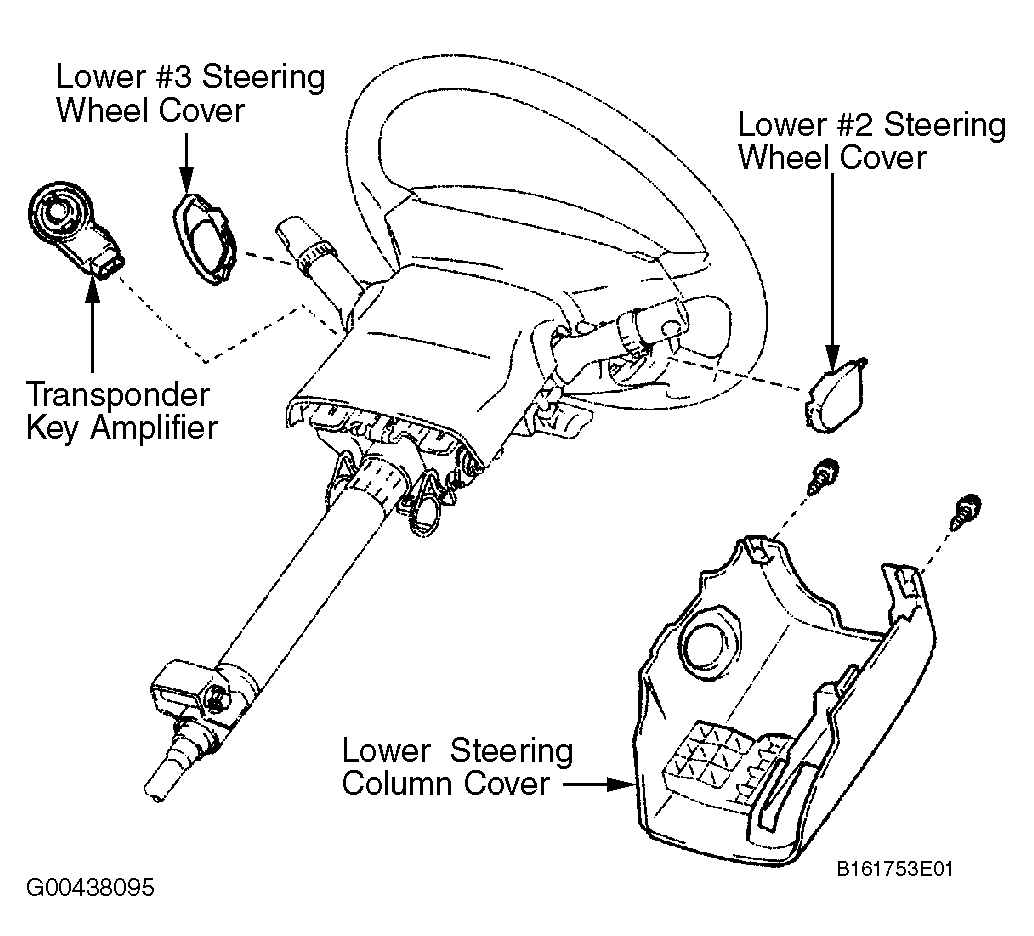

Fig 1: Identifying Transponder Key Amplifier Components
G00438095Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
