Cruise Control Switch: Diagrams

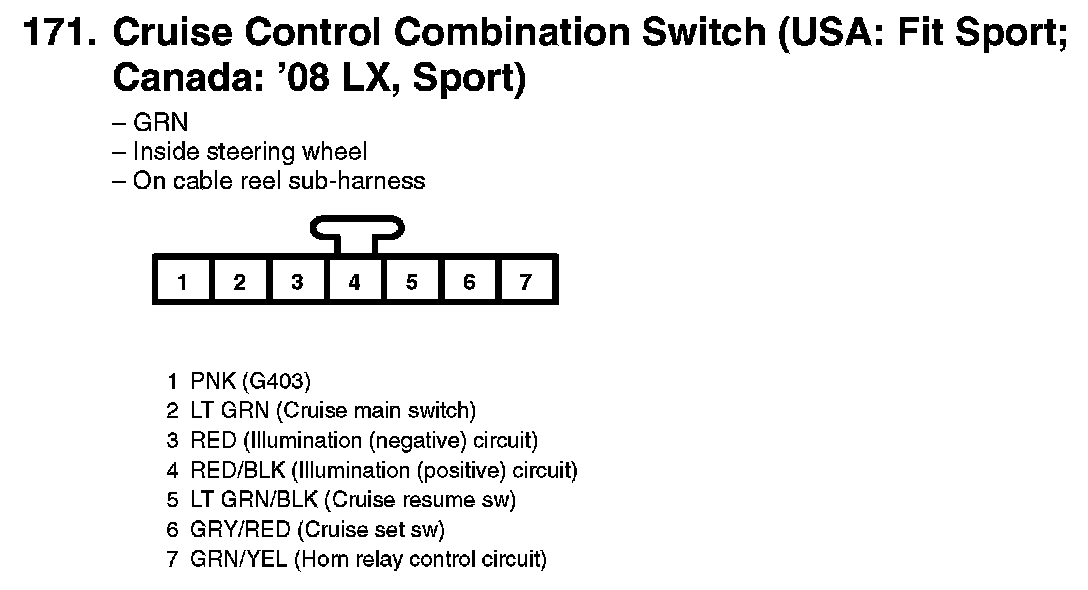

171. Cruise Control Combination Switch (USA: Fit Sport; Canada: '08 LX, Sport):
