Heating and Air Conditioning: Locations

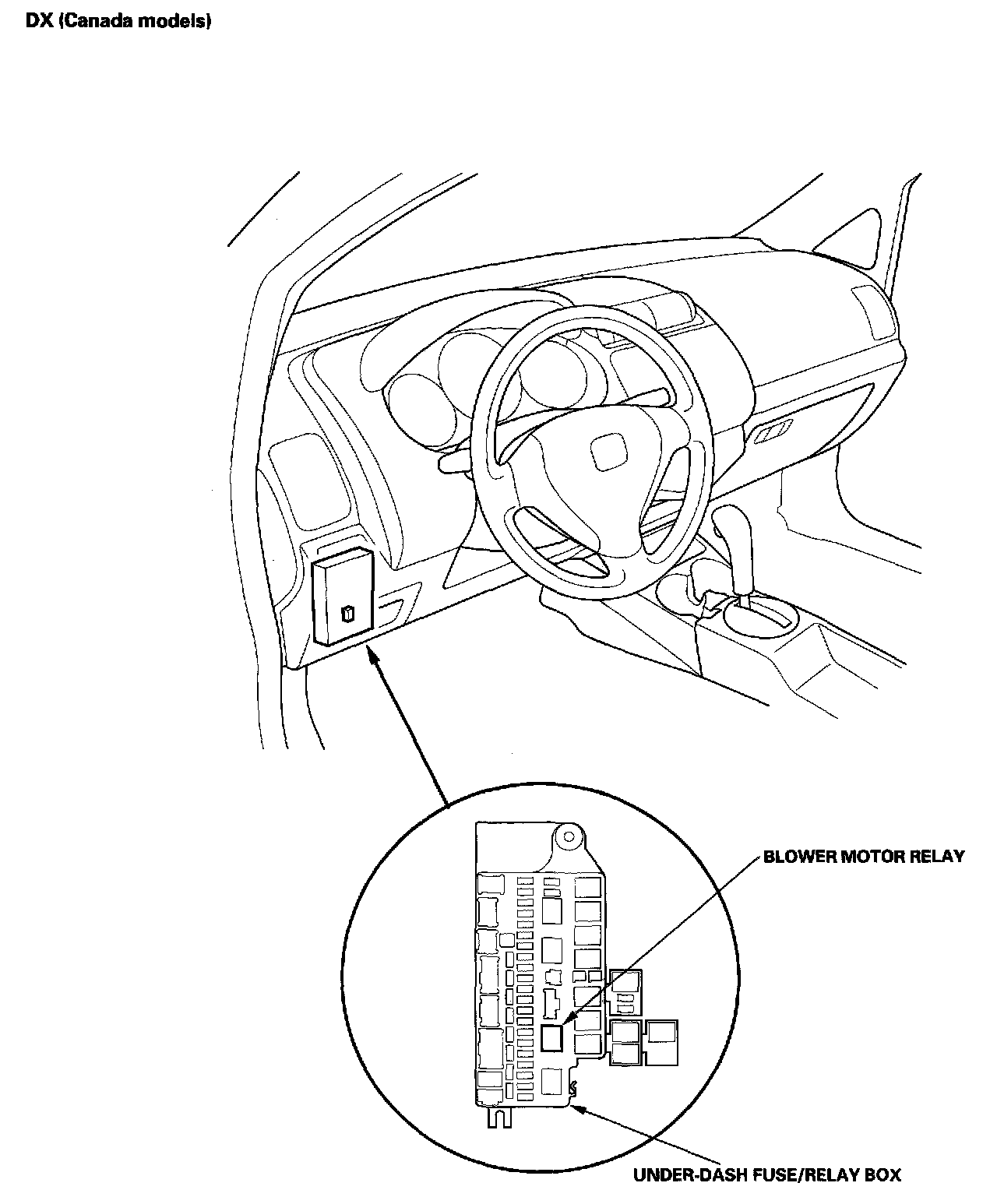

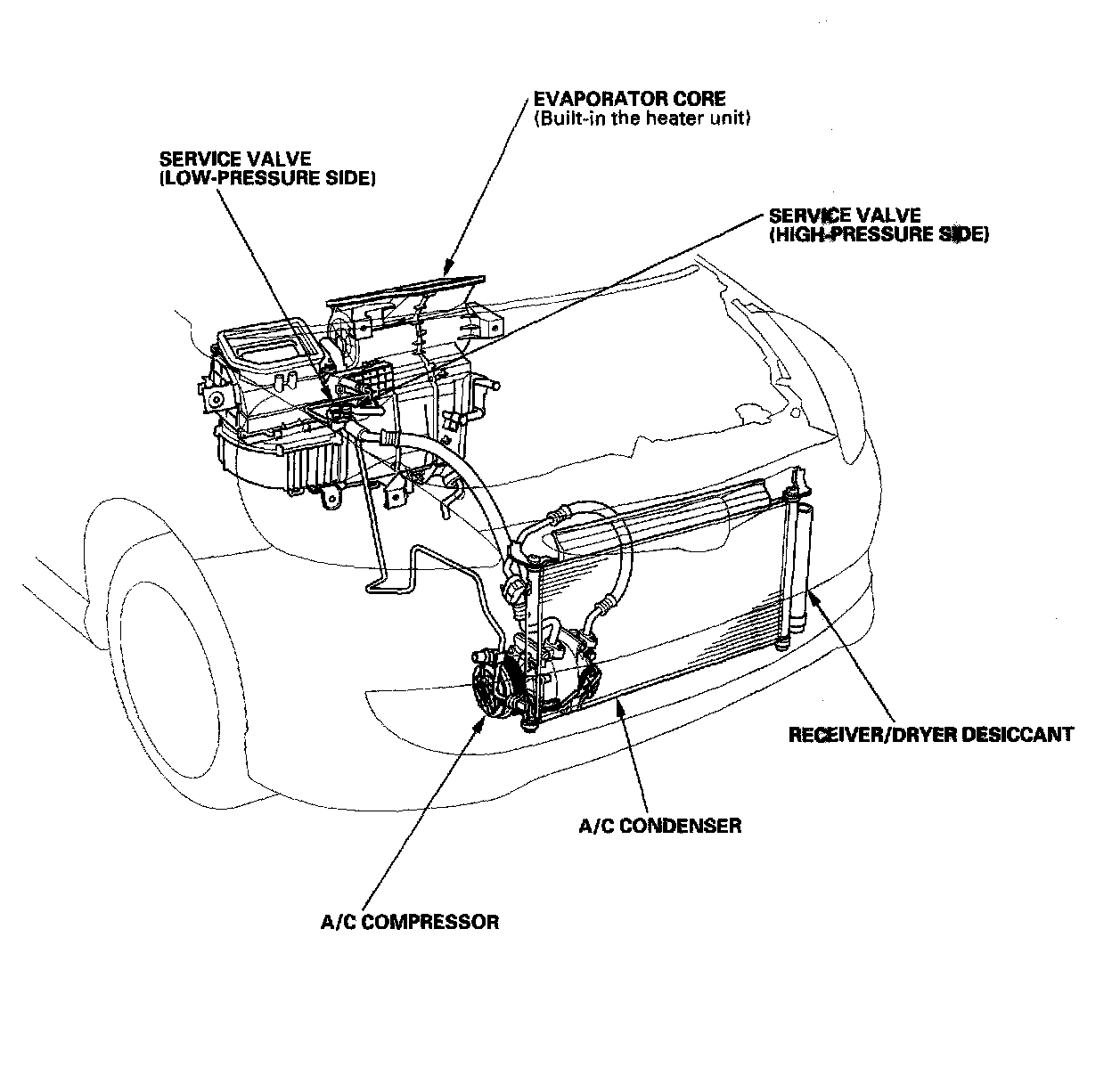

Heating/air Conditioning Component Location Index:



Heating/air Conditioning Component Location Index:



Heating/air Conditioning Component Location Index:

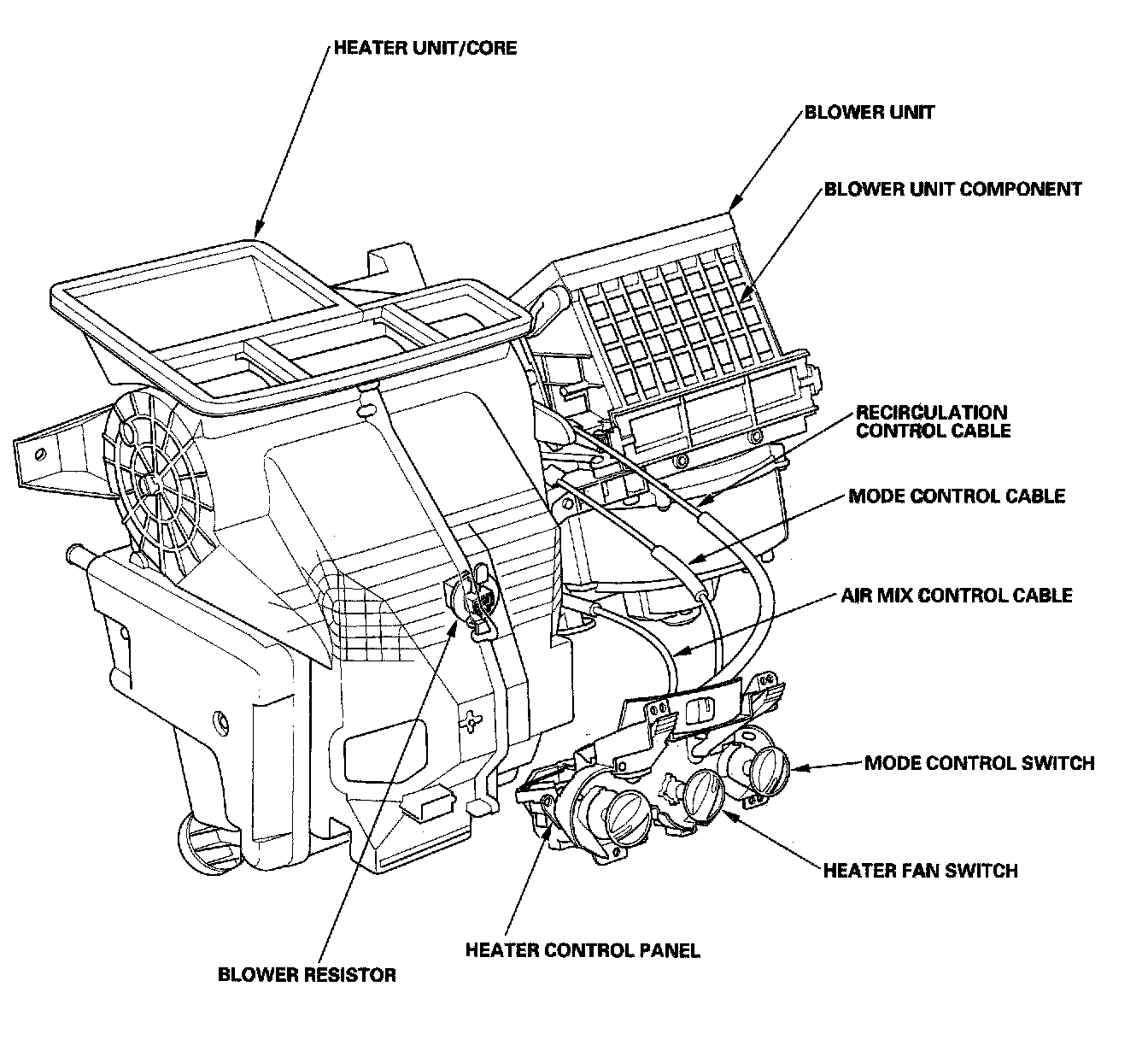

Heating Component Location Index:



Heating Component Location Index:
