Under-Dash Fuse/Relay Box and Subfuse Box

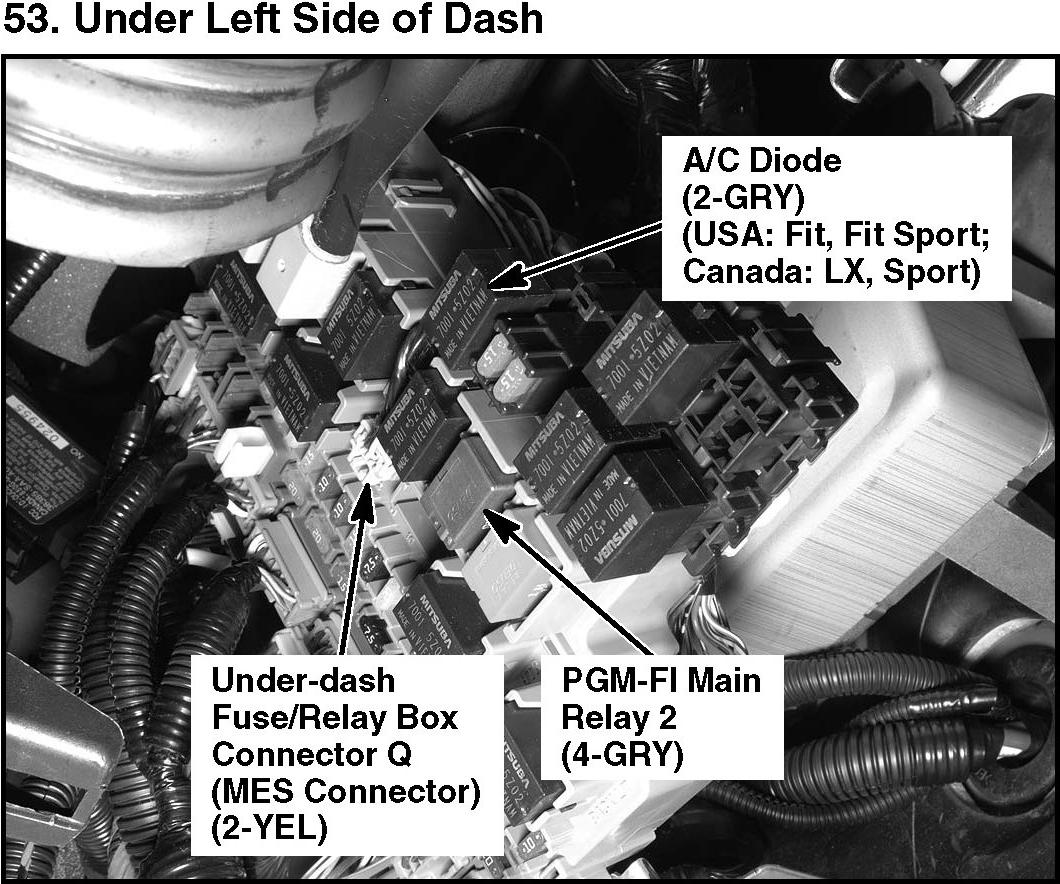

53. Under Left Side Of Dash:

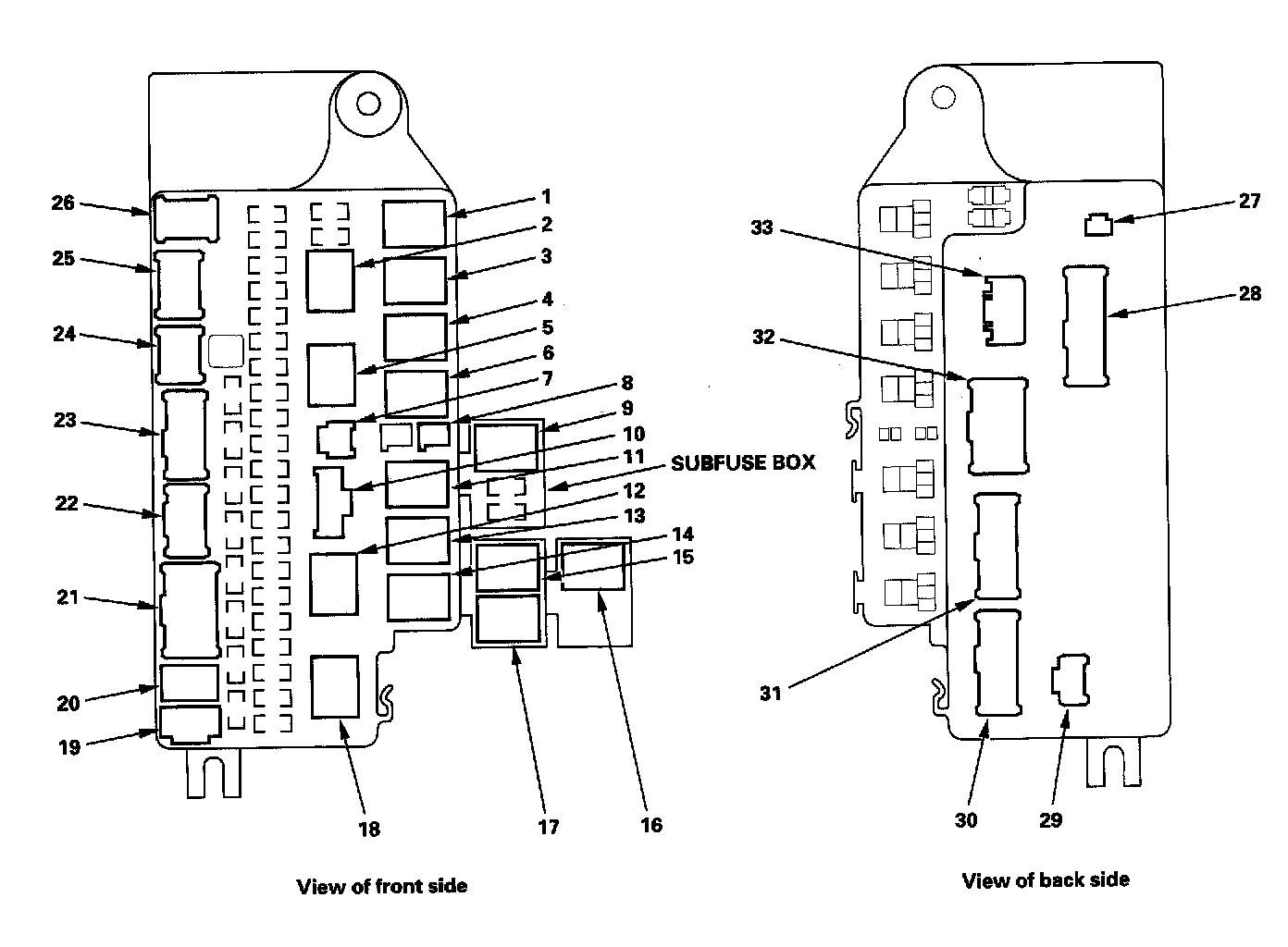

Under-dash Fuse/Relay Box And Subuse Box:

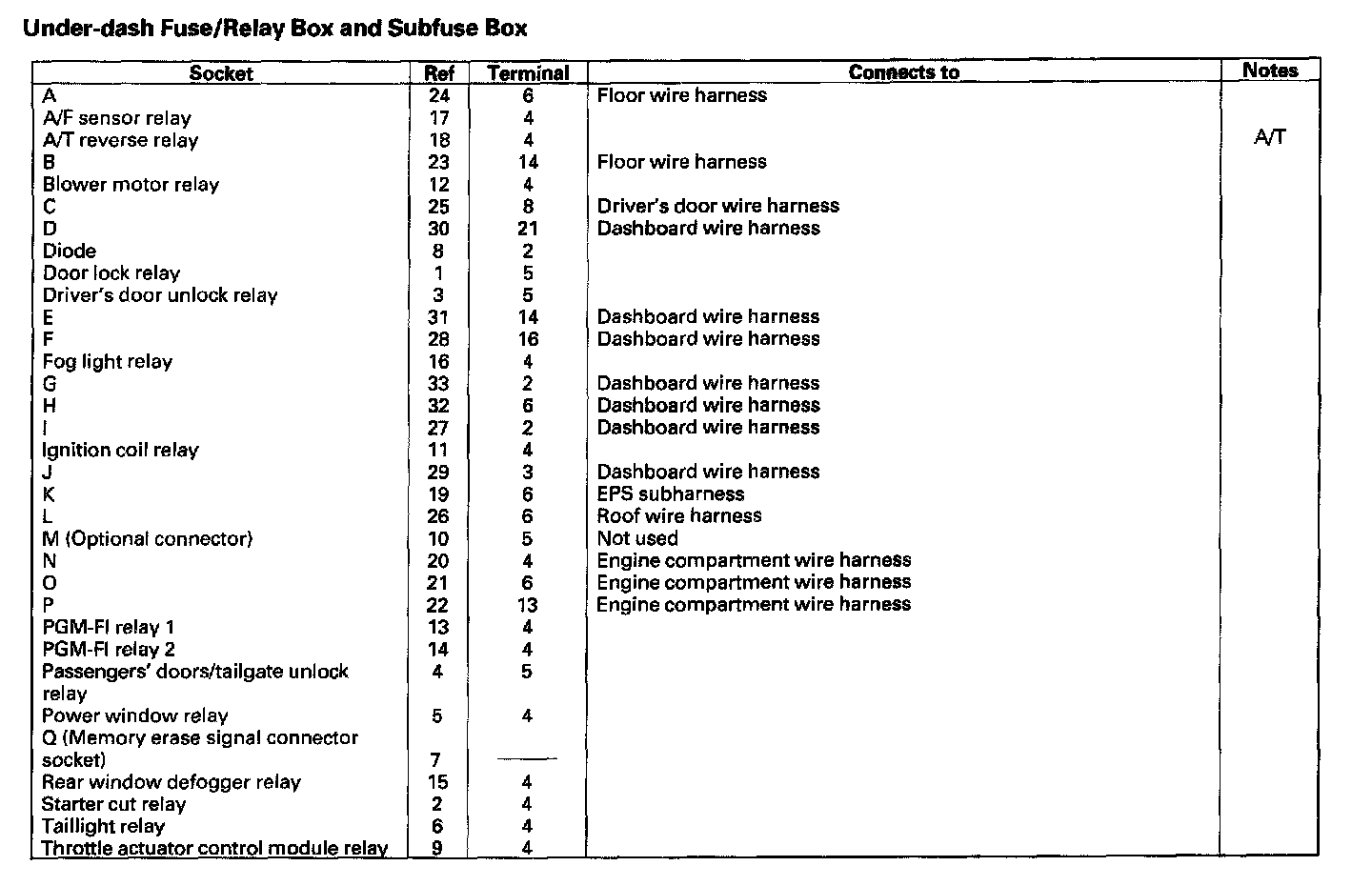

Under-dash Fuse/Relay Box And Subuse Box:
