Pressure Retaining Mode

VSA NO valve closed, VSA NC valve open, inlet valve closed, outlet valve closed, pump motor ON.

Front and rear caliper fluid is retained by the inlet valve and outlet valve.

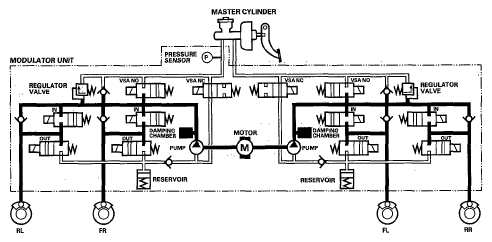

Fig 1: Pressure Retaining Mode - Circuit Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
