Alarm Module: Locations

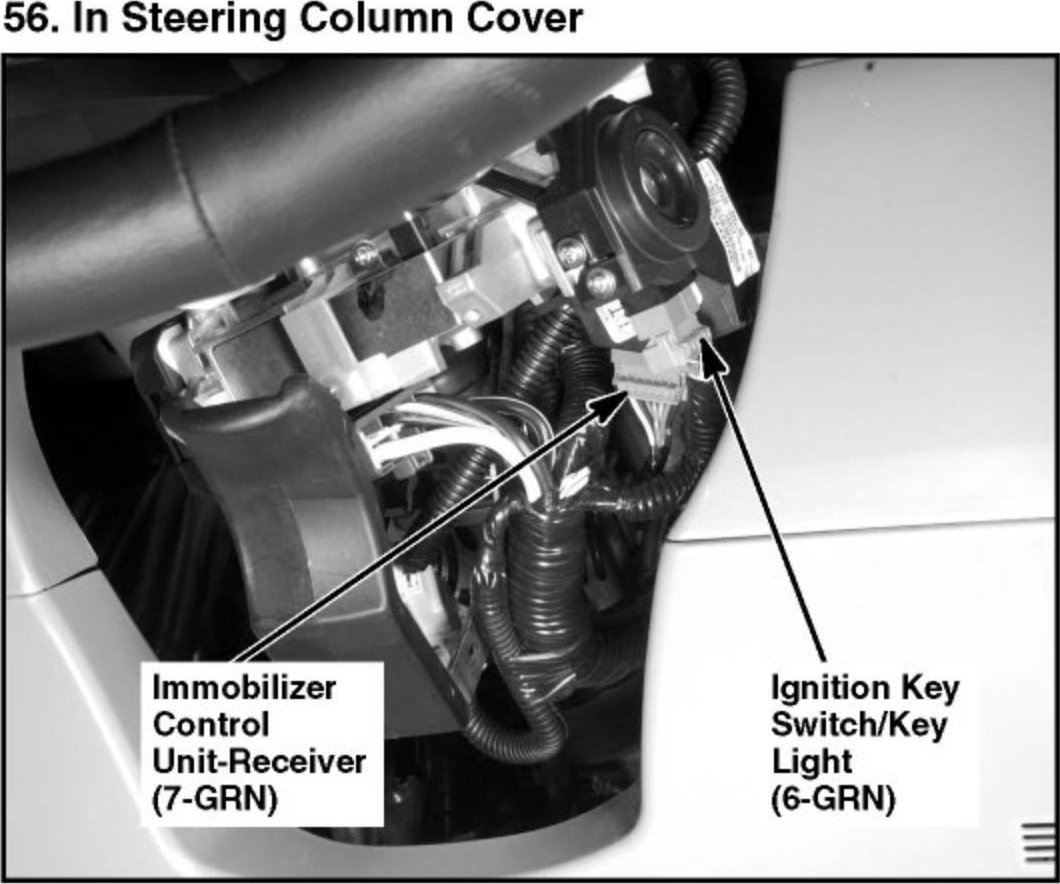

56. In Steering Column Cover:

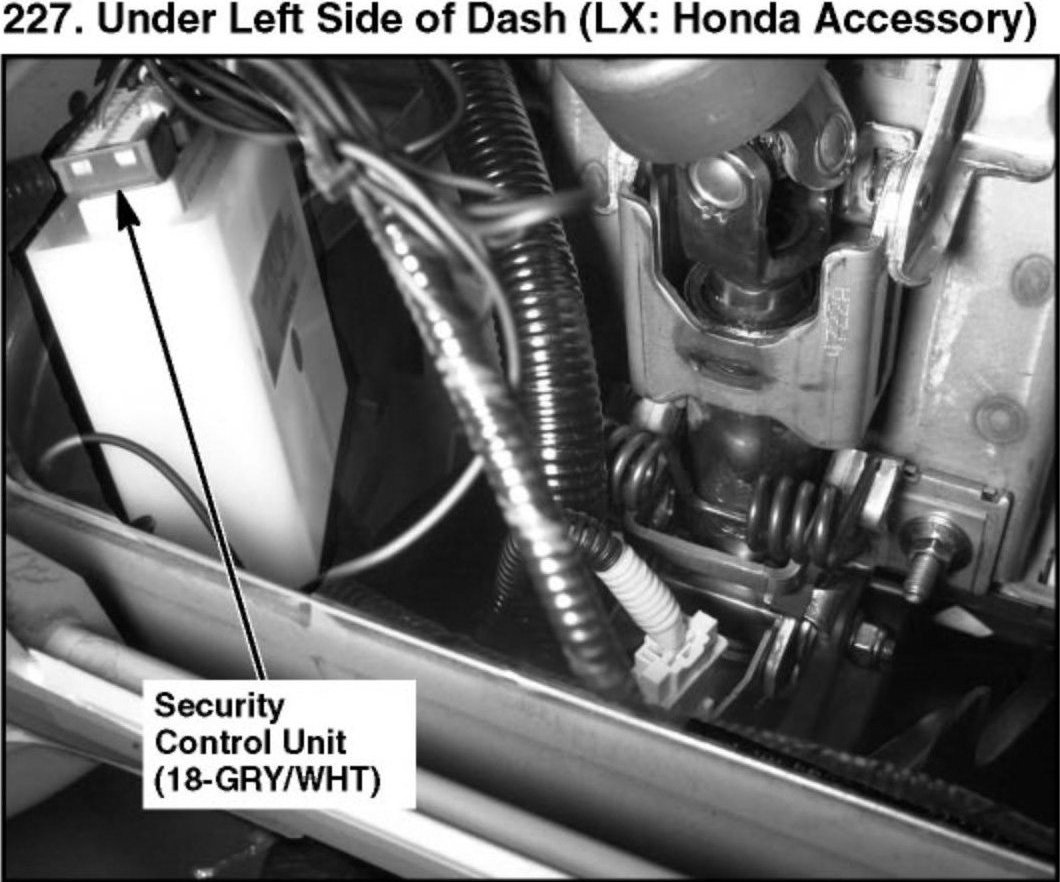

227. Under Left Side Of Dash (LX: Honda Accessory):



Relay And Control Unit Locations Dashboard:
