J35A7 Engine

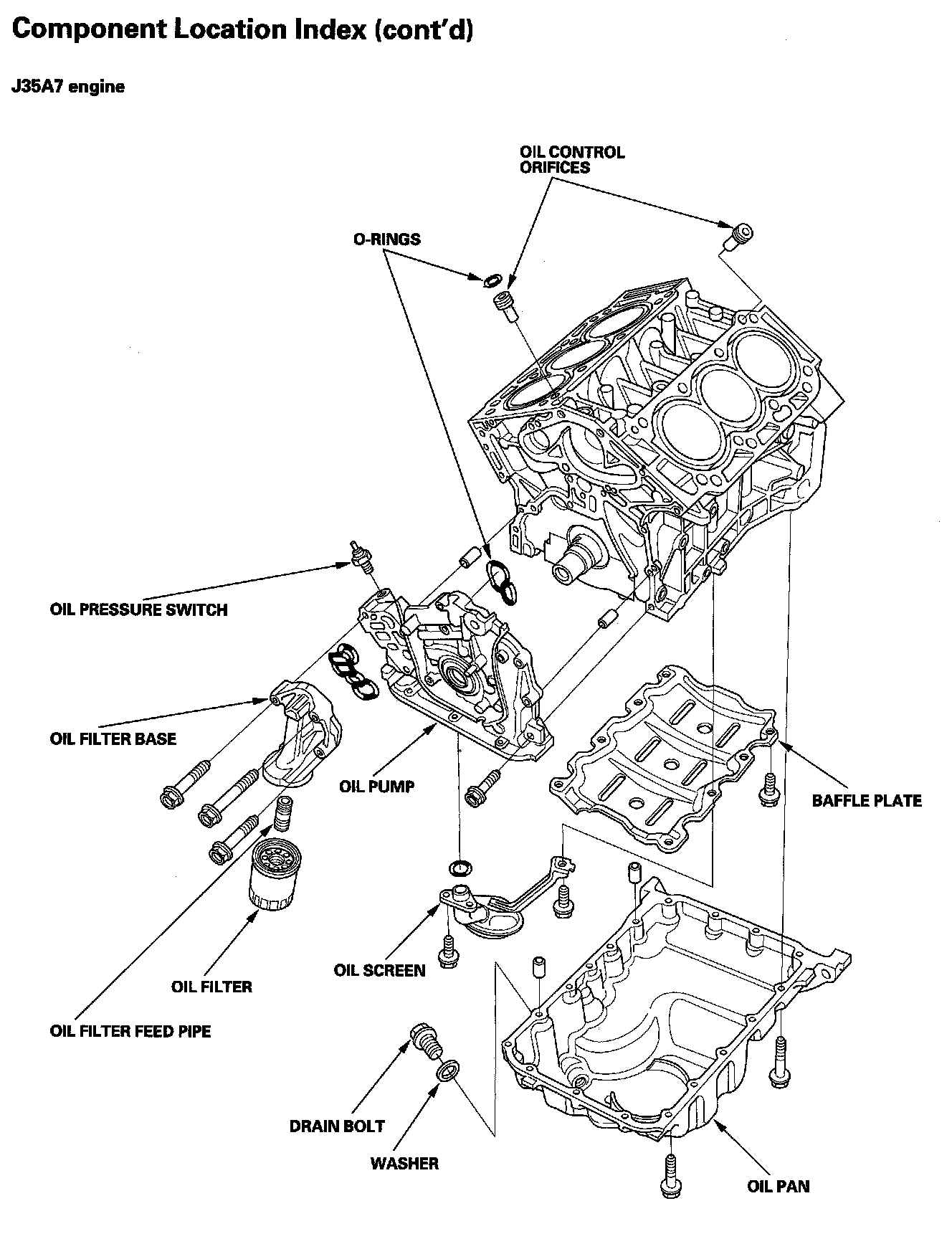

Engine Lubrication Component Location Index (Part 2):



Engine Lubrication Component Location Index (Part 3):
