Connector Views

232. Climate Control Panel (EX, EX-L, Touring):



246. Rear A/C Control Panel (LX) or Rear Climate Control Panel (EX, EX-L, Touring):



352. Climate Control Unit, Rear (EX, EX-L, Touring):

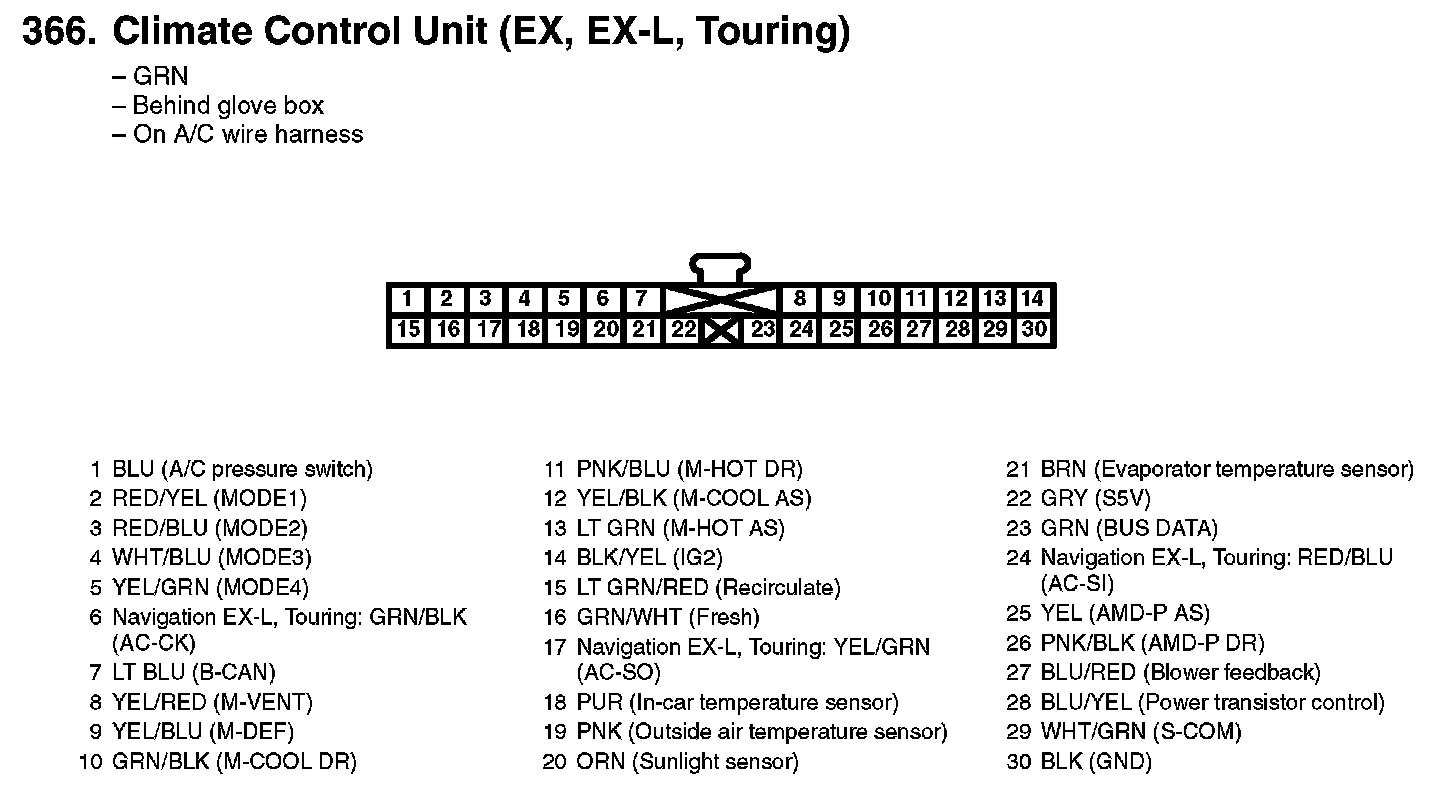

366. Climate Control Unit (EX, EX-L Touring):

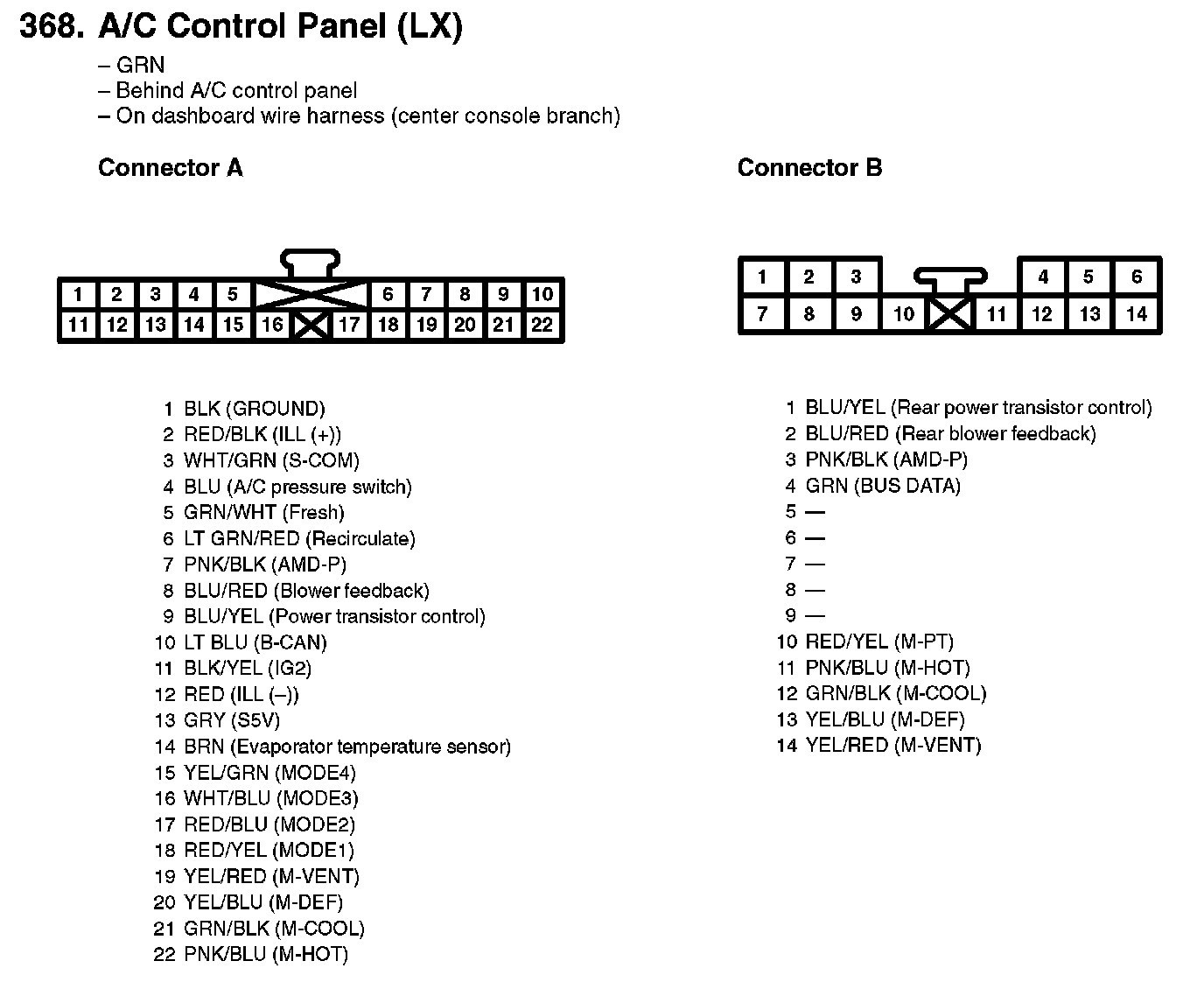

368. A/C Control Panel (LX):
