Component Locations

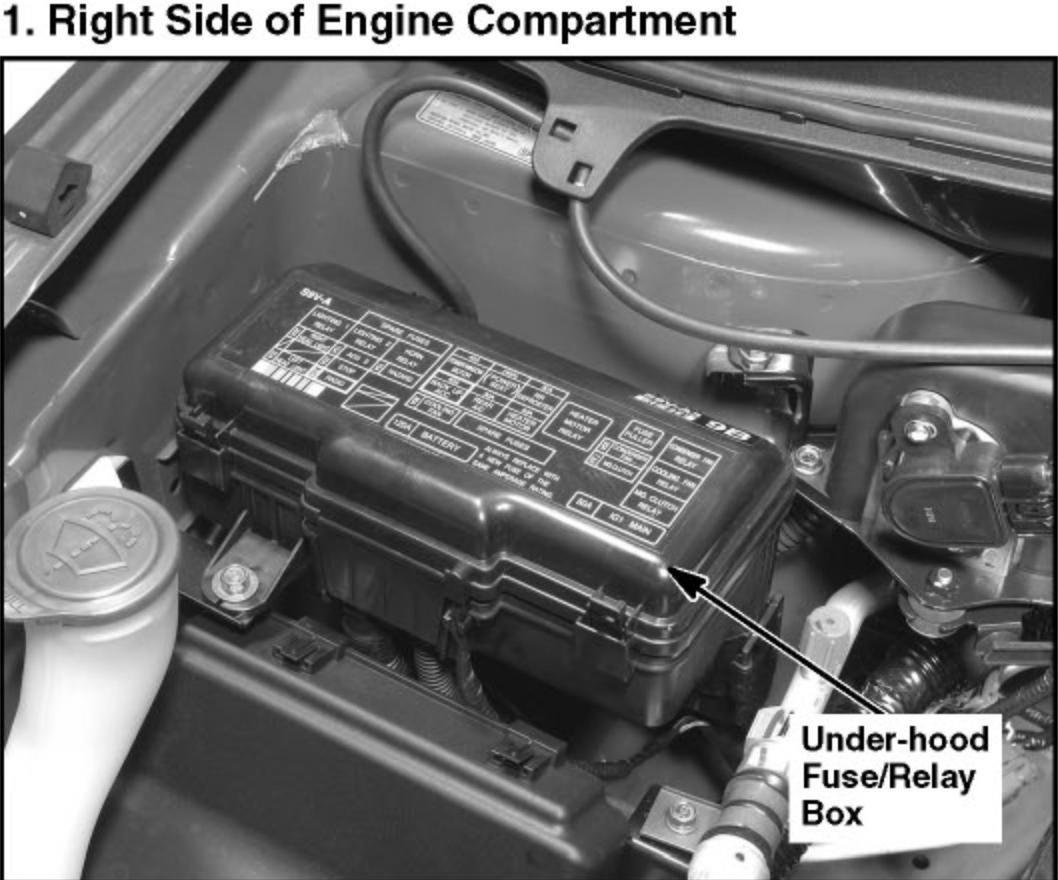

1. Right Side Of Engine Compartment:

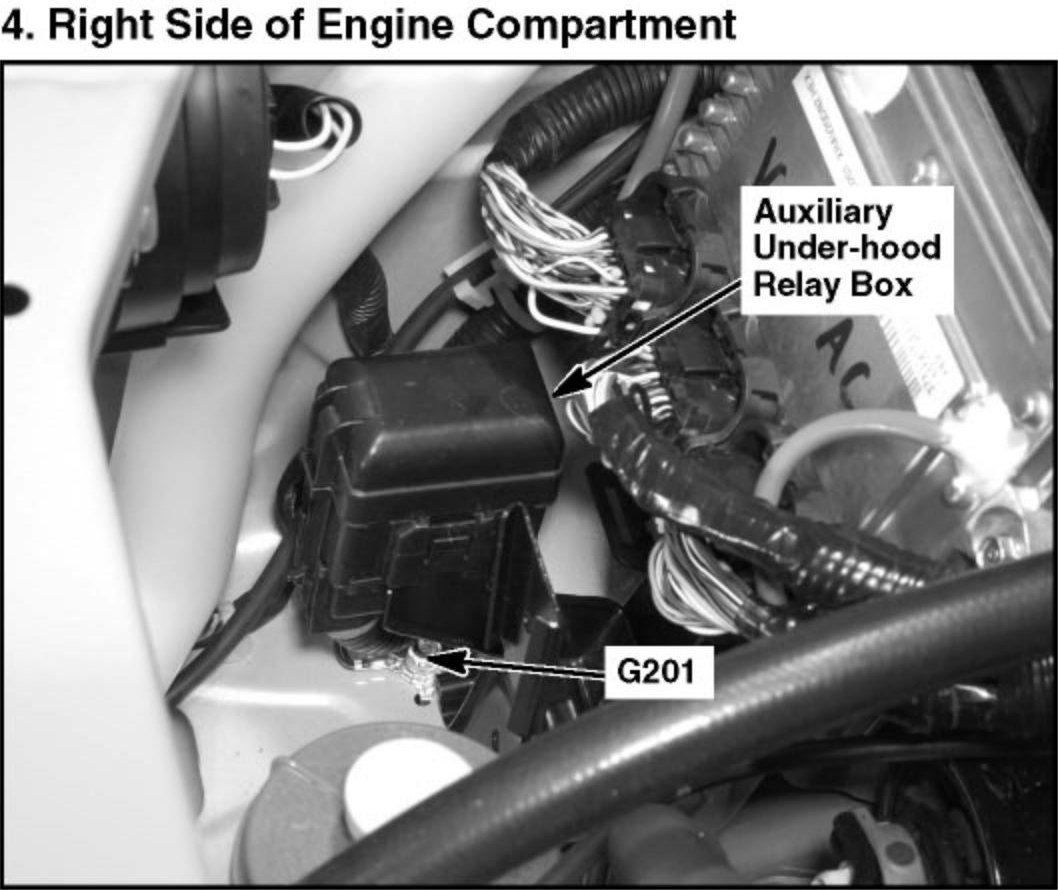

4. Right Side Of Engine Compartment:

62. Under Left Side Of Dash:

128. Behind Right Kick Panel:

Charging System Component Location Index:

Starting System Component Location Index:

Relay And Control Unit Locations Engine Compartment:

Relay And Control Unit Locations Dashboard:

Relay And Control Unit Locations Dashboard:

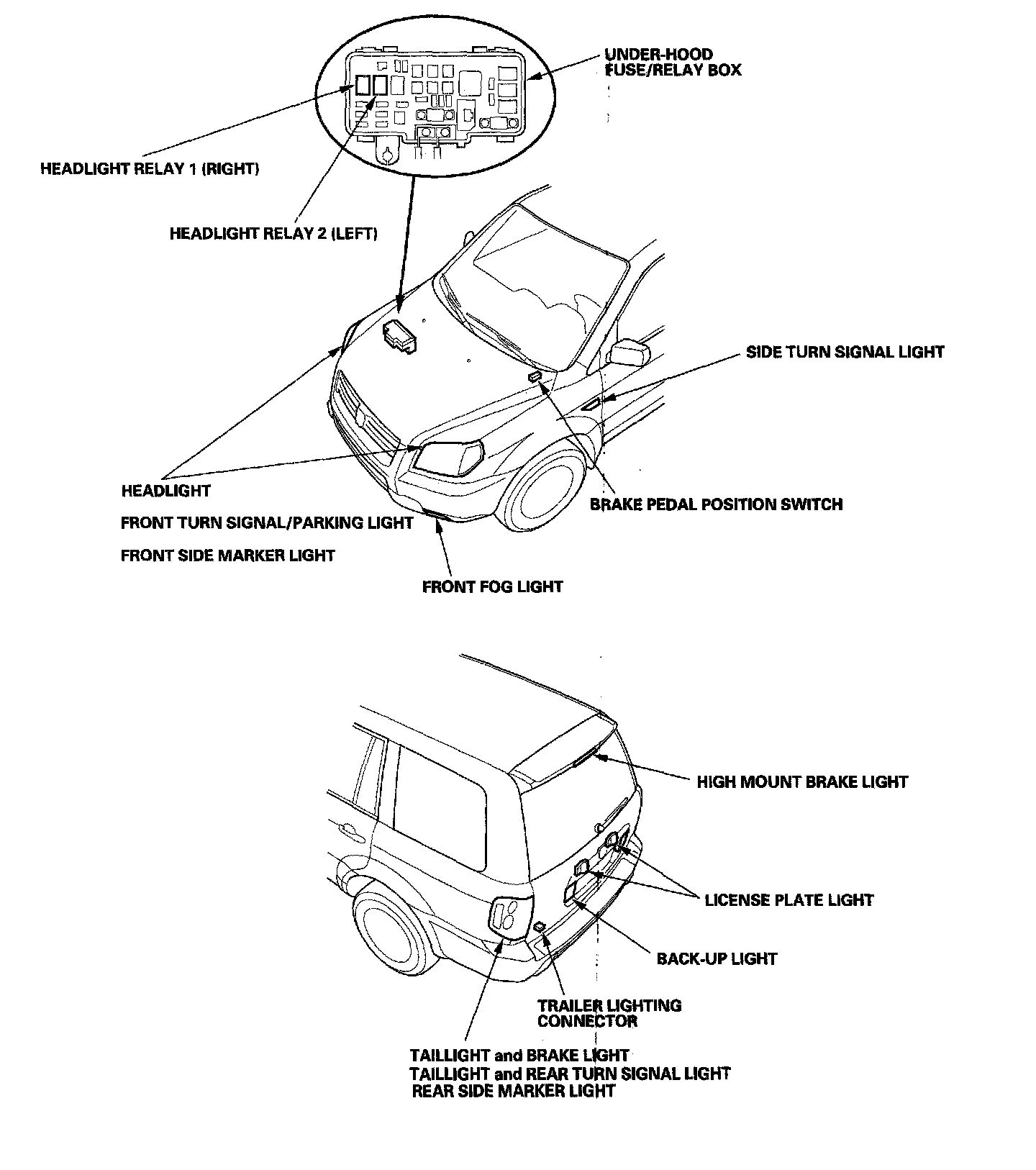

Exterior Lights Component Location Index:

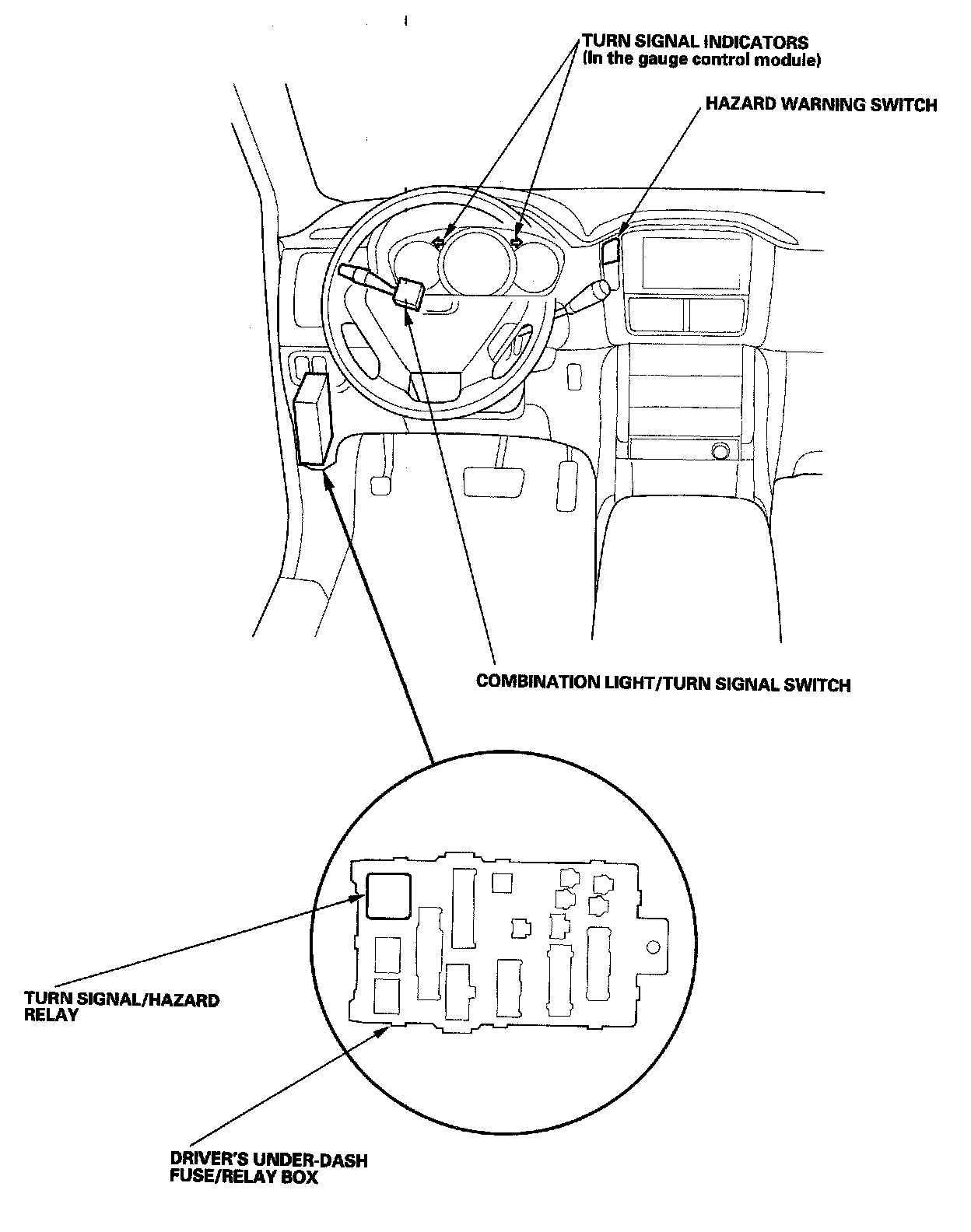

Turn Signal/hazard Flasher Component Location Index:

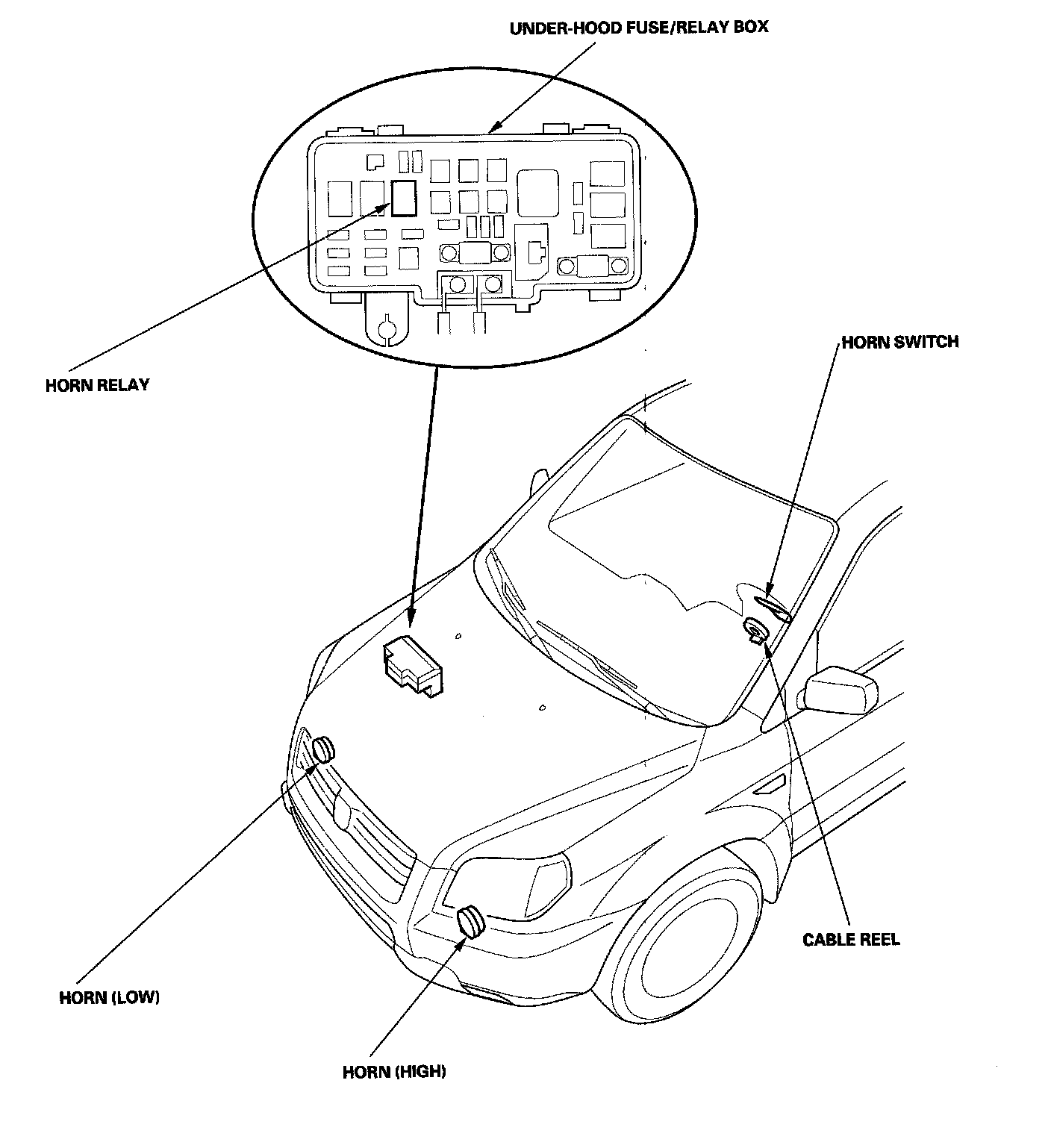

Horns Component Location Index:

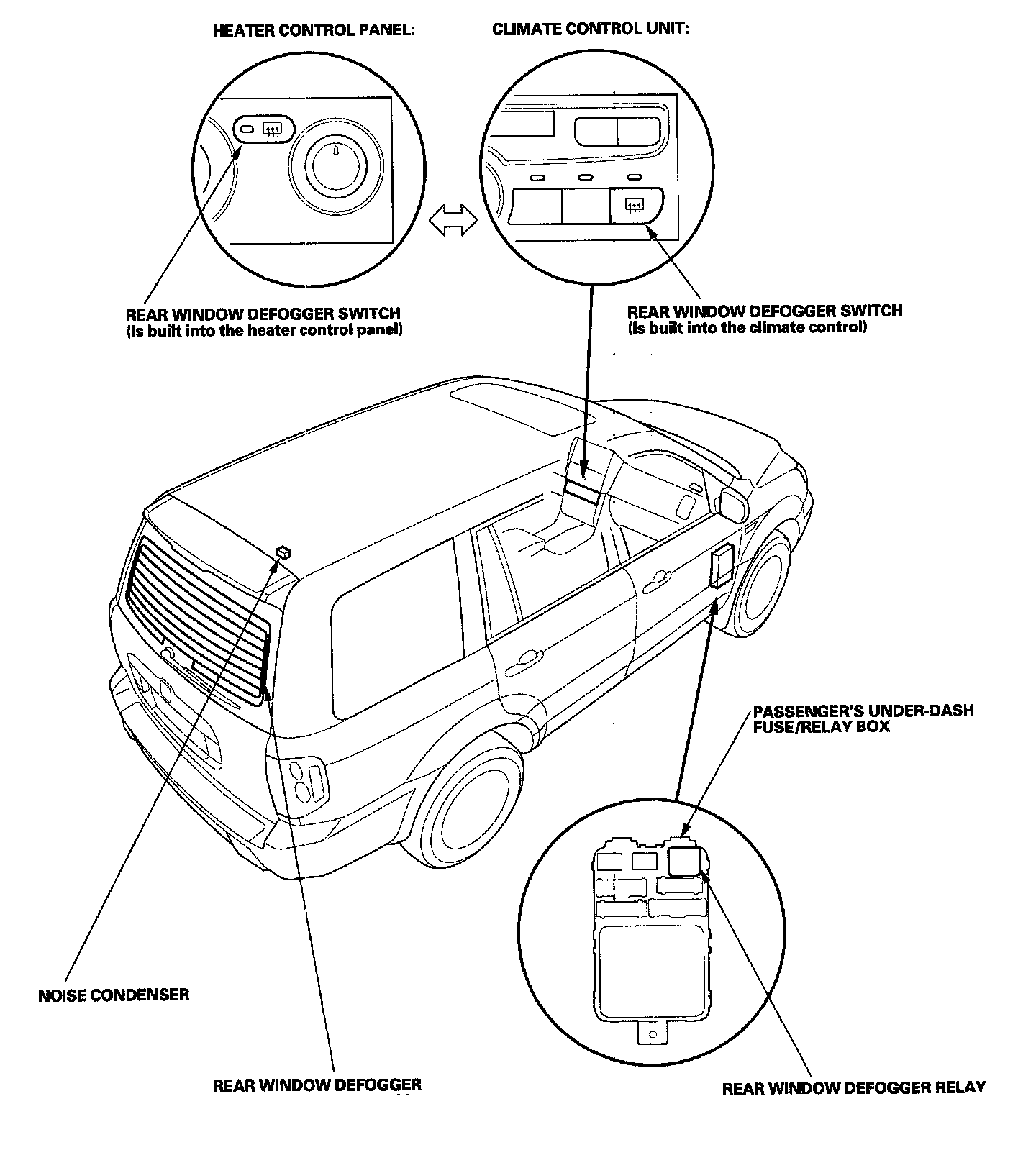

Rear Window Defogger Component Location Index:

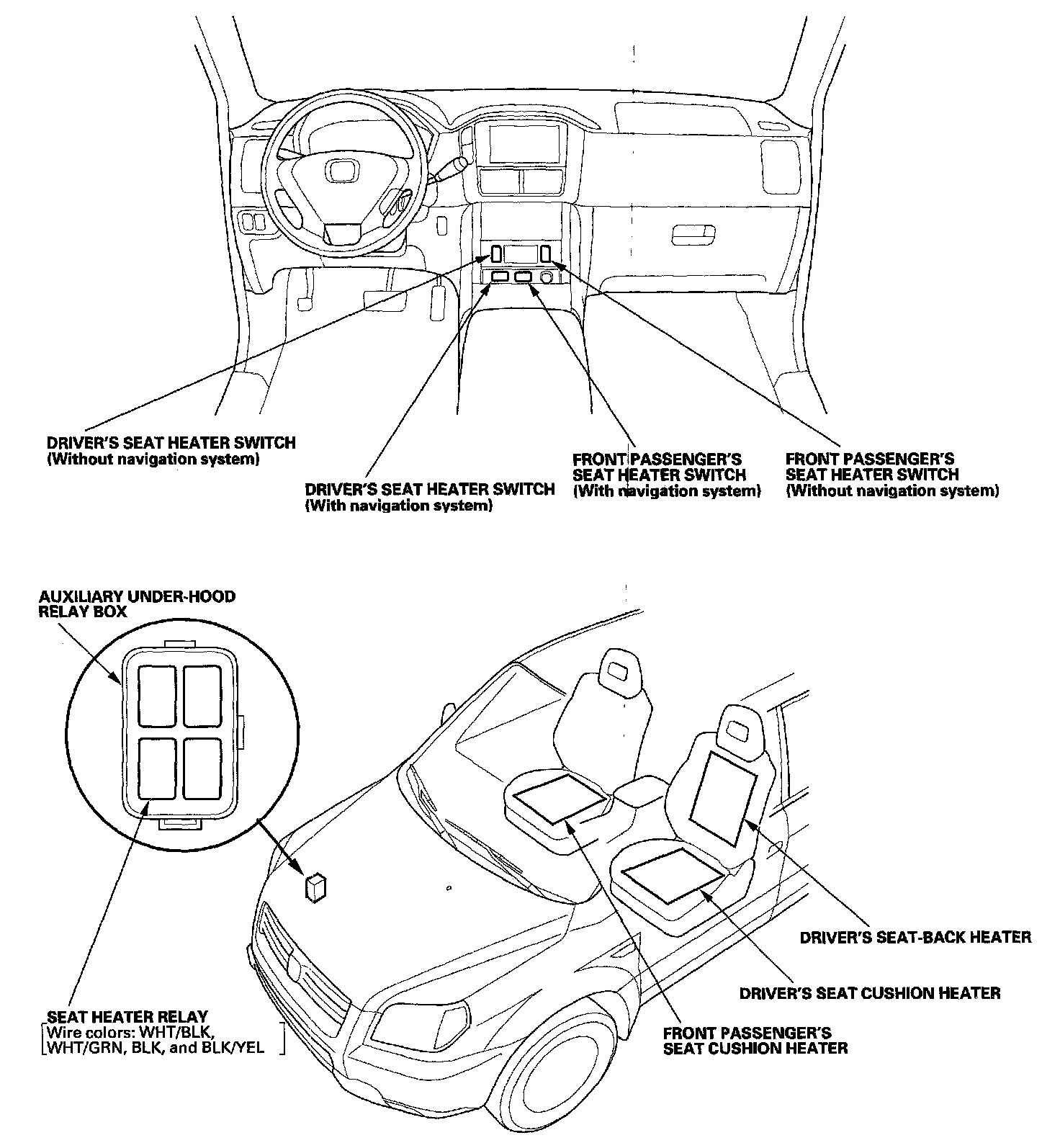

Seat Heaters Component Location Index:

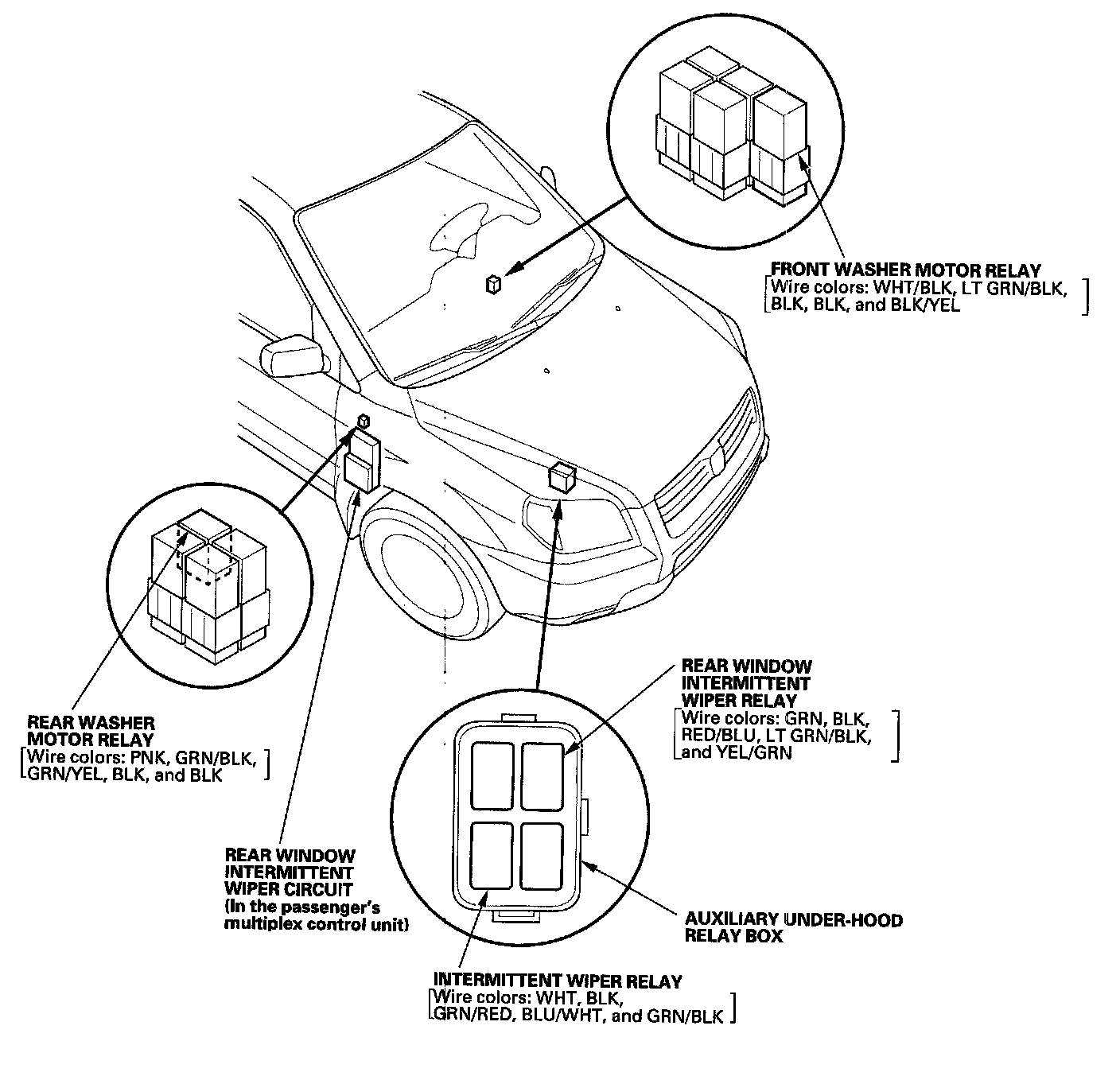

Wipers/Washers Component Location Index:

Power Windows Component Location Index:

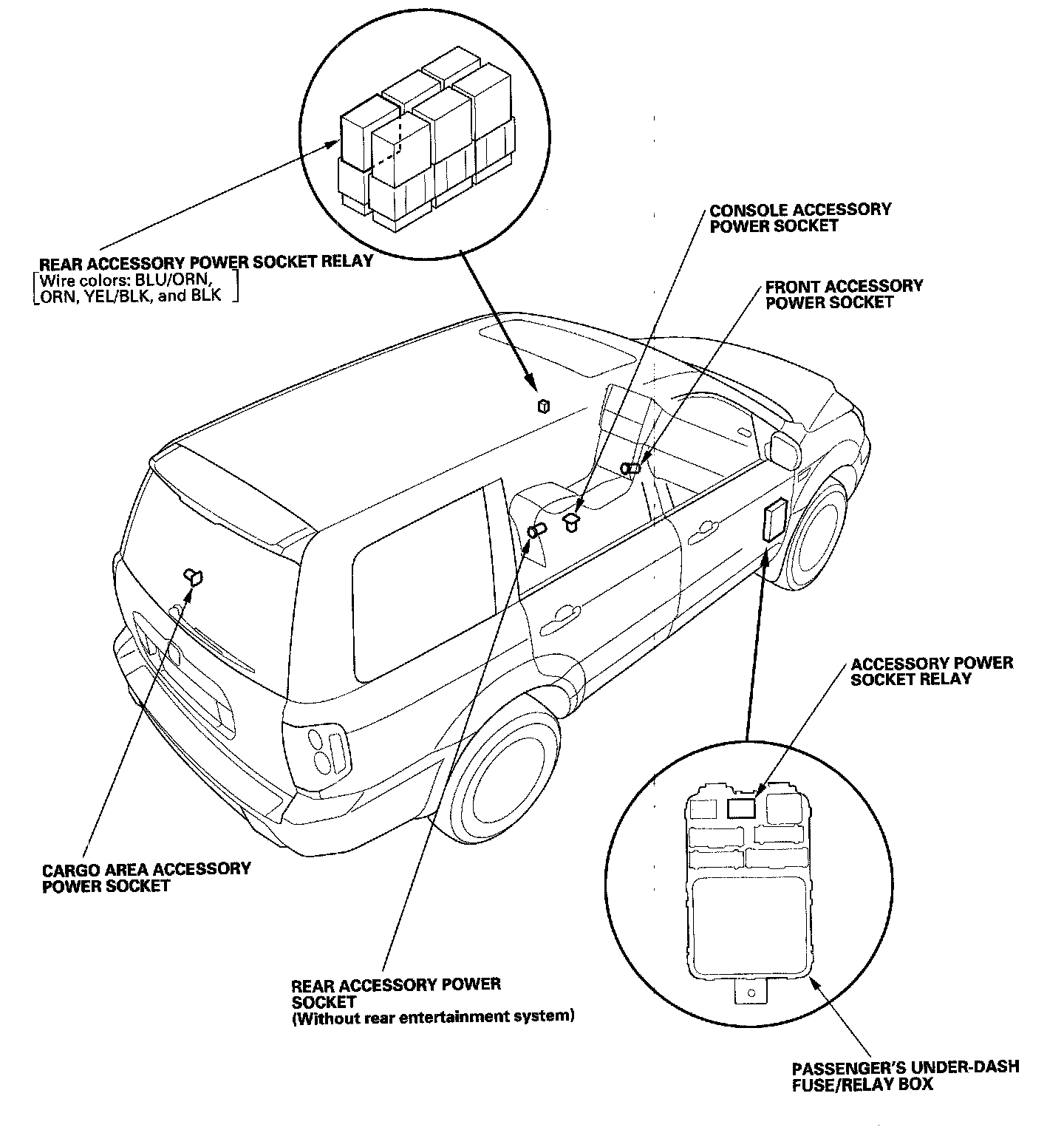

Accessory Power Sockets Component Location Index:
