PCM Electrical Connections

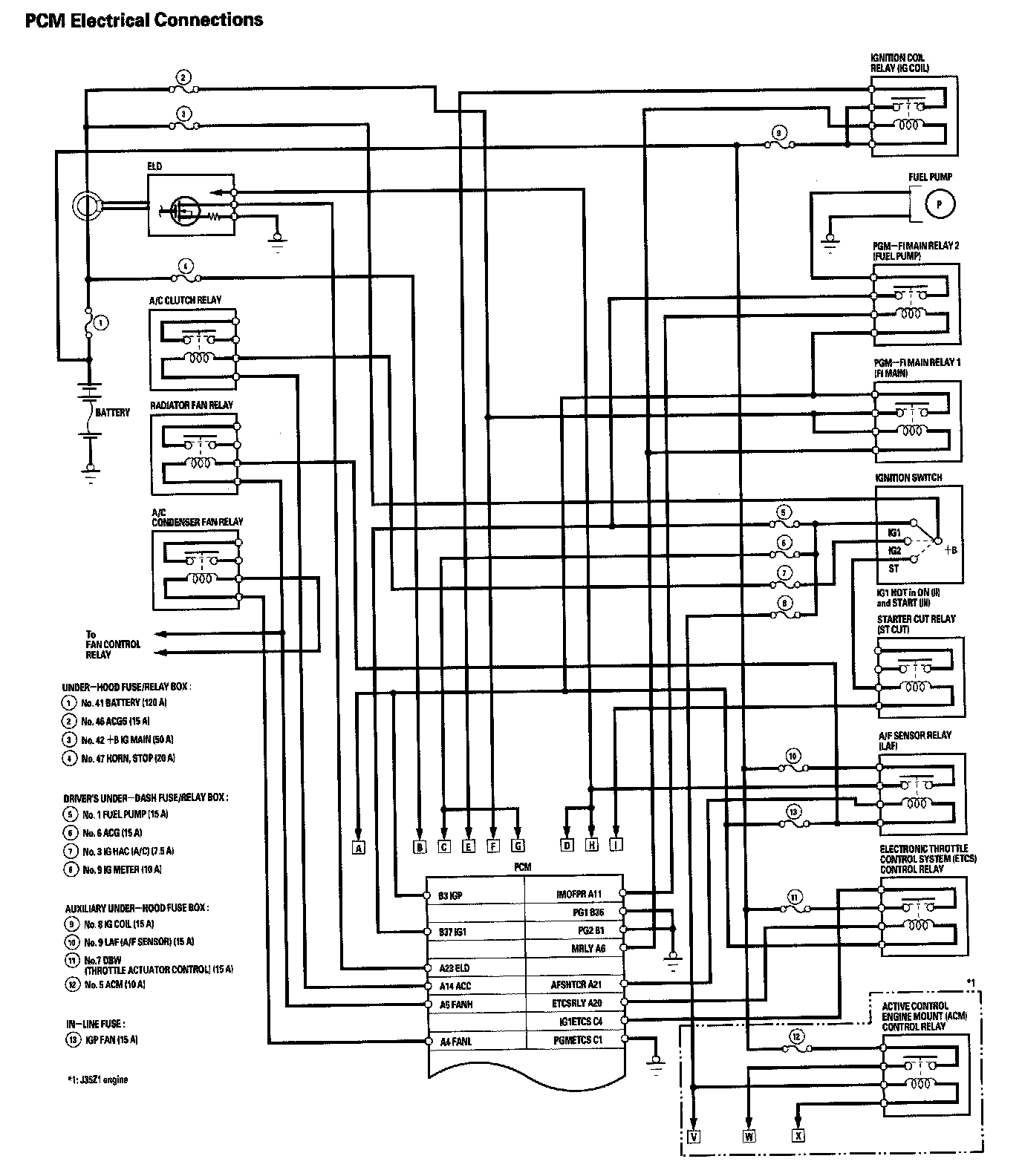

PCM Electrical Connections Part 1:

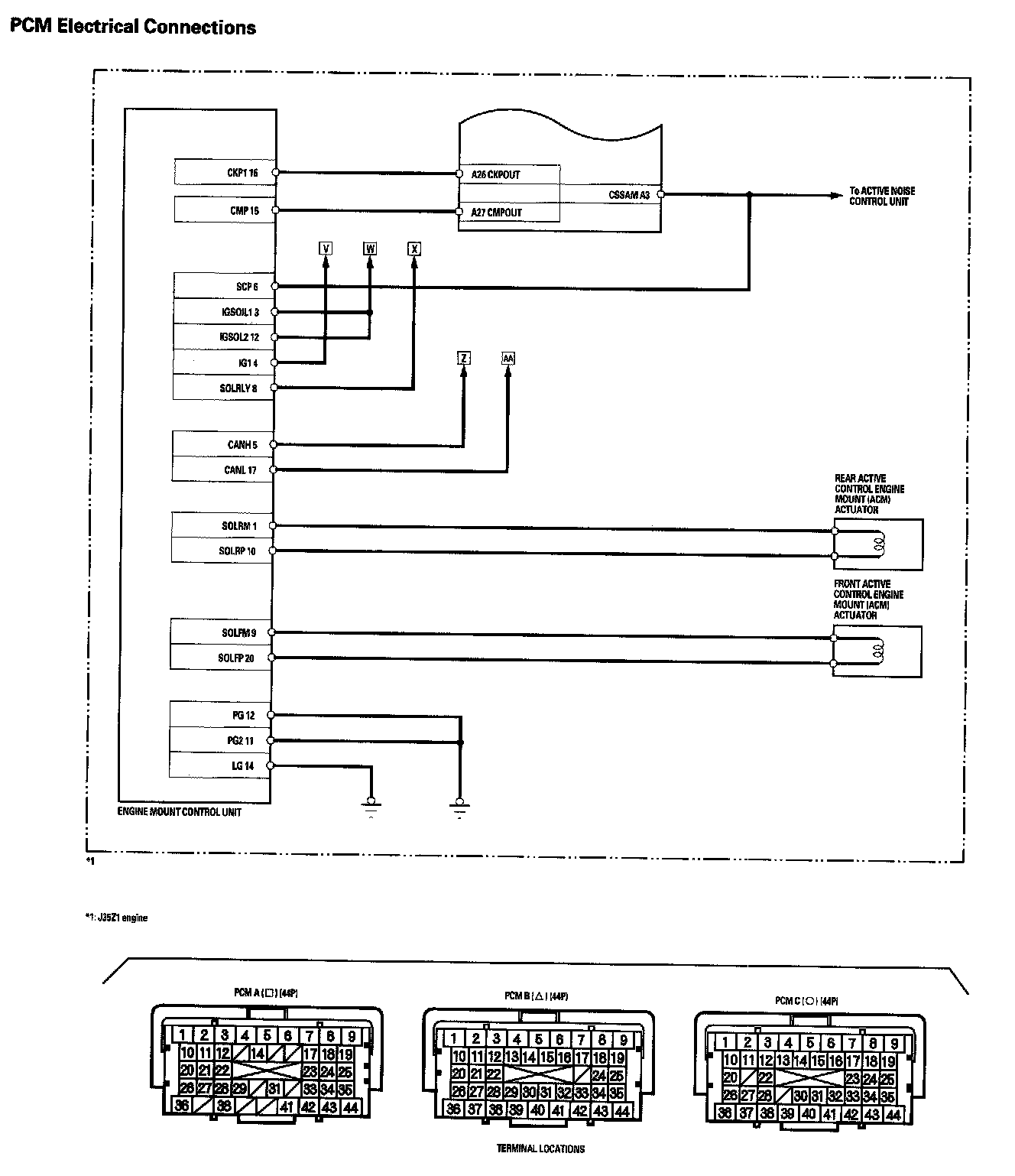

PCM Electrical Connections (Part 2):

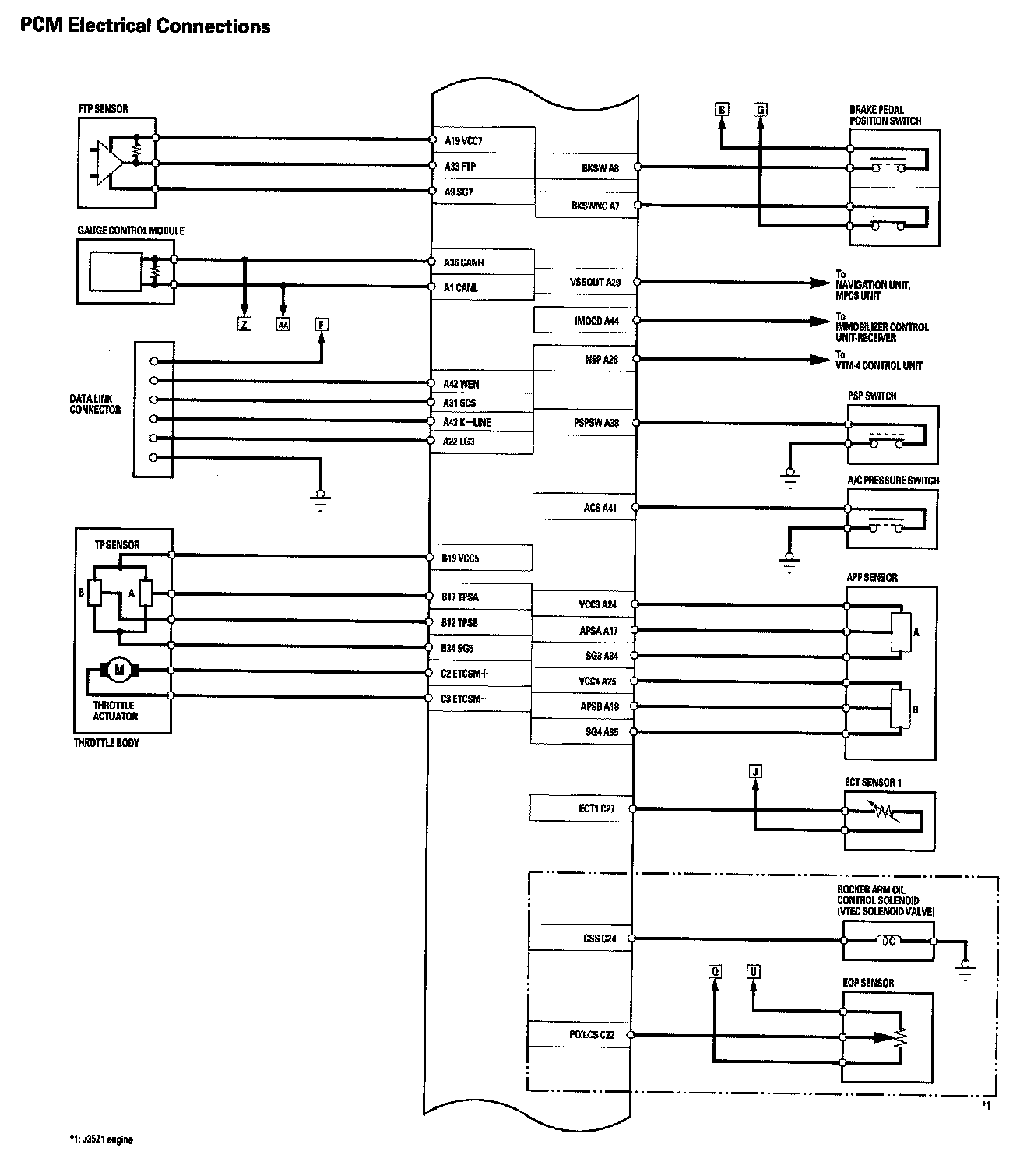

PCM Electrical Connections (Part 3):

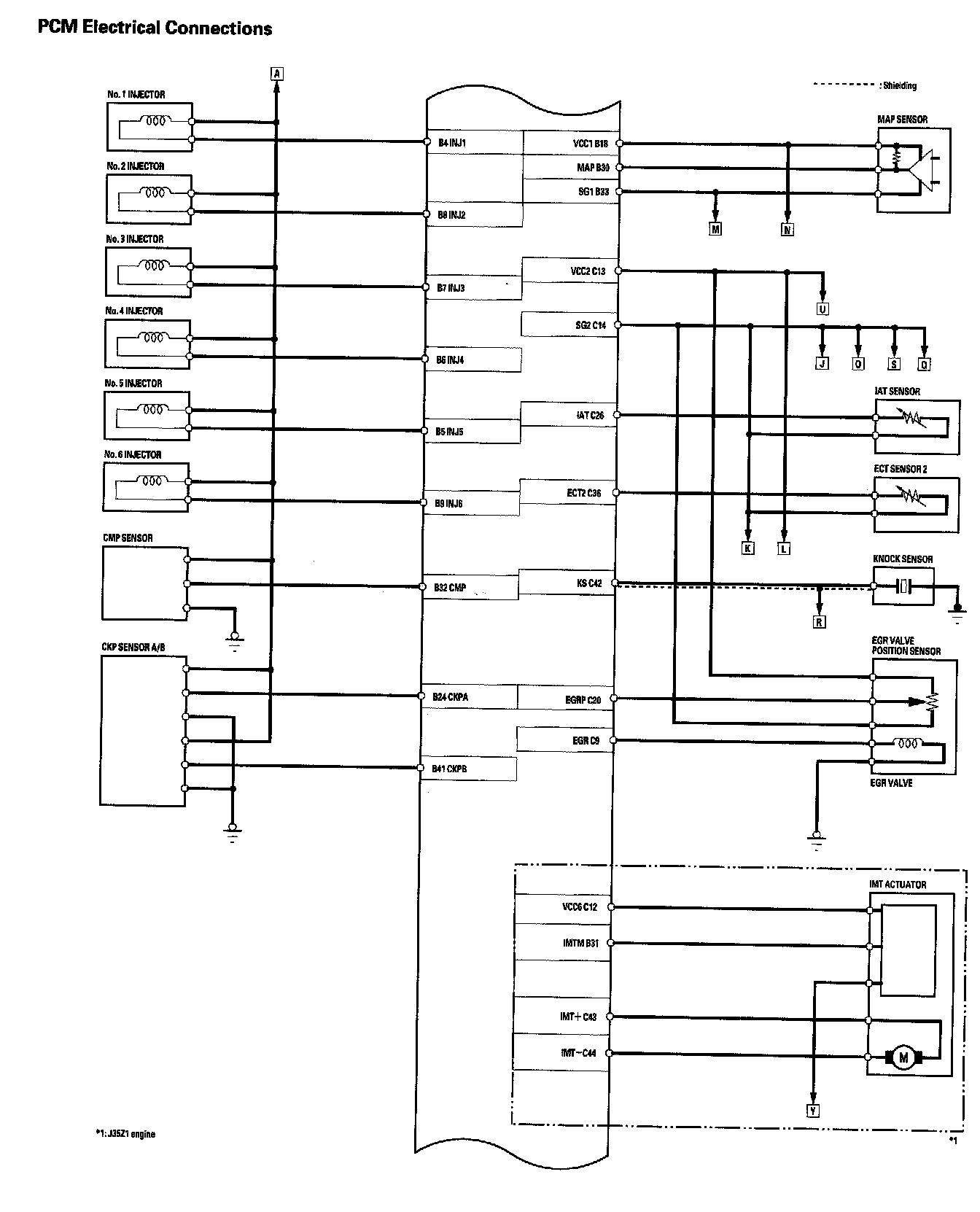

PCM Electrical Connections (Part 4):

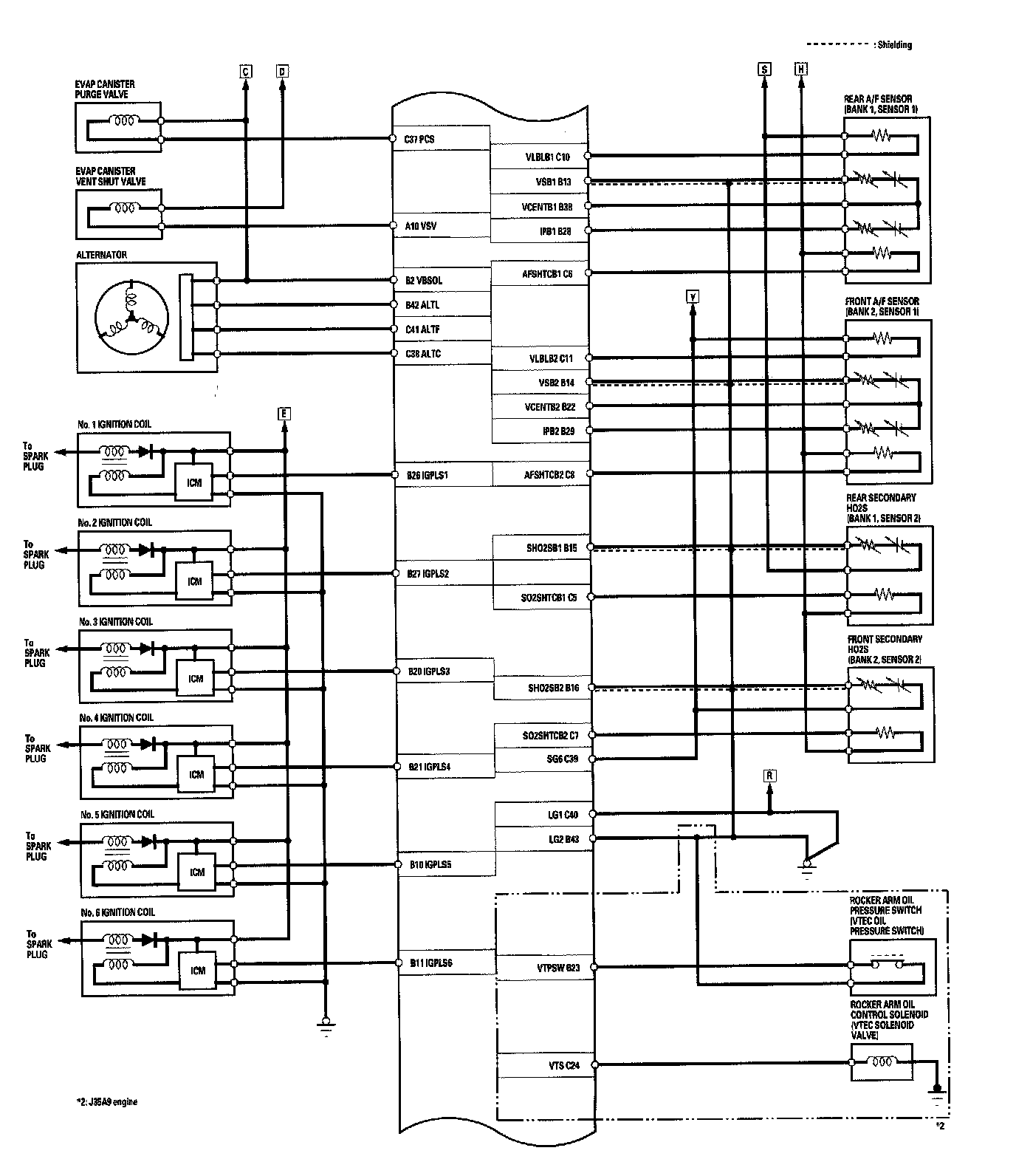

PCM Electrical Connections (Part 5):

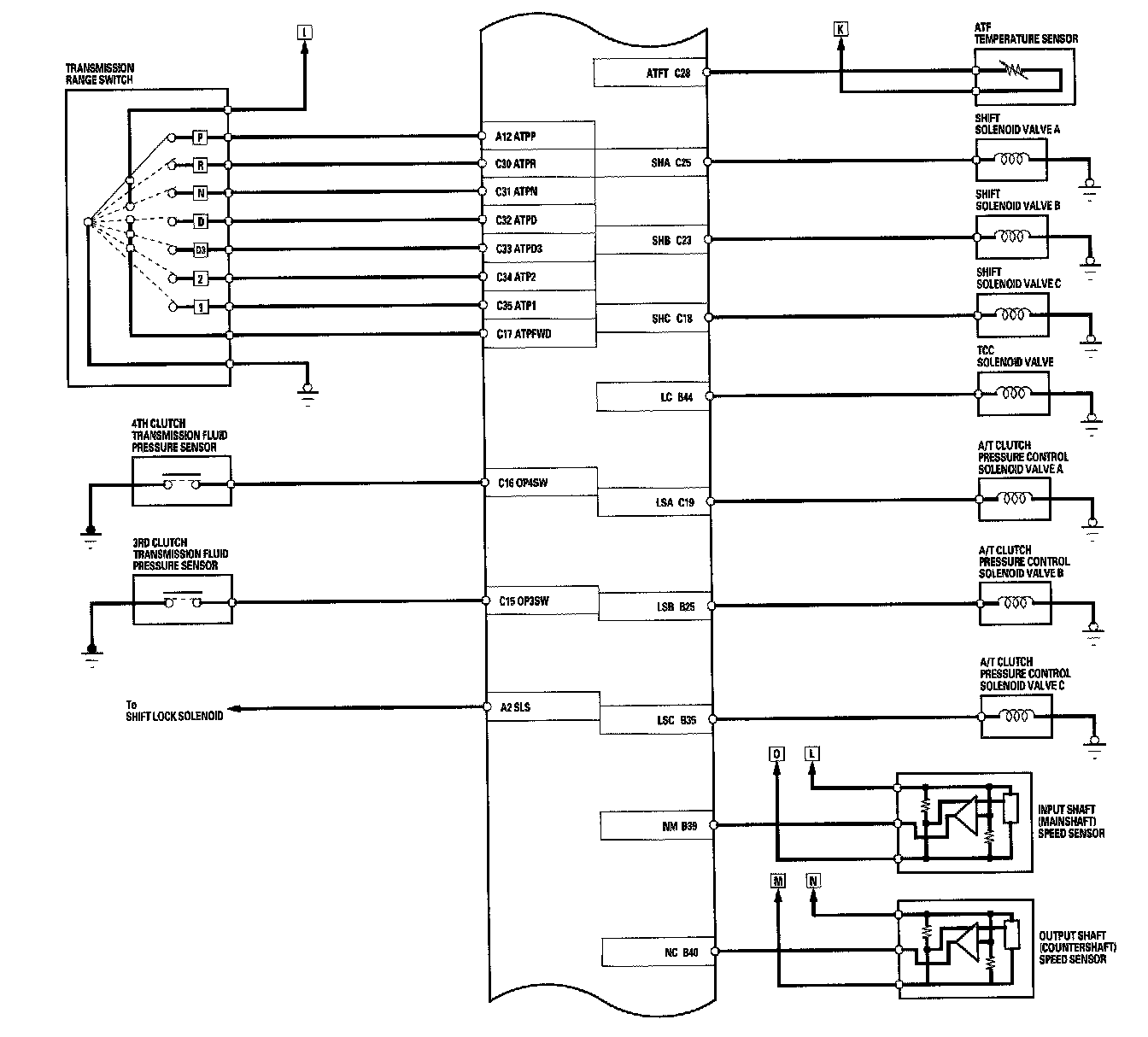

PCM Electrical Connections (Part 6):
