Impact Sensor

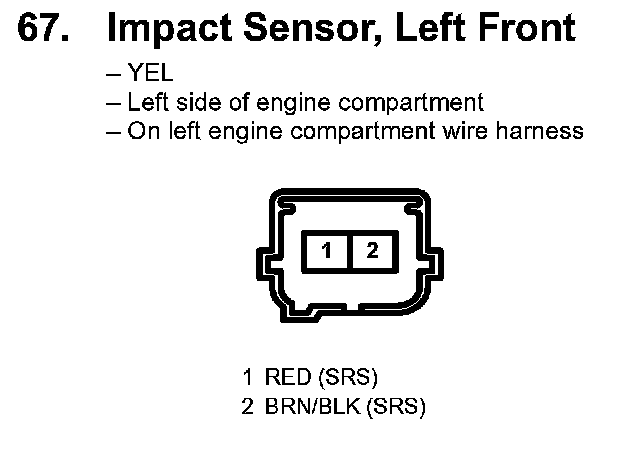

67. Impact Sensor, Left Front:

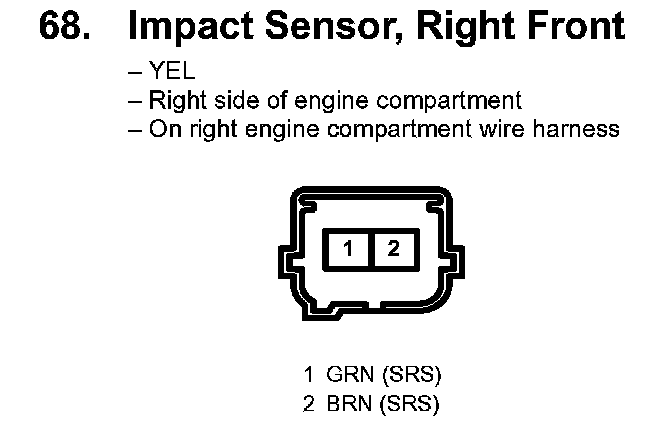

68. Impact Sensor, Right Front:

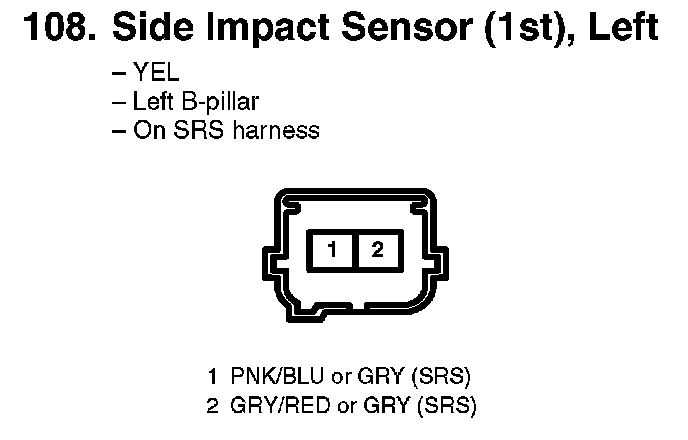

108. Side Impact Sensor (1st), Left:

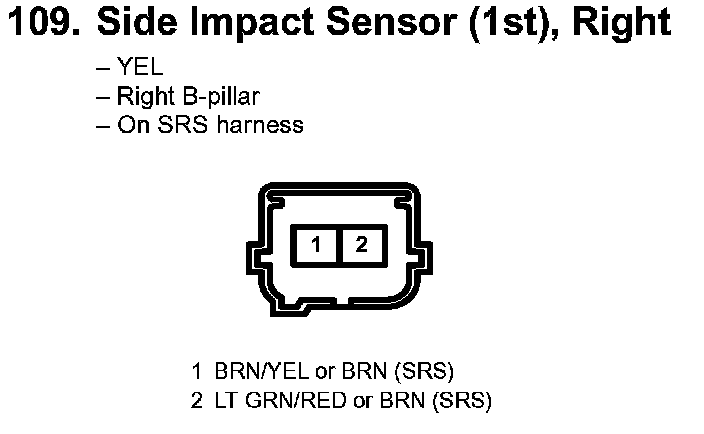

109. Side Impact Sensor (1st), Right:

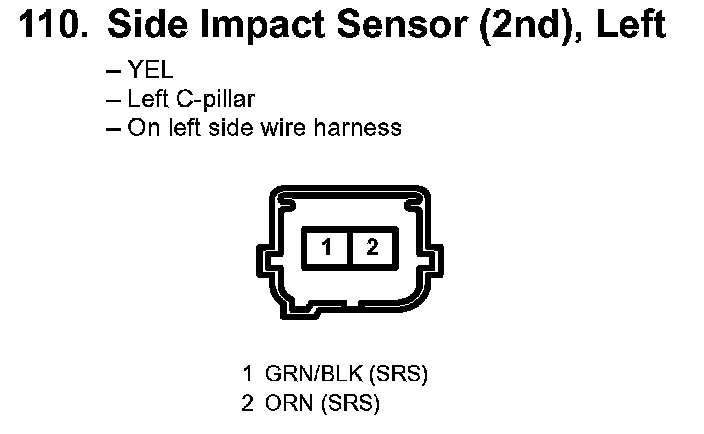

110. Side Impact Sensor (2nd), Left:

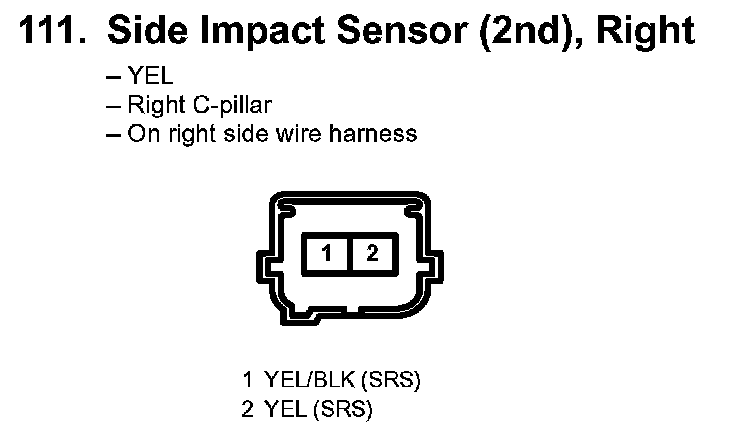

111. Side Impact Sensor (2nd), Right:
