Multiple Junction Connector

287. C208 (Junction Connector) (EX-L: Navigation):

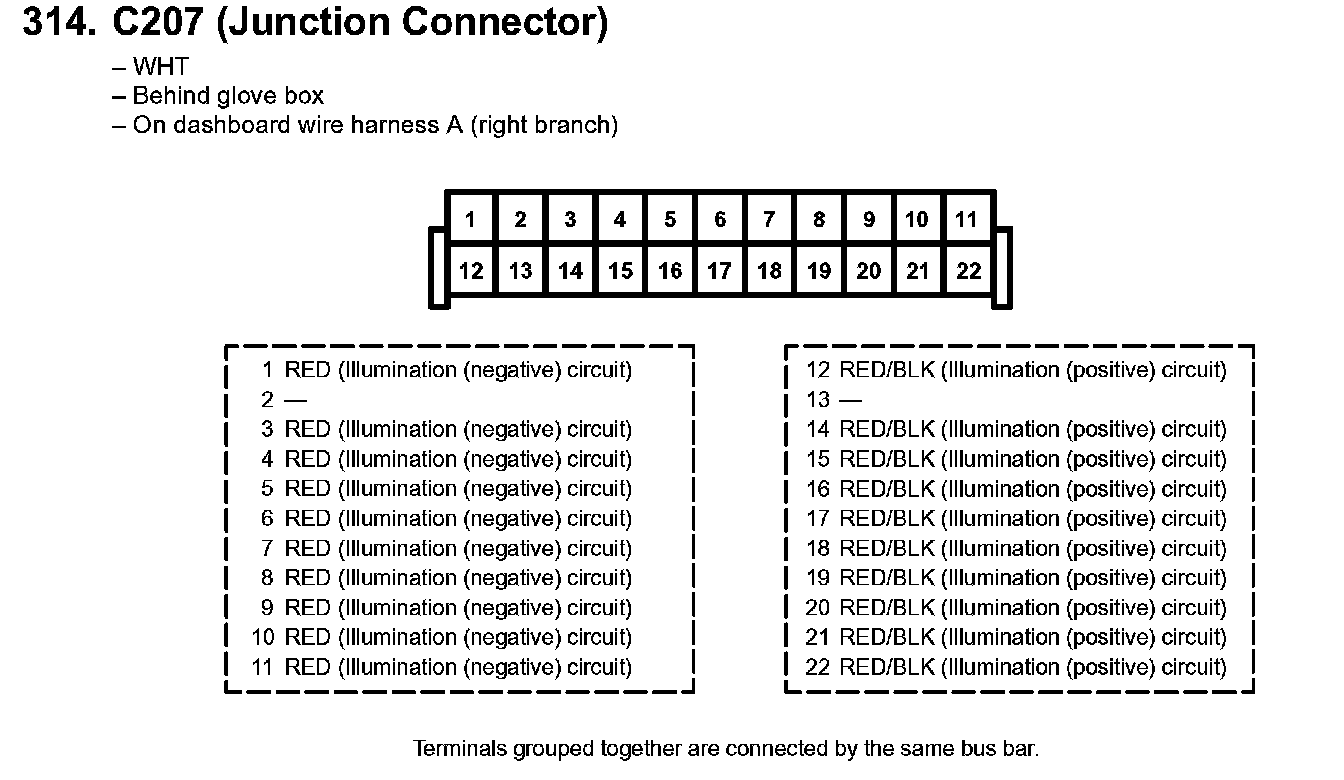

314. C207 (Junction Connector):

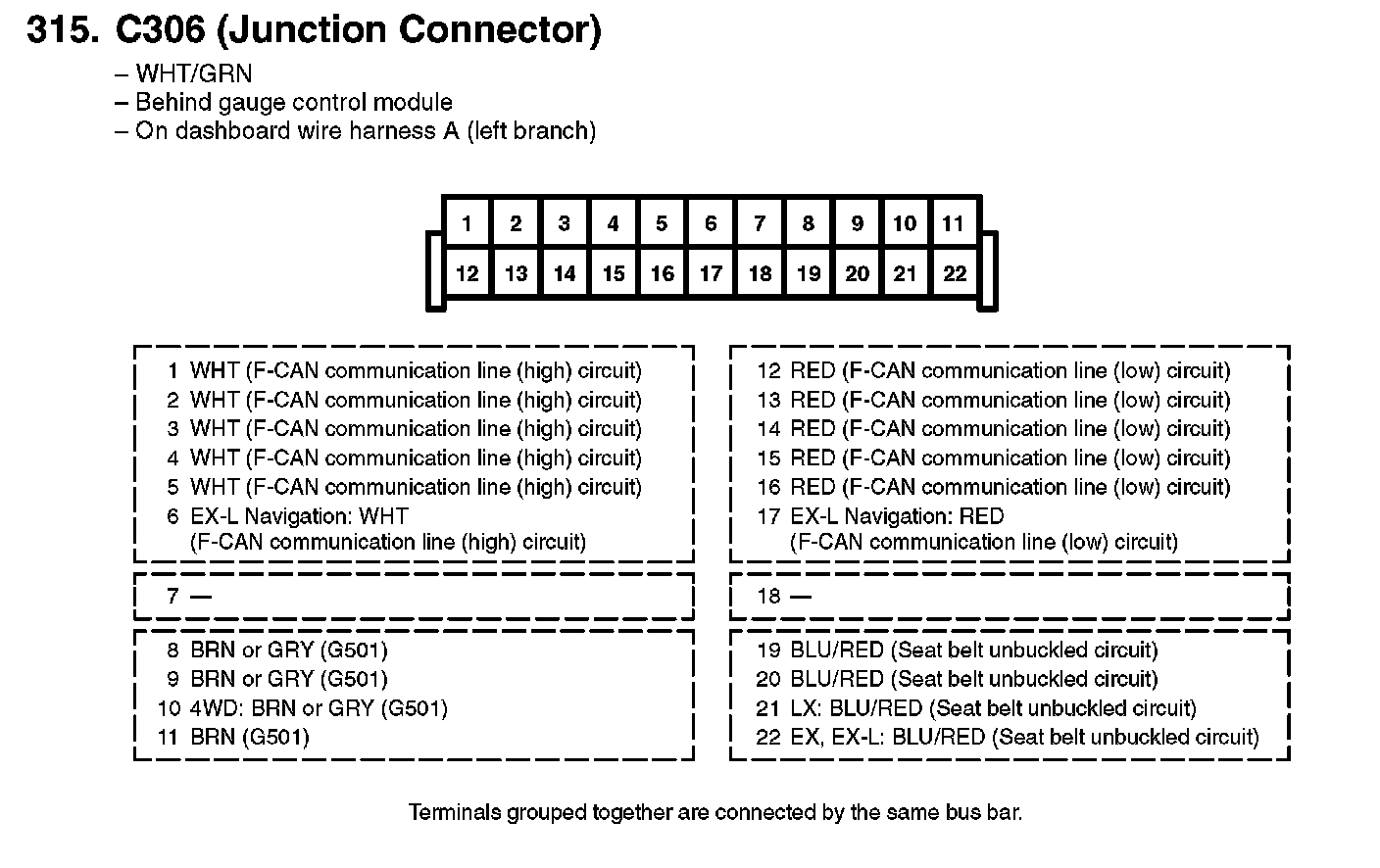

315. C306 (Junction Connector):

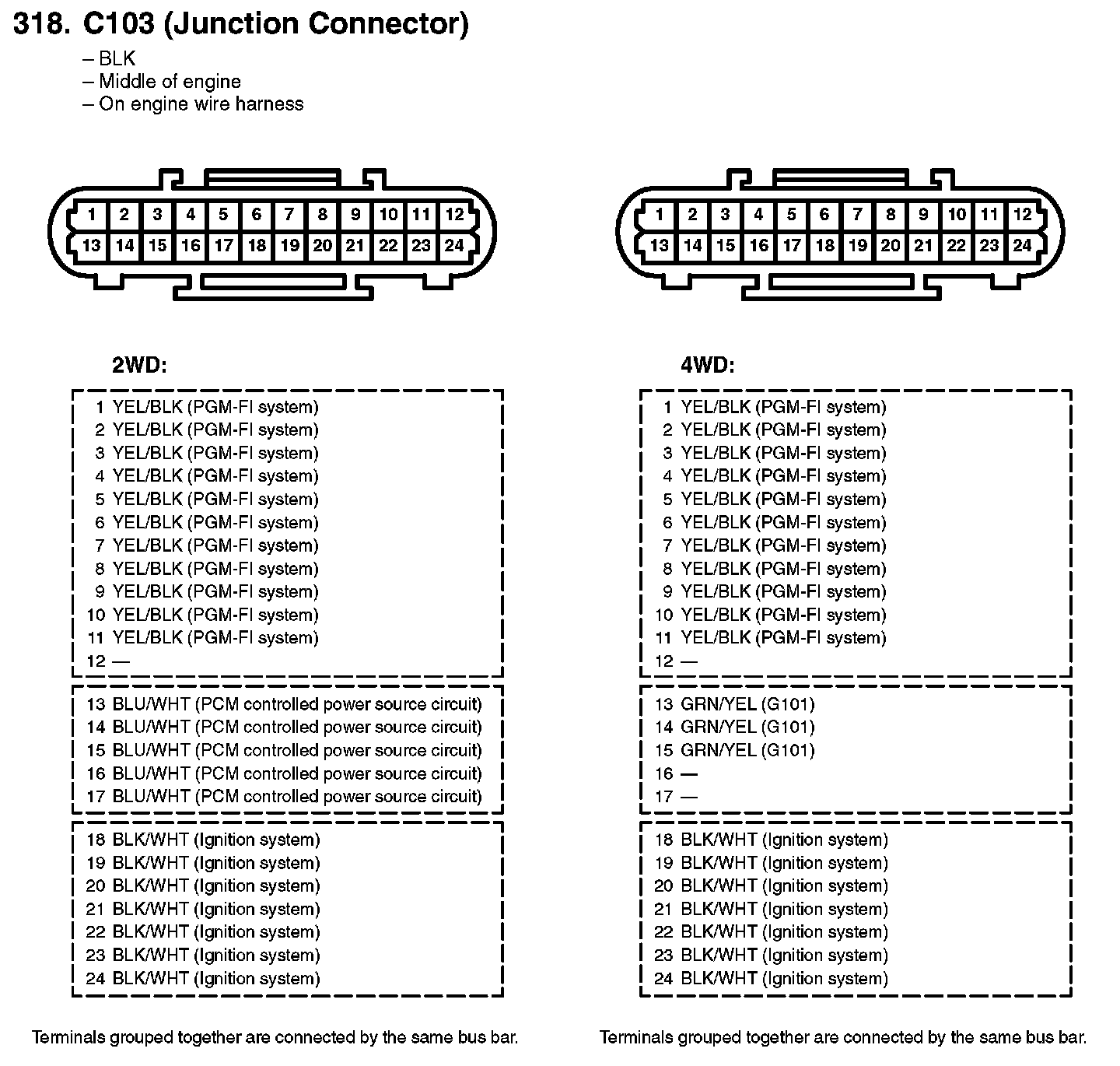

318. C103 (Junction Connector):

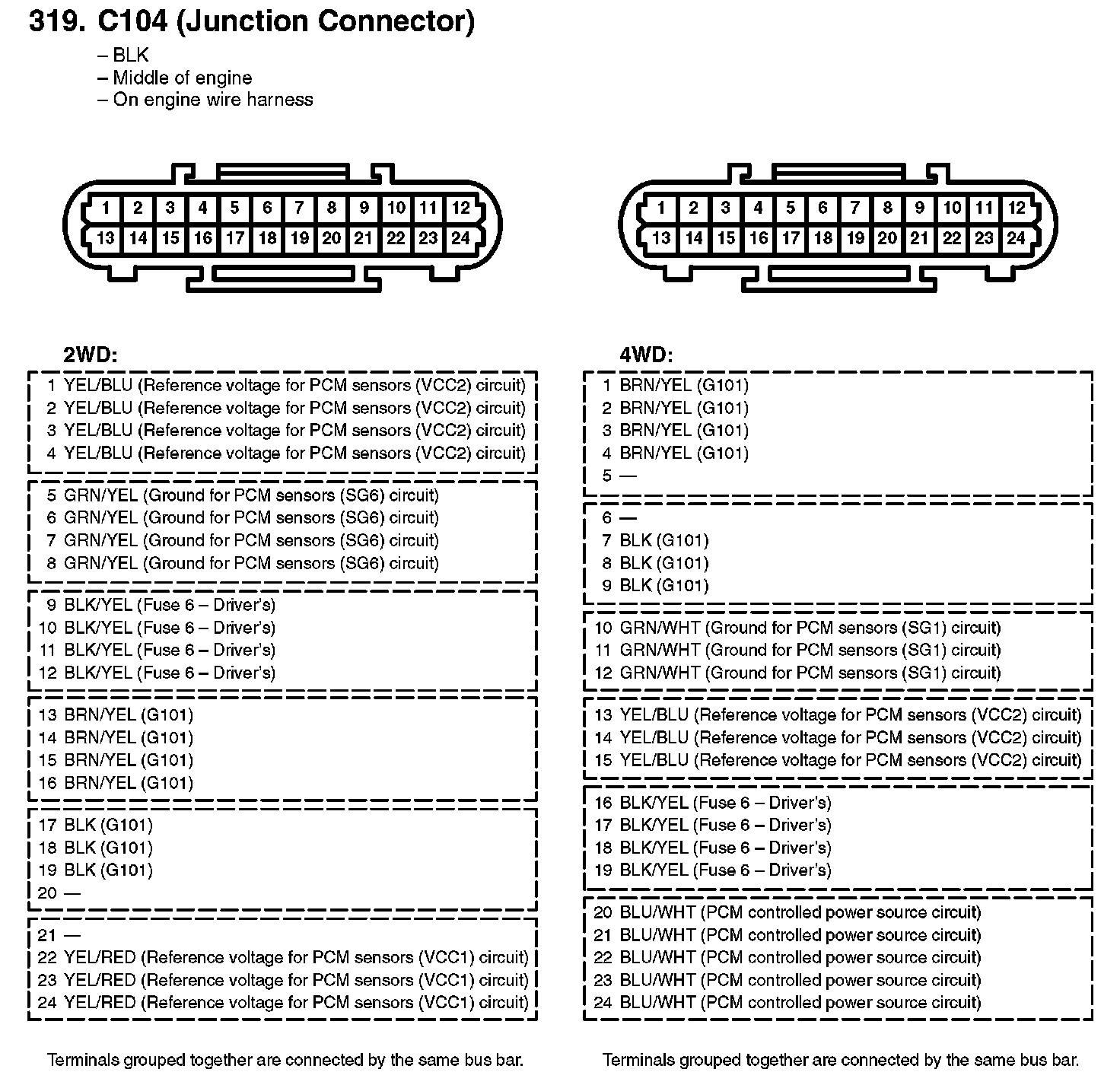

319. C104 (Junction Connector):

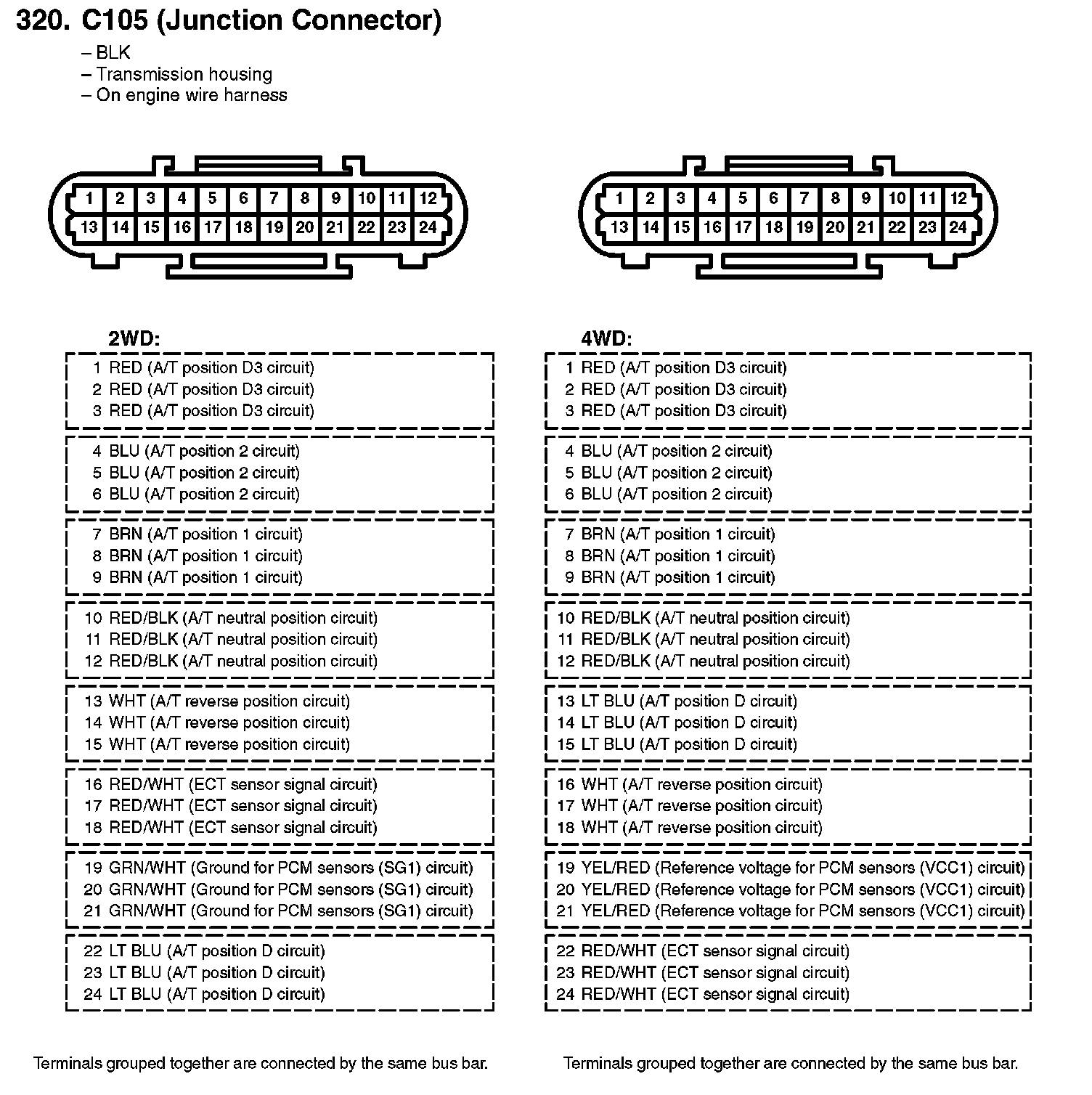

320. C105(Junction Connector):
