Heating/Air Conditioning

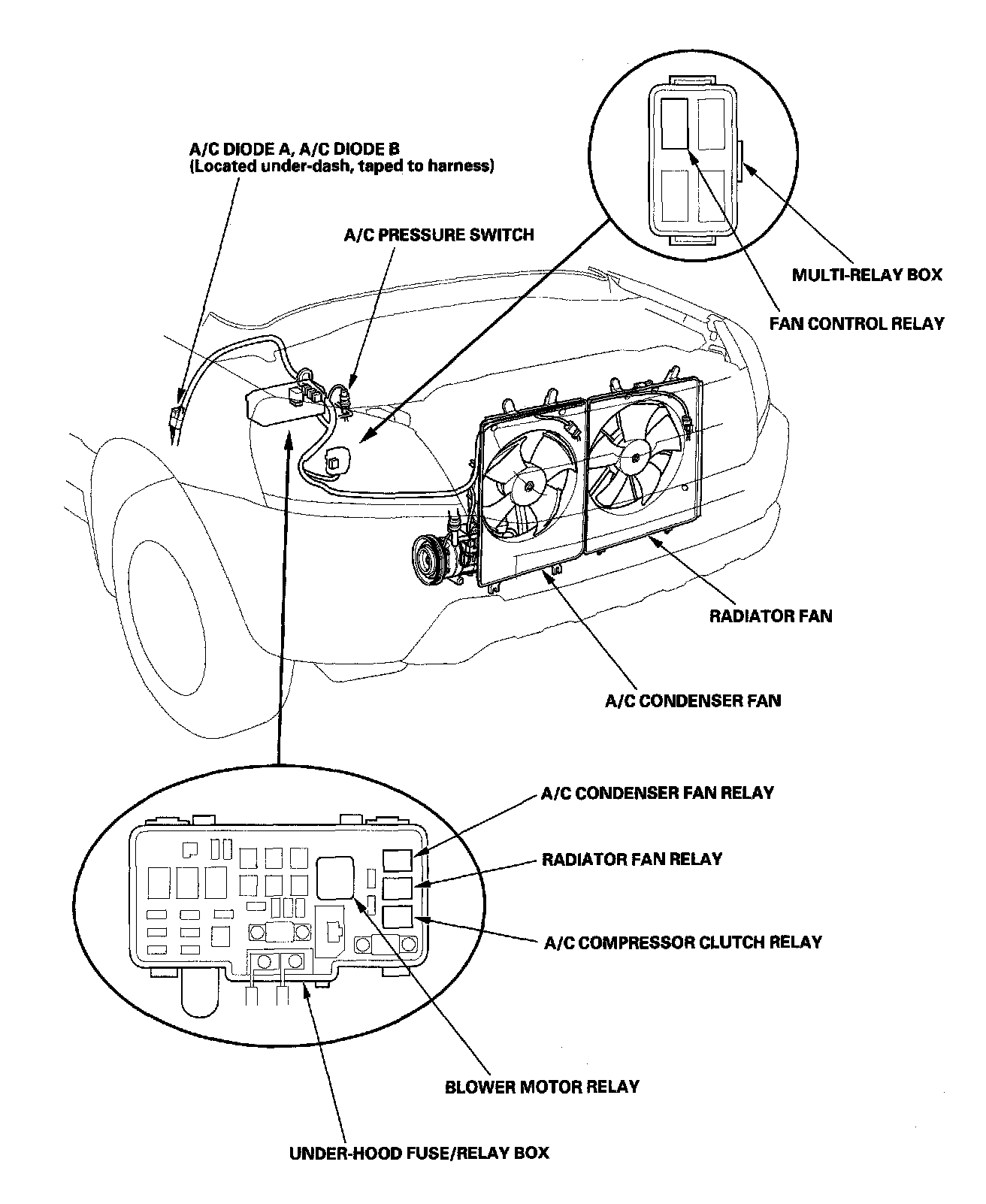

Heating/Air Conditioning - Component Location Index:

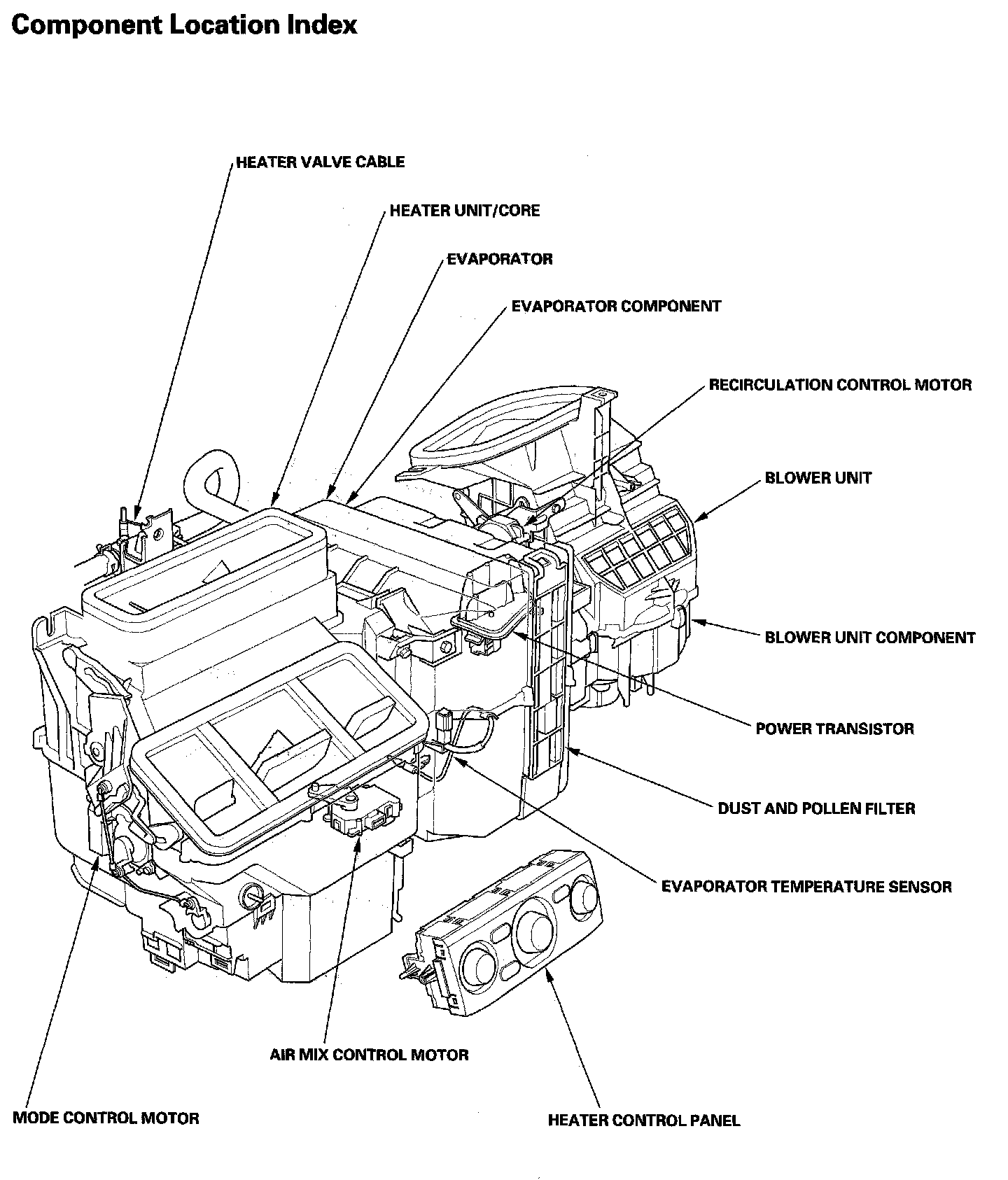

Heating/Air Conditioning - Component Location Index:

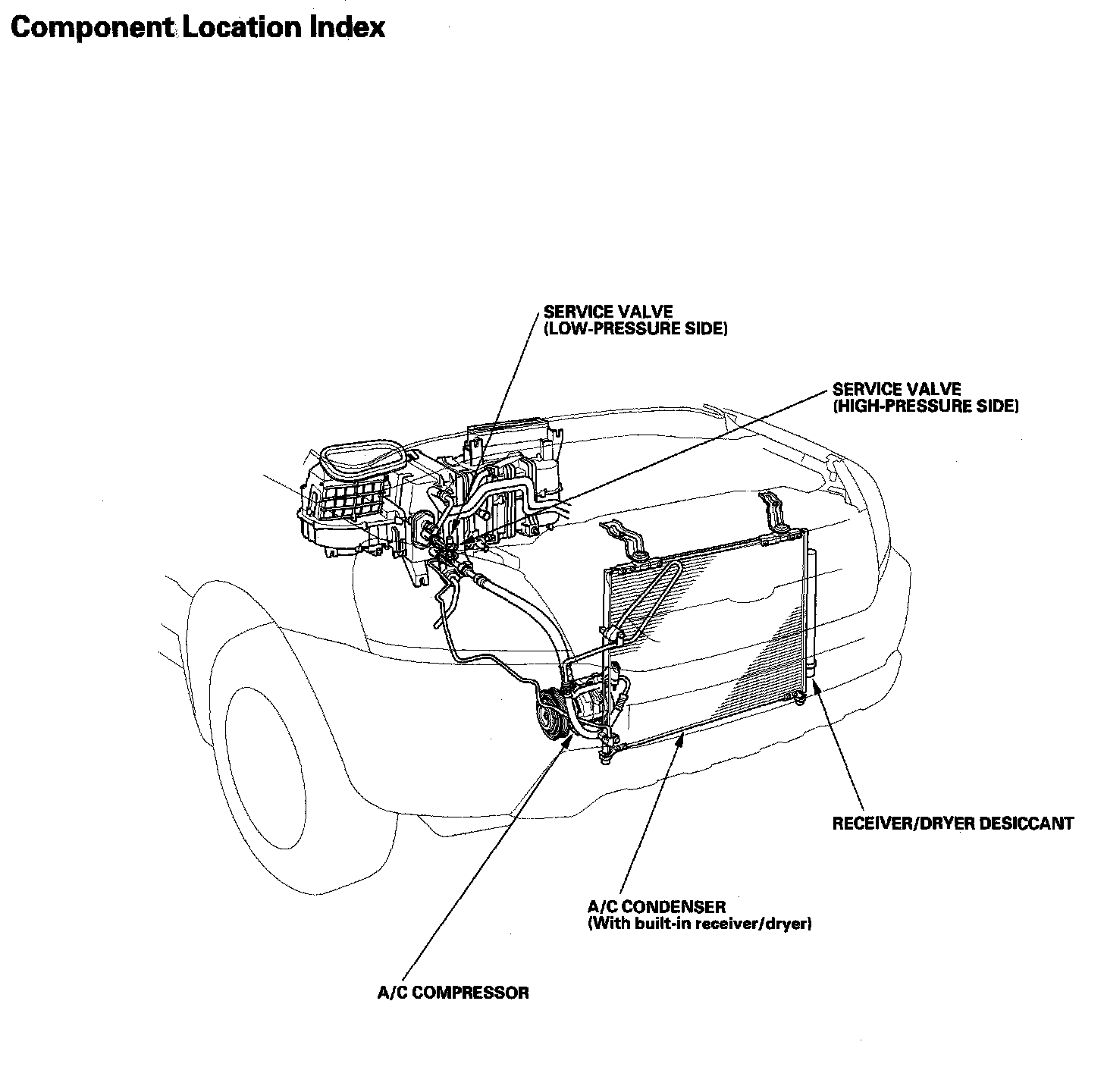

Heating/Air Conditioning-Component Location Index:
