Transfer Case

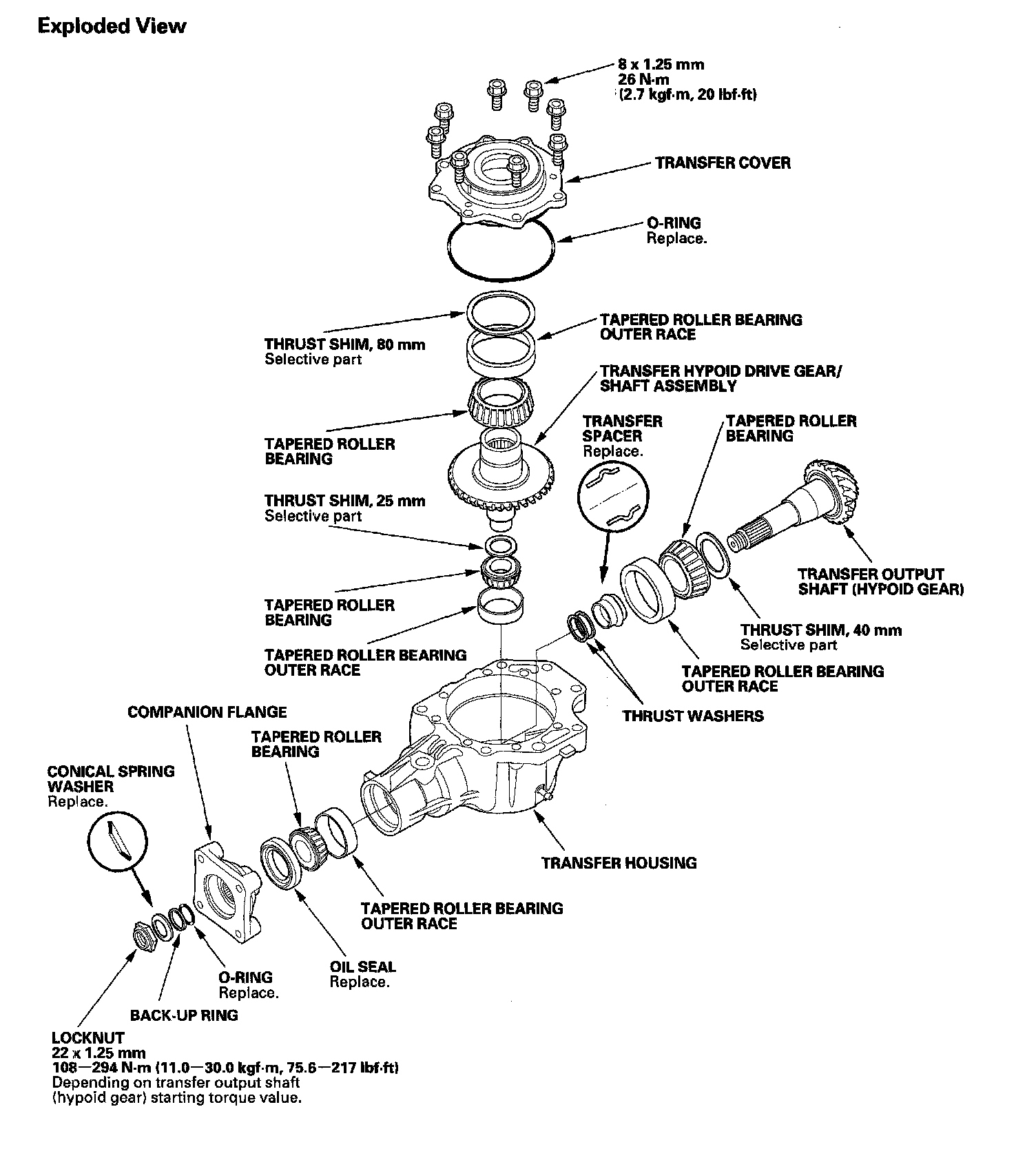

Transfer Assembly

Transfer Assembly:





For information regarding Transfer Assembly Overhaul Specifications, please refer to Service and Repair, Procedures. Service and Repair
