DTC P0706: Open in Transmission Range Switch Circuit: Notes

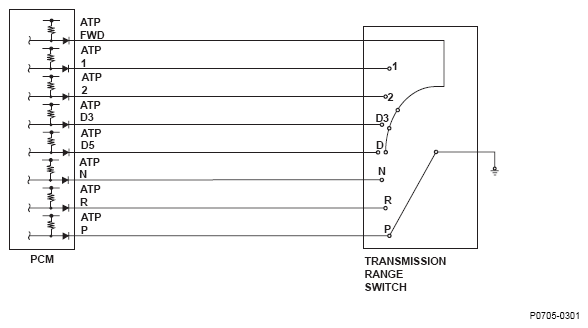

Fig 1: Transmission Range Switch Circuit Diagram

TRANSMISSION RANGE SWITCH CONTACT POINT INPUT MATRIX

Shift lever position	Input per switch
	P	R	N	D5	D3	2	1	FWD
P	◦	X	X	X	X	X	X	X
R	X	◦	X	X	X	X	X	X
N	X	X	◦	X	X	X	X	X
D	X	X	X	◦	X	X	X	◦
D3	X	X	X	X	◦	X	X	◦
2	X	X	X	X	X	◦	X	◦
1	X	X	X	X	X	X	◦	X
◦ Closed X: Open
