Relay Control Module Input Test
NOTE:
Check the No. 22 (120 A), No. 23 (50 A), No. 15 (40 A) fuse in the under-hood fuse/relay box before troubleshooting.
- Before troubleshooting the multiplex integrated control system, troubleshoot the B-CAN System Diagnosis Test mode A (see Troubleshooting - B-CAN System Diagnosis Test Mode A ).
- Turn the ignition switch OFF.
- Check the No. 7 (7.5 A) fuse in the under-hood fuse/relay box.
- Remove the underhood fuse/relay box under cover (see REMOVAL AND INSTALLATION ).
- Disconnect the underhood fuse/relay box connector J (10P).
- Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 7.
- Reconnect the connector to the underhood fuse/relay box, and make these input tests at the connector.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the relay control module must be faulty, replace the underhood fuse/relay box.TEST CONDITION (6 OF 6)

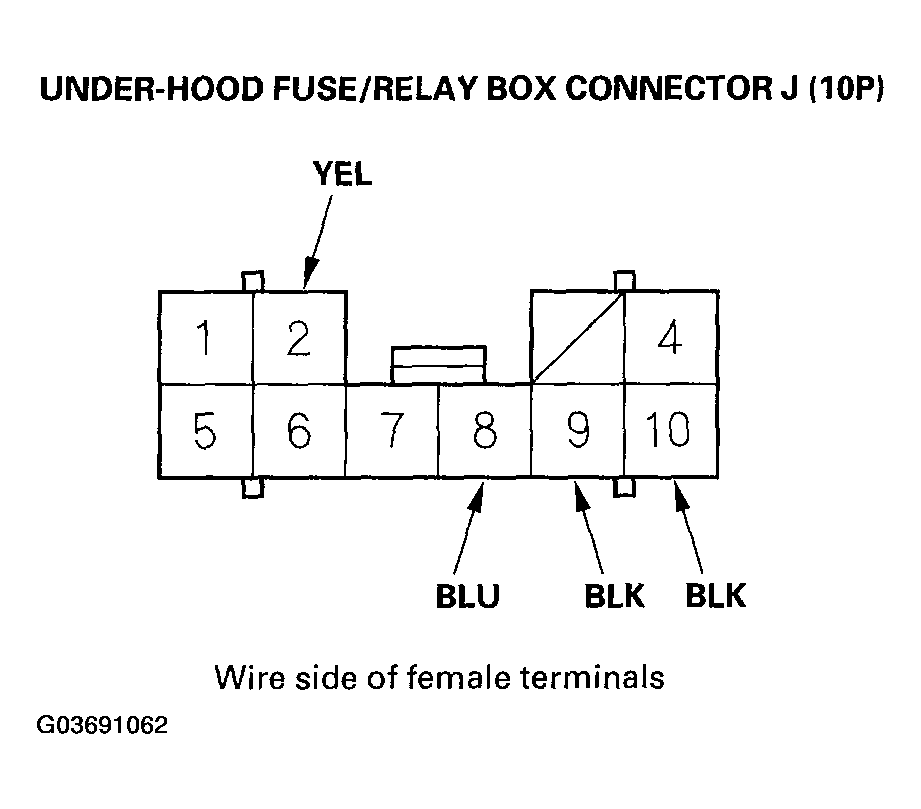

Cavity Wire Test condition Test: Desired result Possible cause if result is not obtained J9
J10BLK Under all conditions Check for voltage to ground:
There should be less than 1 V.- Poor ground (G202)
- An open in the wire
J2 YEL Ignition switch ON (II) Check for voltage to ground:
There should be battery voltage.- Blown No. 21 (7.5 A) fuse in the under-dash fuse/relay box
- An open in the wire
J8 BLU Under all conditions Check for continuity between J8 terminal and the driver's under-dash fuse/relay box connector D (17P) No. 11 terminal:
There should be continuity.An open in the wire
