Combination Switch Control Unit Input Test

  1. Before troubleshooting the wiper/washer system, troubleshoot B-CAN System Diagnosis Test Mode A (see TROUBLESHOOTING - B-CAN SYSTEM DIAGNOSIS TEST MODE A ).
  2. Remove the steering column covers (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  3. Remove the self-tapping screws, then disconnect the 12P connector (A) from the combination switch (B).

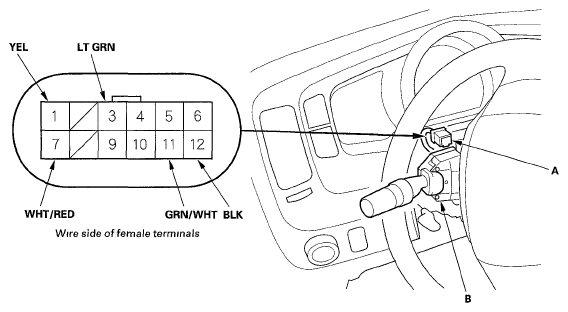

    Fig 1: Identifying Combination Switch 12P Connector Terminals
    G05593074Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Inspect the connector and socket terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, go to step 5.
  5. With the connector still disconnected, make these input tests at the connector.
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, go to step 6
    PROBLEM SYMPTOM CHART

    Cavity Wire Test condition Test: Desired result Possible cause if result is not obtained
    3 LT GRN Under all conditions Check for continuity between the No. 3 terminal and under-dash fuse/relay box connector X (39P) No 27 terminal:
    There should be continuity.
    An open in the wire
    Disconnect the under-dash fuse/relay box connector X (39P) Check for continuity between the No. 3 terminal and body ground:
    There should be no continuity.
    A short in the wire
  6. Reconnect the 12P connector to the combination switch, turn the ignition switch ON (II) and make these input tests at the connector.
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, replace the combination switch control unit.
    PROBLEM SYMPTOM CHART

    Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained
    12 BLK Under all conditions Check for voltage to ground:
    There should be less than 0.5 V.
    • Poor ground (G401)
    • An open in the wire
    7 WHT/RED Under all conditions Check for voltage to ground:
    There should be battery voltage.
    • Blown No. 15 (40 A) fuse in the under-hood fuse/relay box
    • Blown No. 7 (7.5 A) fuse in the under-dash fuse/relay box
    • An open in the wire
    1 YEL Ignition switch ON (II) Check for voltage to ground:
    There should be battery voltage.
    • Blown No. 21 (7.5 A) fuse in the under-dash fuse/relay box
    • An open in the wire
    11 GRN/WHT Wiper switch on low and high Check for voltage to ground:
    There should be less than 1V.
    • Faulty combination control unit
    • Poor ground (G401)
    Wiper switch OFF Check for voltage to ground:
    There should be more than 5 V.
    Open in the wire
