Front Subframe Alignment

NOTE:

Before removing the subframe, make a mark where the subframe lines up with the body for reinstallation.
When installing, align both installation reference holes in the subframe with the reference holes in the body using a screwdriver or tapered punch as a guide.
After mounting the subframe and brackets loosely, align the reference marks with the body, then tighten the bolts.
After reinstalling all removed parts, check and adjust the front wheel alignment (see WHEEL ALIGNMENT ).

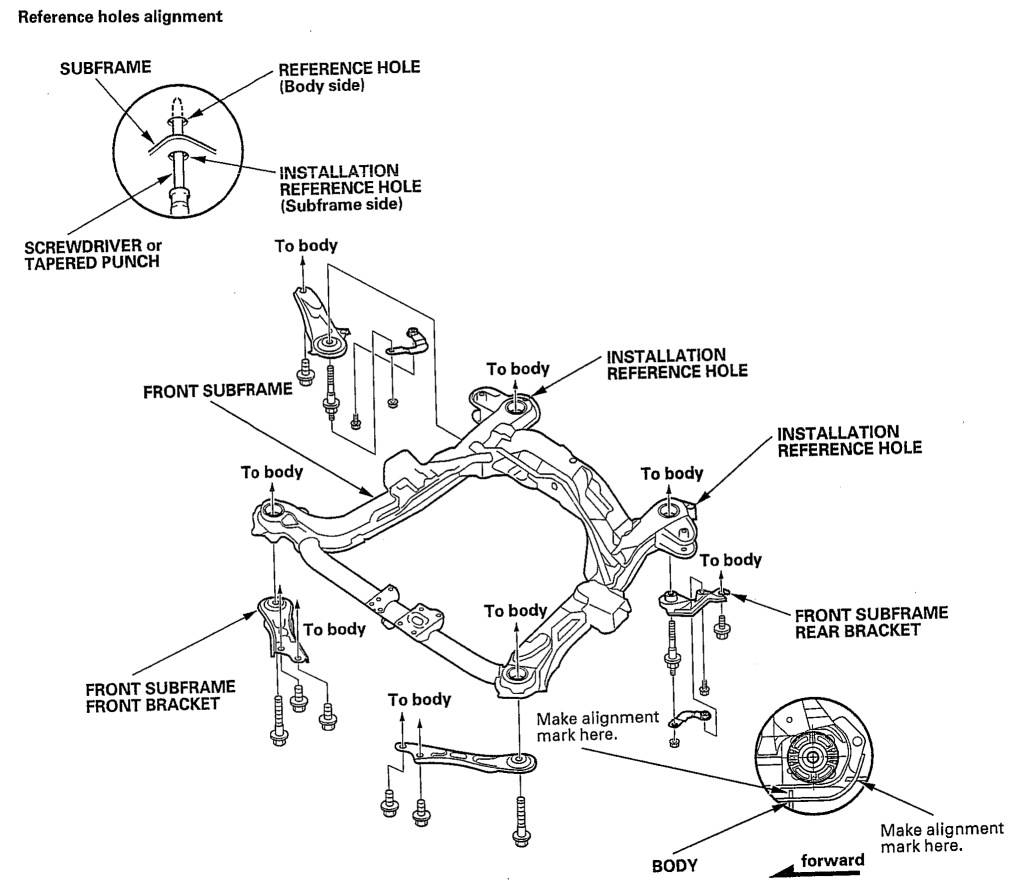

Fig 1: Aligning Front Subframe ('06 Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

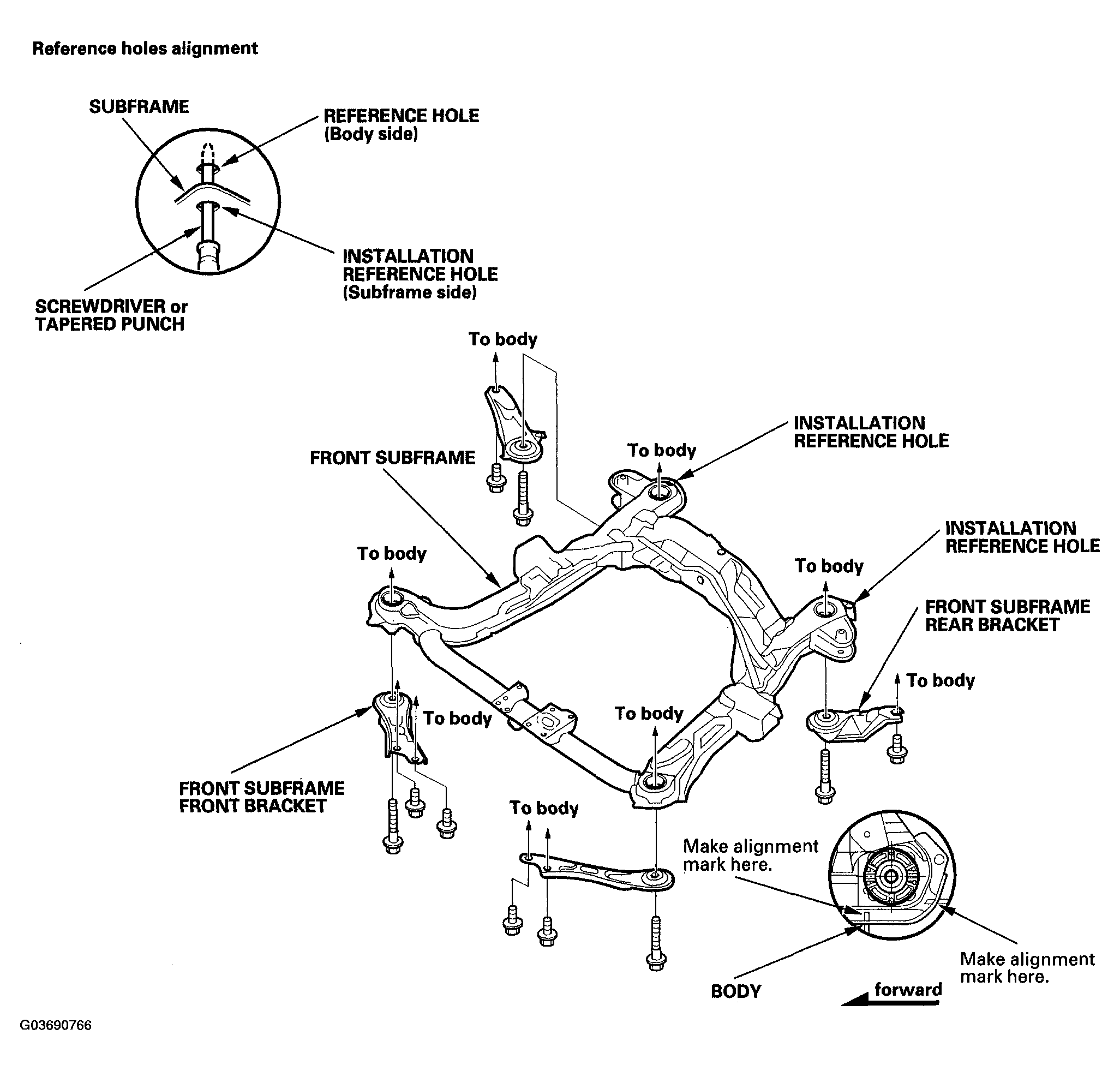

Fig 2: Aligning Front Subframe ('07-08 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
