Cruise Control Set/decel, Resume/accel, Cancel Switch Test/Replacement

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ), in the SRS before doing repairs or service.

1. Remove the driver's airbag (see DRIVER'S AIRBAG REPLACEMENT ).
2. Remove the steering wheel (see STEERING WHEEL REMOVAL ).
3. Remove the steering wheel trim.

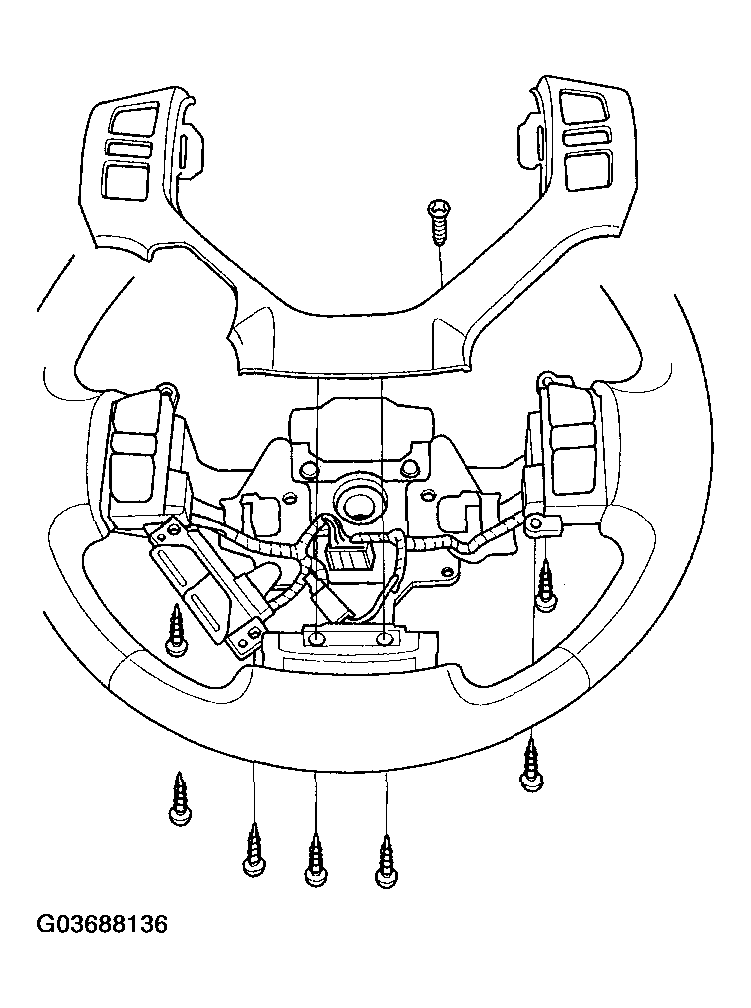

   Fig 1: Removing Steering Wheel Trim

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Disconnect the 7P connector (A), then remove the cruise control set/decel, resume/accel, cancel switch (B).

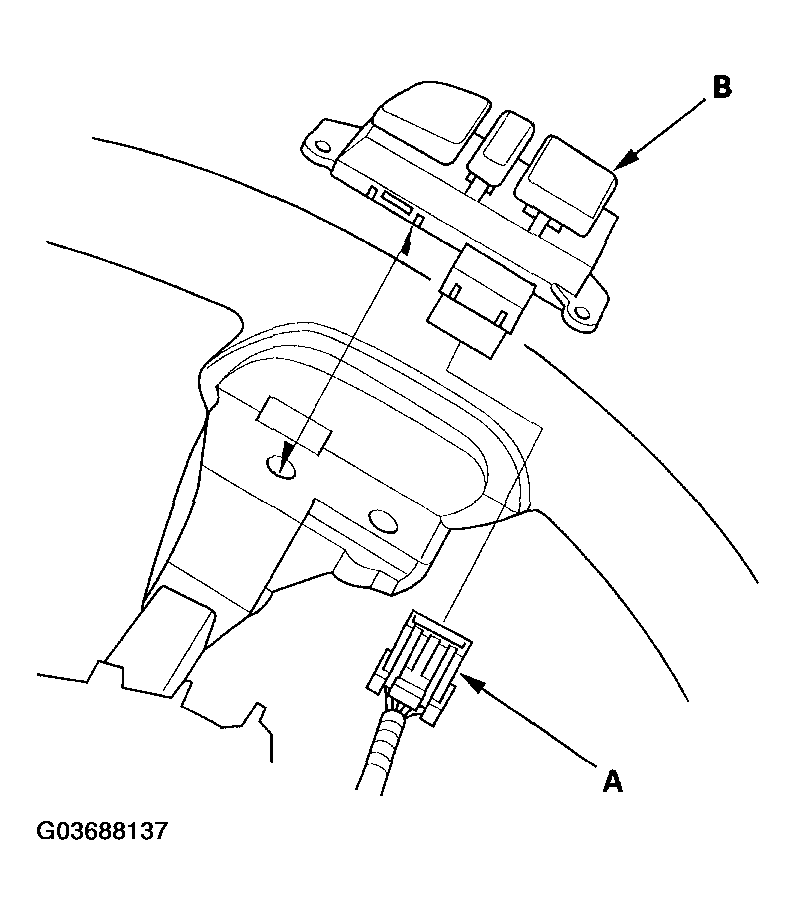

   Fig 2: Disconnecting 7P Connector

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Check for continuity between the terminals in each switch position according to the table.
   • If there is continuity, and it matches the table, but switch failure occurred on the cruise control input test, check and repair the wire harness on the switch circuit.
   • If there is no continuity in one or more positions, replace the switch.

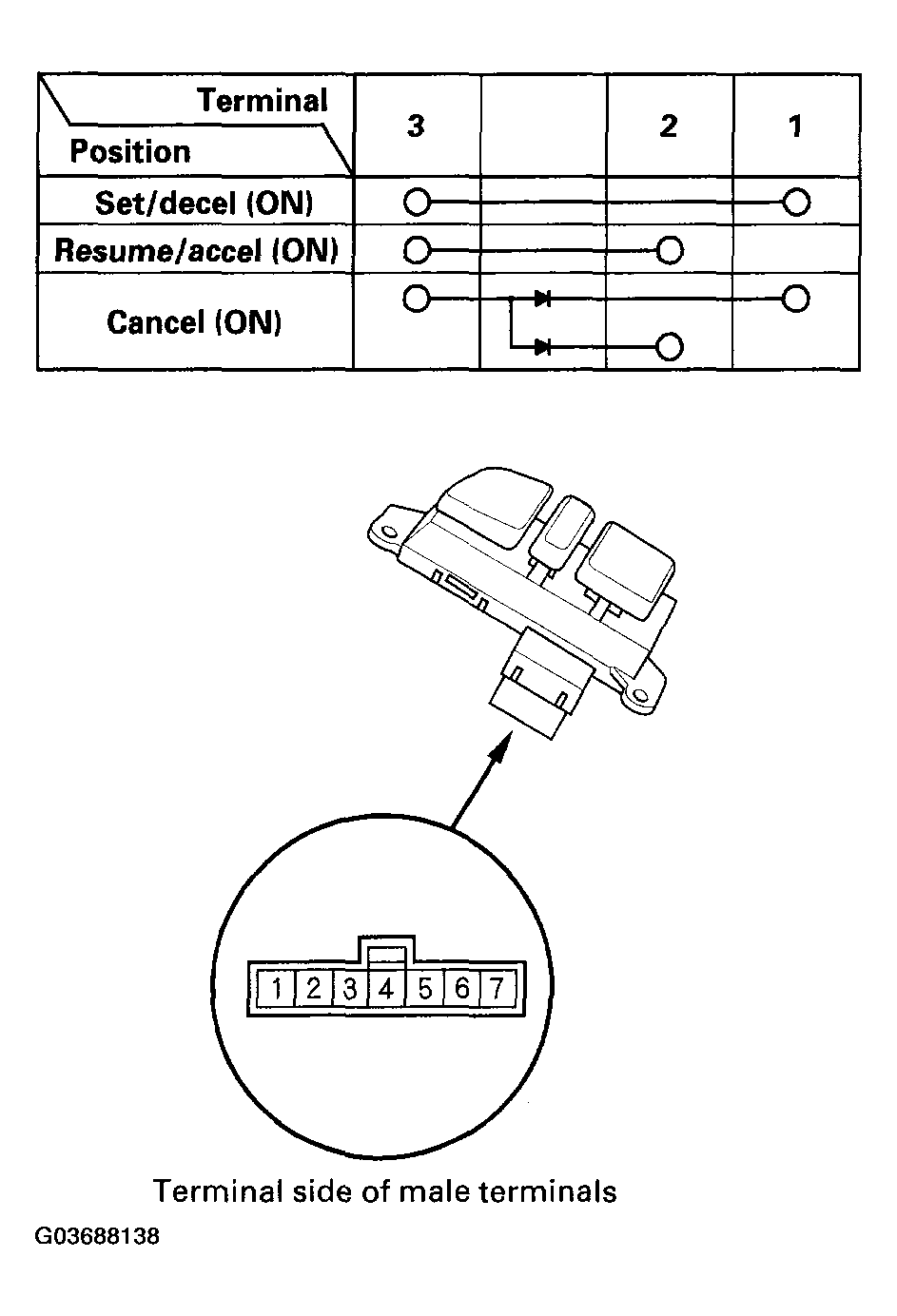

     Fig 3: Checking For Continuity Between Terminals In Each Switch Position

     Courtesy of AMERICAN HONDA MOTOR CO., INC.
