Switch Test/Replacement

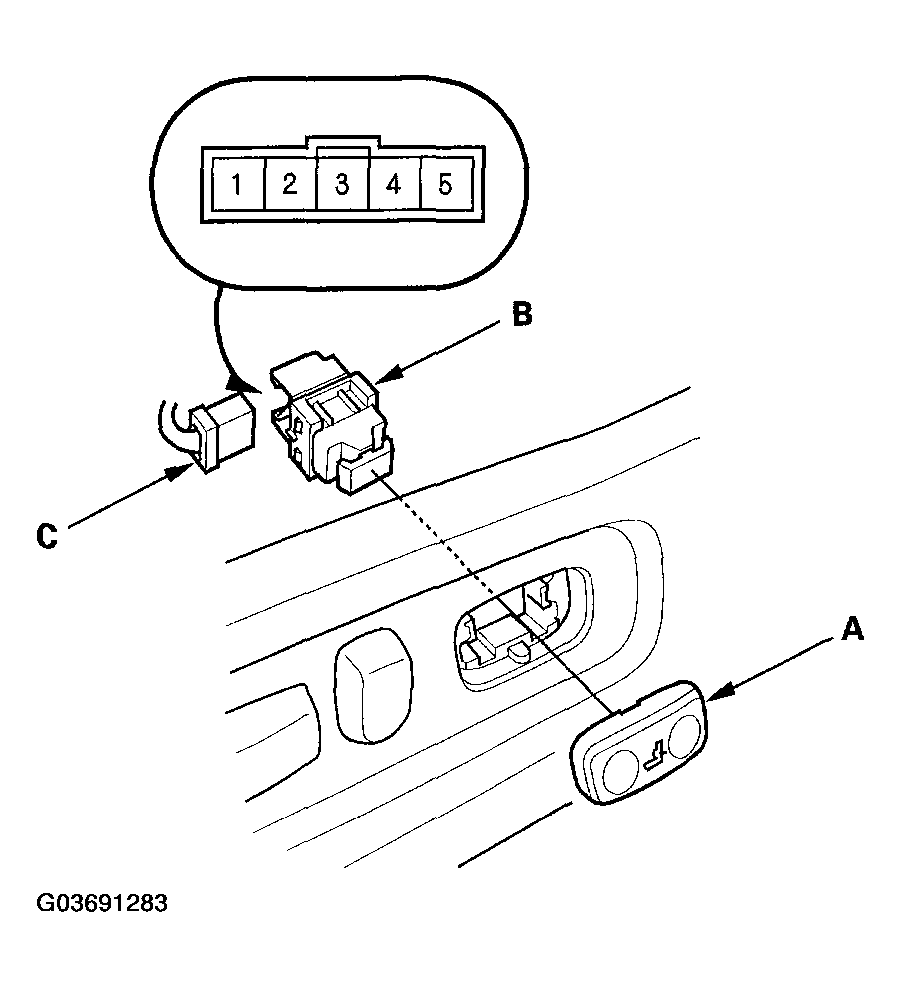

Separate the lumbar support switch cover (A) from the switch (B).

Fig 1: Removing Lumbar Support Switch Cover From The Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 5P connector (C) from the switch.
Check for continuity between the terminals in each switch position according to the table.

Fig 2: Switch Terminals Position Continuity Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
