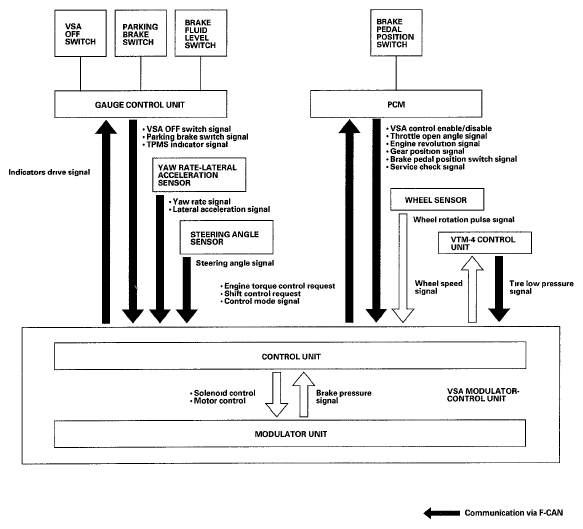

System Outline
This system is composed of the VSA modulator-control unit, the wheel sensor, steering angle sensor, and yaw rate-lateral acceleration sensor, and takes charge of the ABS, EBD, TCS, VSA, and brake assist control by controlling the brake pressure of each wheel and the engine torque.
