VSA Modulator-Control Unit Removal and Installation: Removal
- Make sure the ignition switch is OFF.
- Remove the air intake duct (see step 9 under AIR INTAKE DUCT REMOVAL/INSTALLATION
).

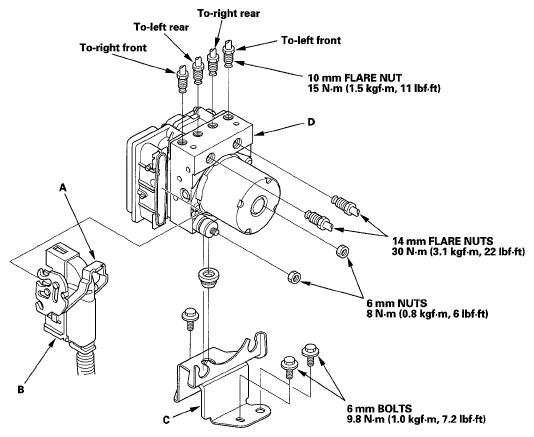

- Pull up the lock (A) of the VSA modulator-control unit 46P connector (B), and the connector disconnects itself.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Disconnect the six brake lines.
- Remove the three 6 mm bolts, then remove the bracket (C) with the VSA modulator-control unit (D) from the body.
- Remove the two 6 mm nuts, then remove the VSA modulator-control unit from the bracket.
