Vacuum Distribution

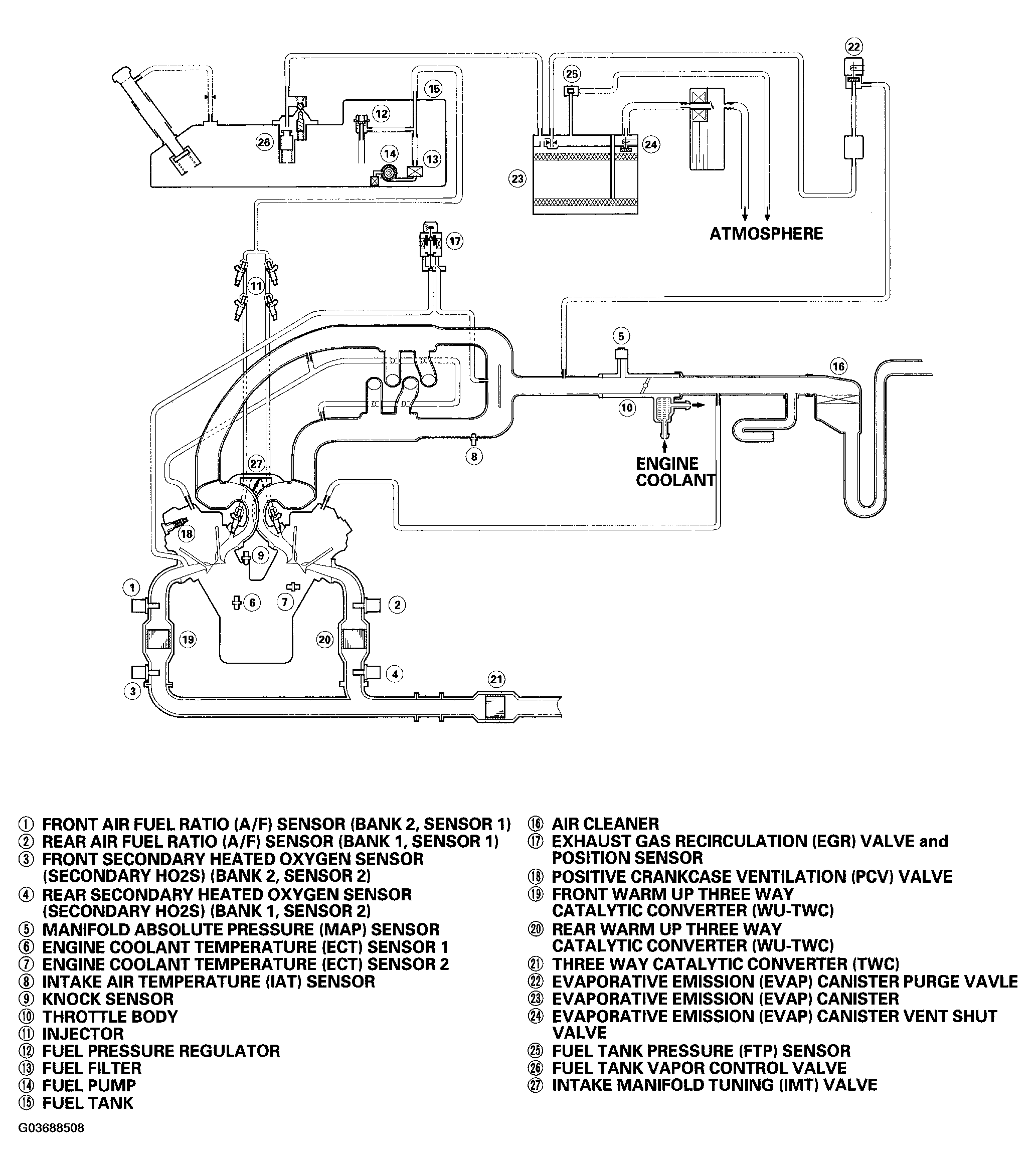

Fig 1: Identifying Vacuum Hose Routing (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
