Front Brake Disc Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Keep any grease off the brake disc and brake pads.
  1. Raise the front of the vehicle, and support it with safety stands in the proper locations (see LIFT AND SUPPORT POINTS ).
  2. Remove the front wheel.
  3. Remove the brake hose bracket mounting bolt (A).

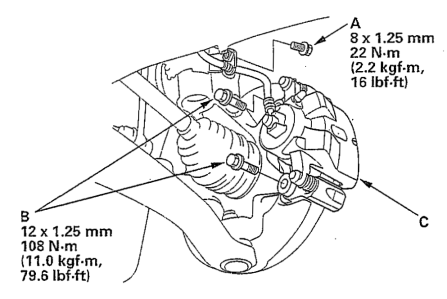

    Fig 1: Removing Brake Hose Bracket Mounting Bolt
    G00465236Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the brake caliper bracket mounting bolts (B), then remove the caliper assembly (C) from the knuckle. To prevent damage to the caliper assembly or brake hose, use a short piece of wire to hang the caliper assembly from the undercarriage. Do not twist the brake hose excessively.
  5. Remove the brake disc flat screws (A).

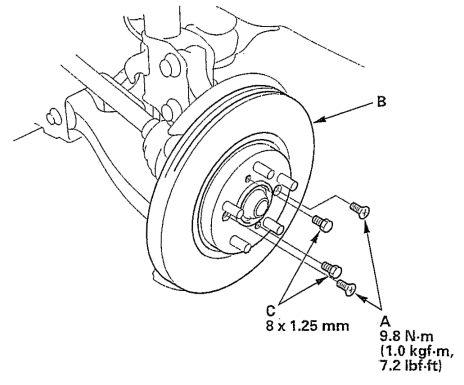

    Fig 2: Removing Brake Disc Flat Screws
    G00465237Courtesy of AMERICAN HONDA MOTOR CO., INC.
  6. Remove the brake disc (B) from the front hub.
    NOTE: If the brake disc is stuck to the front hub, screw two 8 x 1.25 mm bolts (C) into the brake disc to push it away from the front hub. Turn each bolt 90 degrees to prevent the brake disc from binding.
  7. Install the brake disc in the reverse order of removal.
    NOTE: Before installing the brake disc, clean the mating surfaces of the front hub and the indside of the brake disc.
  8. Clean the mating surfaces of the brake disc and the inside of the wheel, then install the front wheel.
