Except LX model

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before performing repairs or service.

Remove the driver's airbag assembly (see DRIVER'S AIRBAG REPLACEMENT ).
Remove the two screws and the cover (A) from the steering wheel.

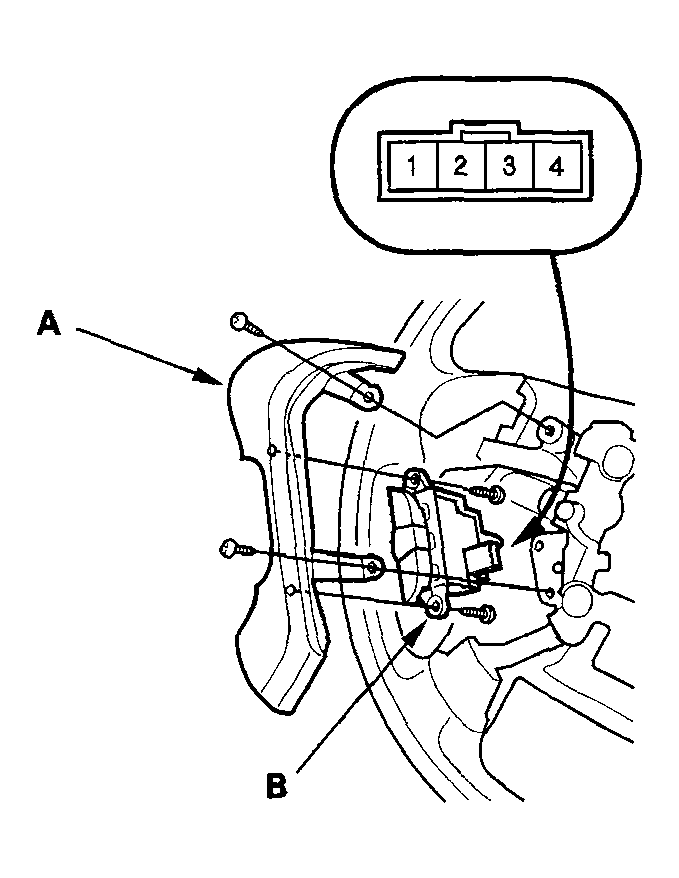

Fig 1: Removing Screws From Radio Remote Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two screws from the radio remote switch (B).
Disconnect the 4P connector from the radio remote switch.

Measure the resistance between the No. 3 and No. 4 (with navigation system) or No. 1 (without navigation system) terminals in each switch position according to the table.

POSITION RESISTANCE

Position	Resistance
OFF	About 10 k ohms
MODE	About 2.4 k ohms
CH	About 900 ohms
(VOL UP)	About 300 ohms
(VOL. DOWN)	About 50 ohms

If the resistance is not as specified, replace the remote switch.
