With Navigation System

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before performing repairs or service.

NOTE:

Eject all the discs before reomving the audio unit to prevent damaging the CD player's load mechanism.
Put on gloves to protect your hands.
Take care not to scratch the dashboard and its related parts.

Make sure you have the anti-theft codes for the radio and navigation system, then write down the frequencies for the radio's preset buttons.
Remove the center lower cover (see CENTER CONSOLE REMOVAL/INSTALLATION ).
Remove the bolts (A).

Fig 1: Removing Bolts & Center Lower Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the all connectors (B) from the audio unit (C) and the climate control unit (D).

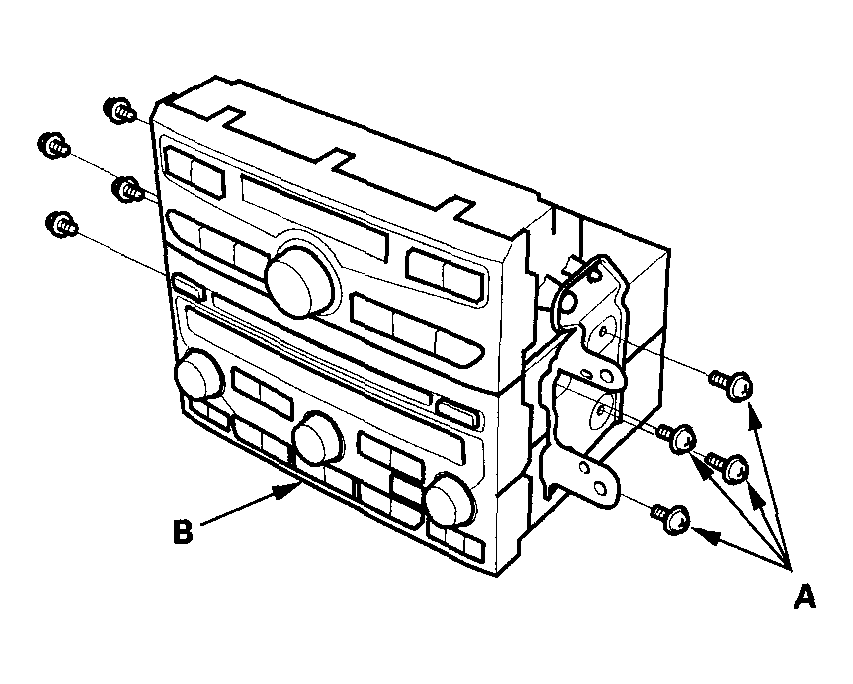

Remove the screws (A) and the audio unit (B).

Fig 2: Removing Screws & Audio Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the audio unit and the climate control unit in the reverse order of removal, and note these items:
- Make sure the audio unit and climate control unit connectors are plugged in properly, and the antenna lead is connected properly.
- Reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT ).
- Enter the anti-theft codes for the radio and navigation system, then enter the radio station presets and set the clock.
