Wheel Sensor Replacement

NOTE: Install the sensor carefully to avoid twisting the wires.

Front

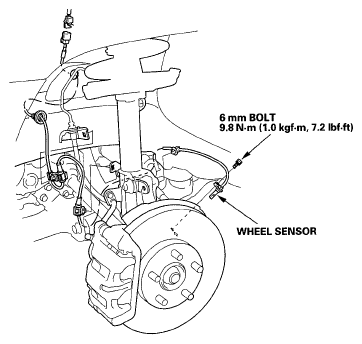

Fig 1: Front Wheel Sensor With Torque Specifications
G05592978Courtesy of AMERICAN HONDA MOTOR CO., INC.

Rear

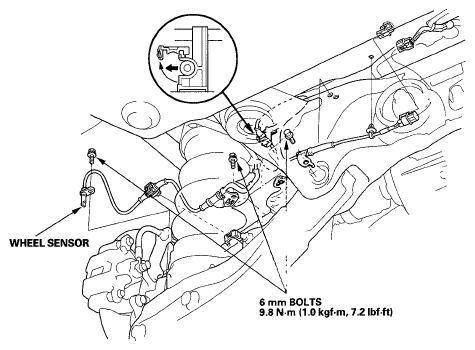

Fig 2: Rear Wheel Sensor With Torque Specifications
G05592979Courtesy of AMERICAN HONDA MOTOR CO., INC.
