Without Navigation System (LX Model)

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before performing repairs or service.

NOTE:

Eject all the discs before removing the audio unit to prevent damaging the CD player's load mechanism.
Put on gloves to protect your hands.
Take care not to scratch the dashboard and its related parts.
If you are replacing the audio unit, write down the audio presets (if possible), and enter them into the new audio unit.

Remove the center panel (see CENTER PANEL REMOVAL/INSTALLATION ).

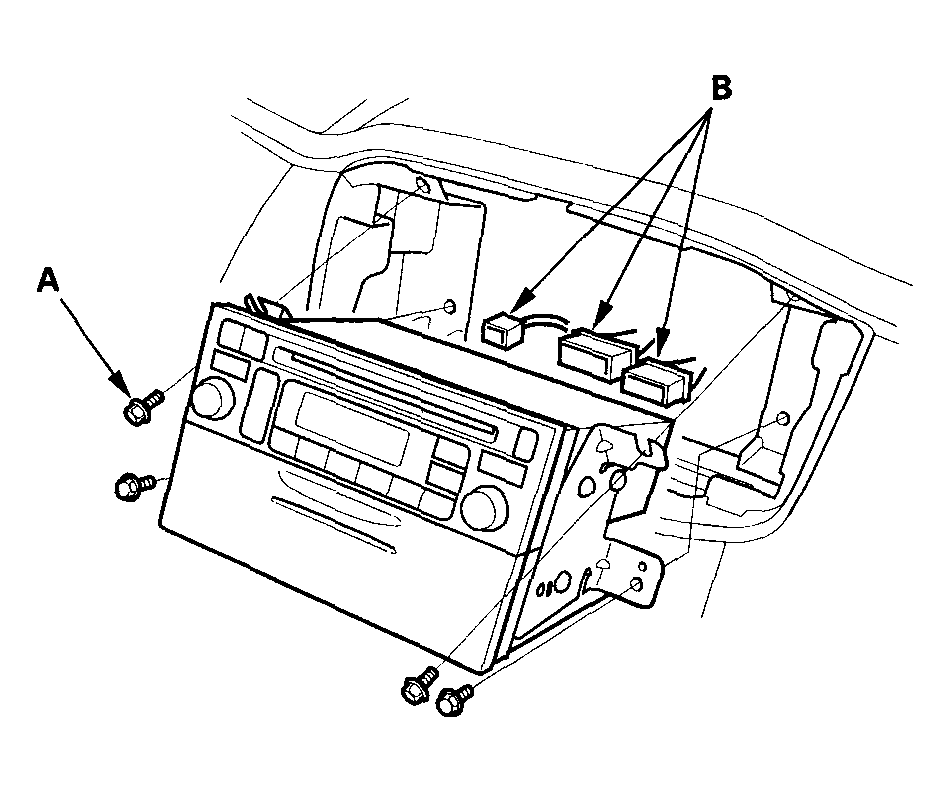

Remove the bolts (A).

Fig 1: Removing Bolts & Audio Unit Connectors (LX Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the audio unit connectors (B) from the audio unit.

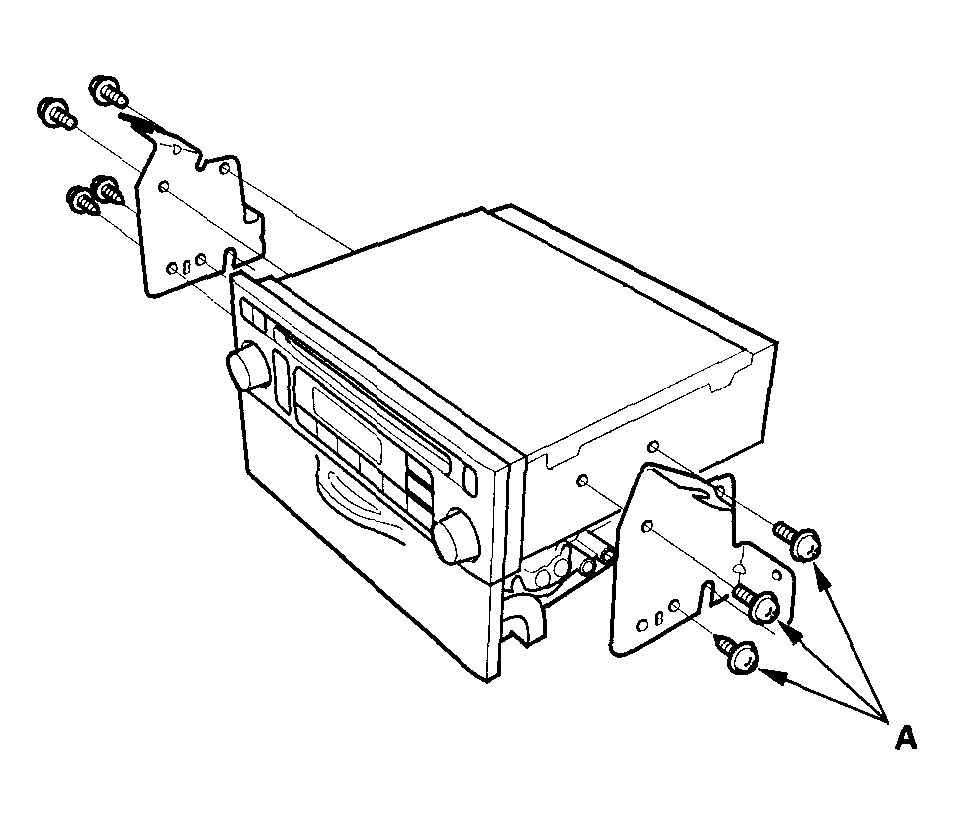

Remove the screws (A) from the audio unit.

Fig 2: Removing Screws From Audio Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the audio unit in the reverse order of removal, and note these items:
- Make sure the audio unit connectors are plugged in properly, and the antenna lead is connected properly.
- Reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT ).
- Enter the anti-theft codes for the radio, then enter the radio station presets and set the clock.
