Exploded View

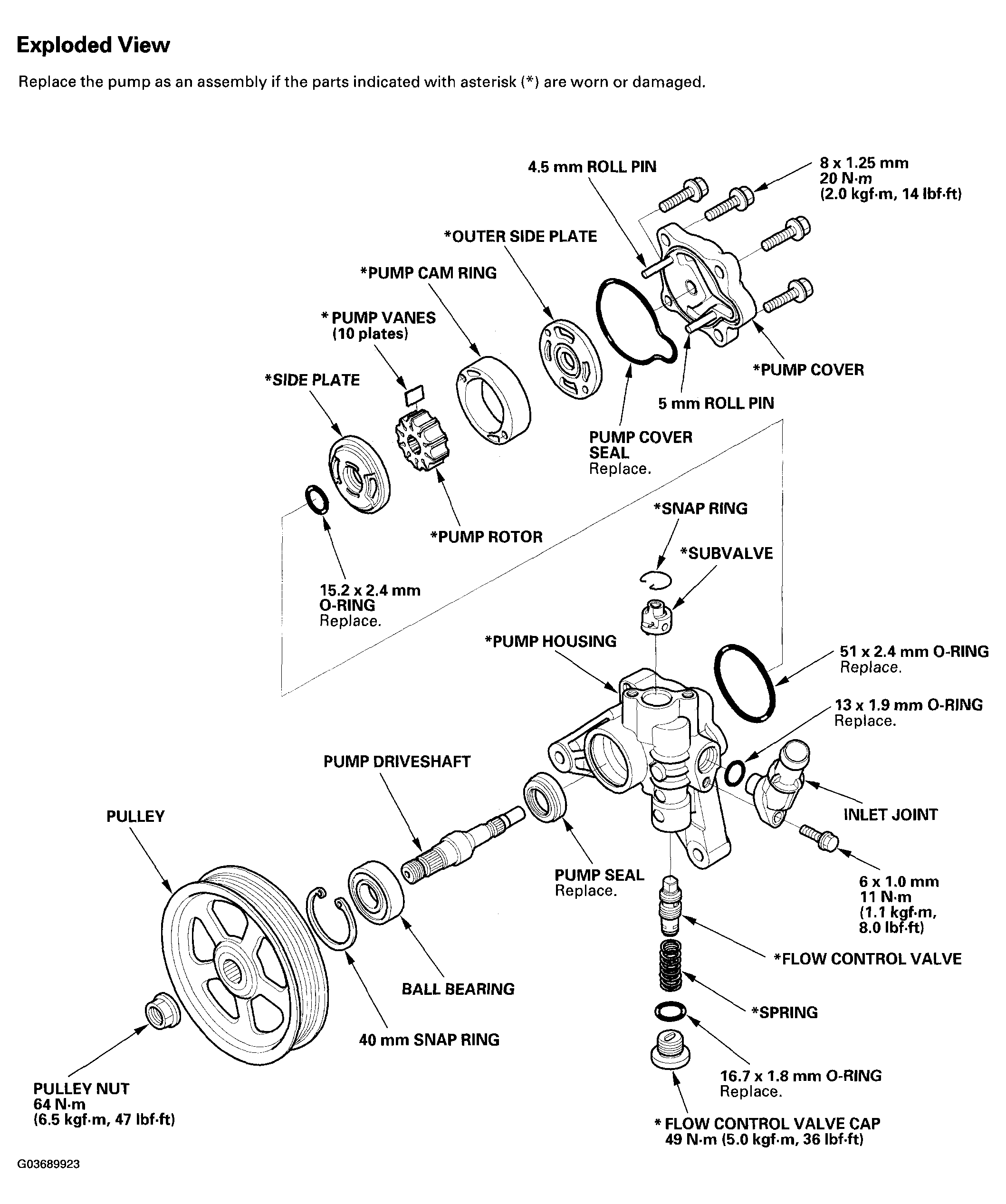

Fig 1: Exploded View Of Power Steering Pump With Torque Specifications
G03689923Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required
