In-car Temperature Sensor Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the in-car temperature sensor (A) from the dashboard, then disconnect the 2P connector (B) and the air hose (C). Be careful not to damage the sensor or the dashboard.

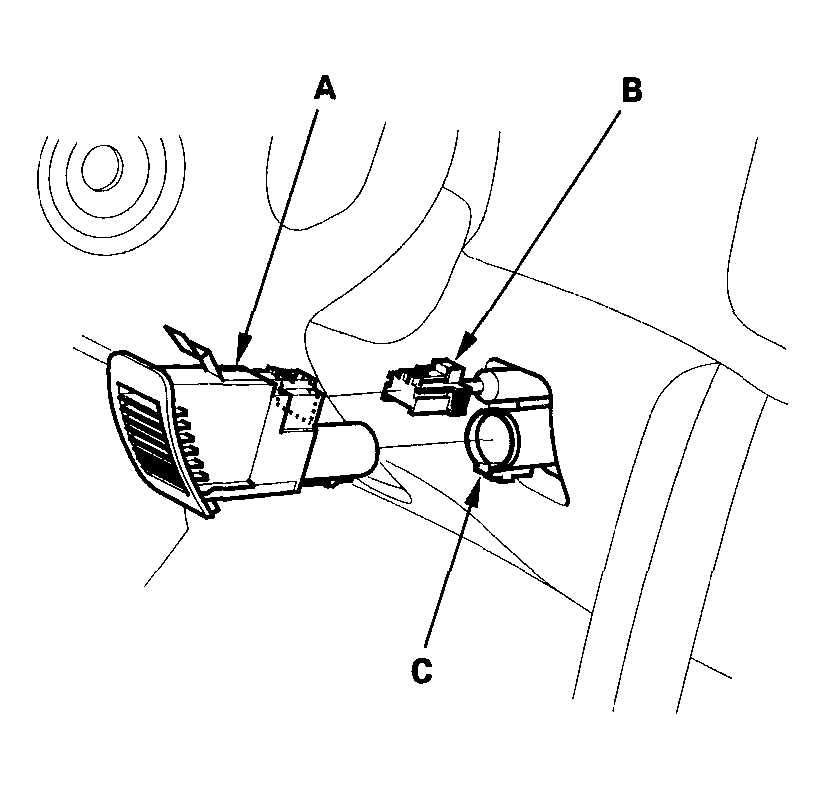

    Fig 1: Removing In-Car Temperature Sensor From Dashboard & Disconnecting 2P Connector & Air Hose
    G04246987Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Install the sensor in the reverse order of removal. Be sure to connect the air hose securely.
