System Diagram

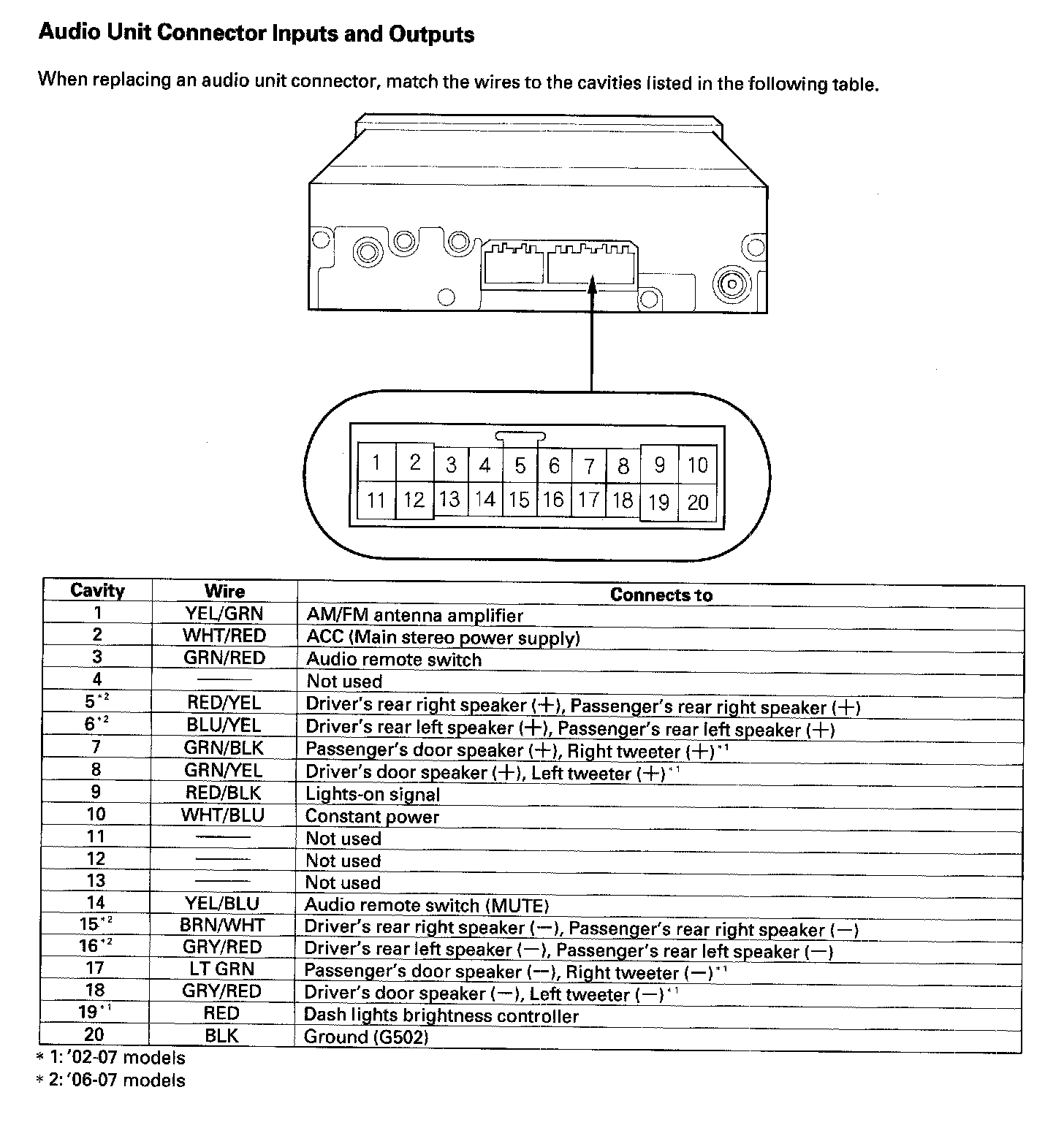

Audio Unit Connector Inputs And Outputs:



172. Audio Unit:



187. XM Receiver (USA):
