Removal and Replacement

CMP Sensor Replacement

NOTE: The CMP sensor is on the exhaust side of the cylinder head.

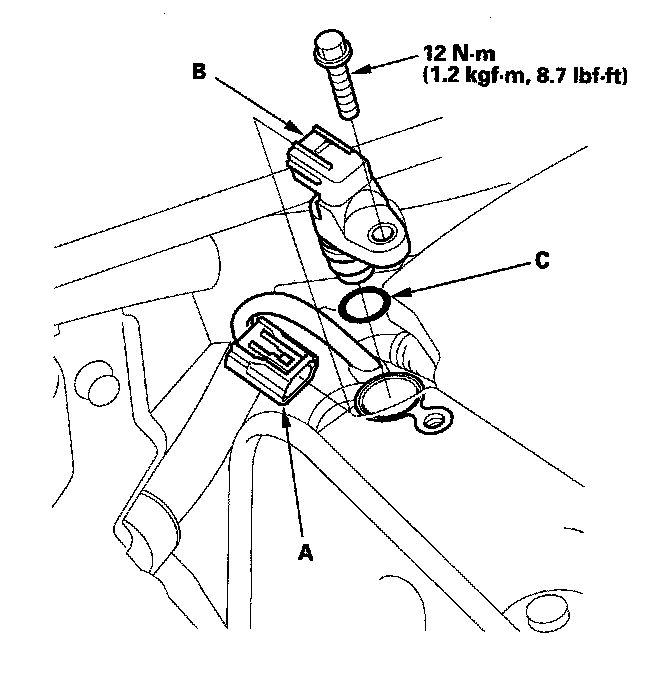

1. Disconnect the CMP sensor 3P connector (A).
2. Remove the CMP sensor (B) from the exhaust camshaft side of the cylinder head.
3. Install the parts in the reverse order of removal with a new O-ring (C).
