Differential Mount: Service and Repair

Differential Mount Replacement

NOTE: If installing the rear differential and mount assemblies, tighten the differential mount bracket B mounting nuts first, then the differential mount bracket A mounting bolts.

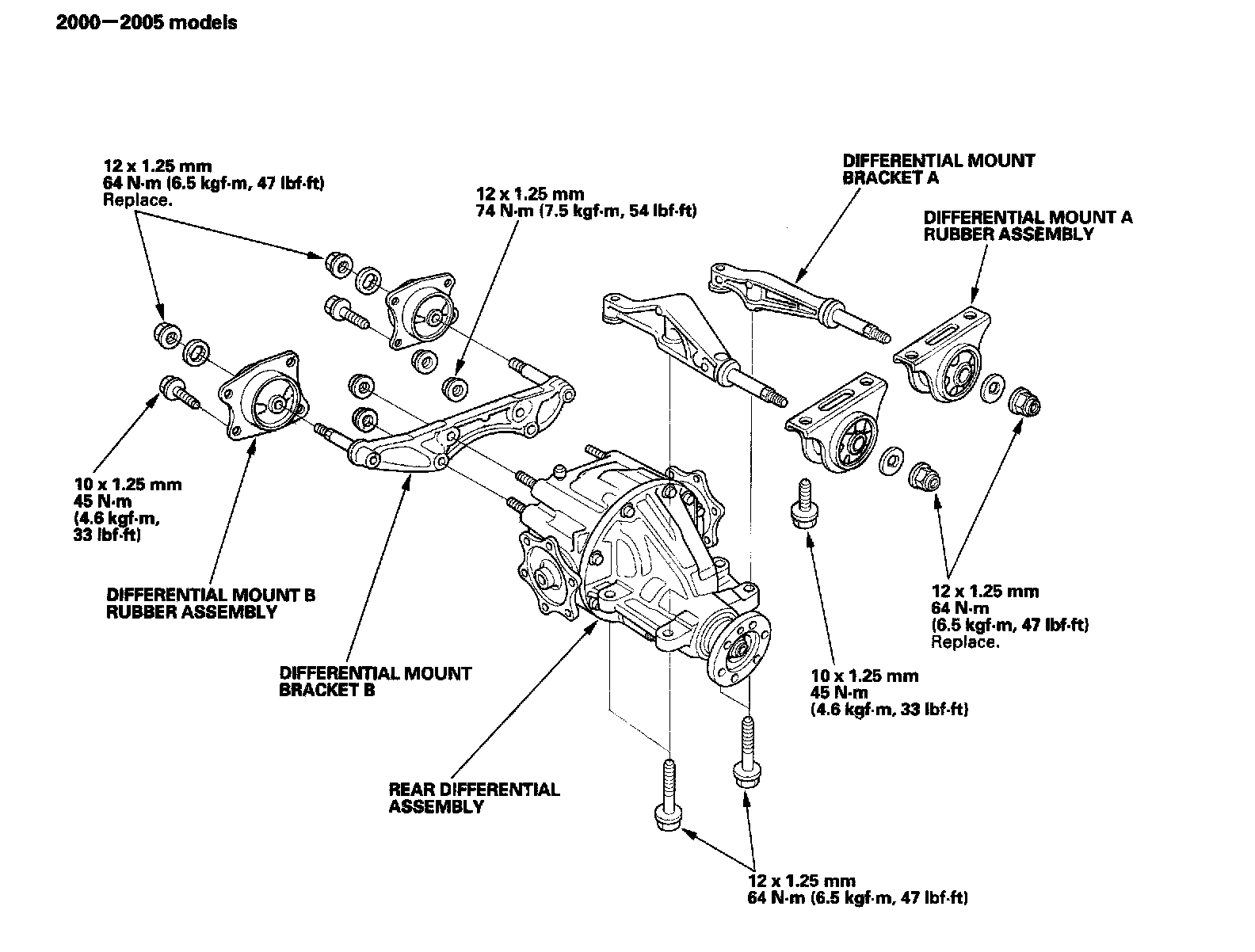

Differential Mount 2000-2005 models:

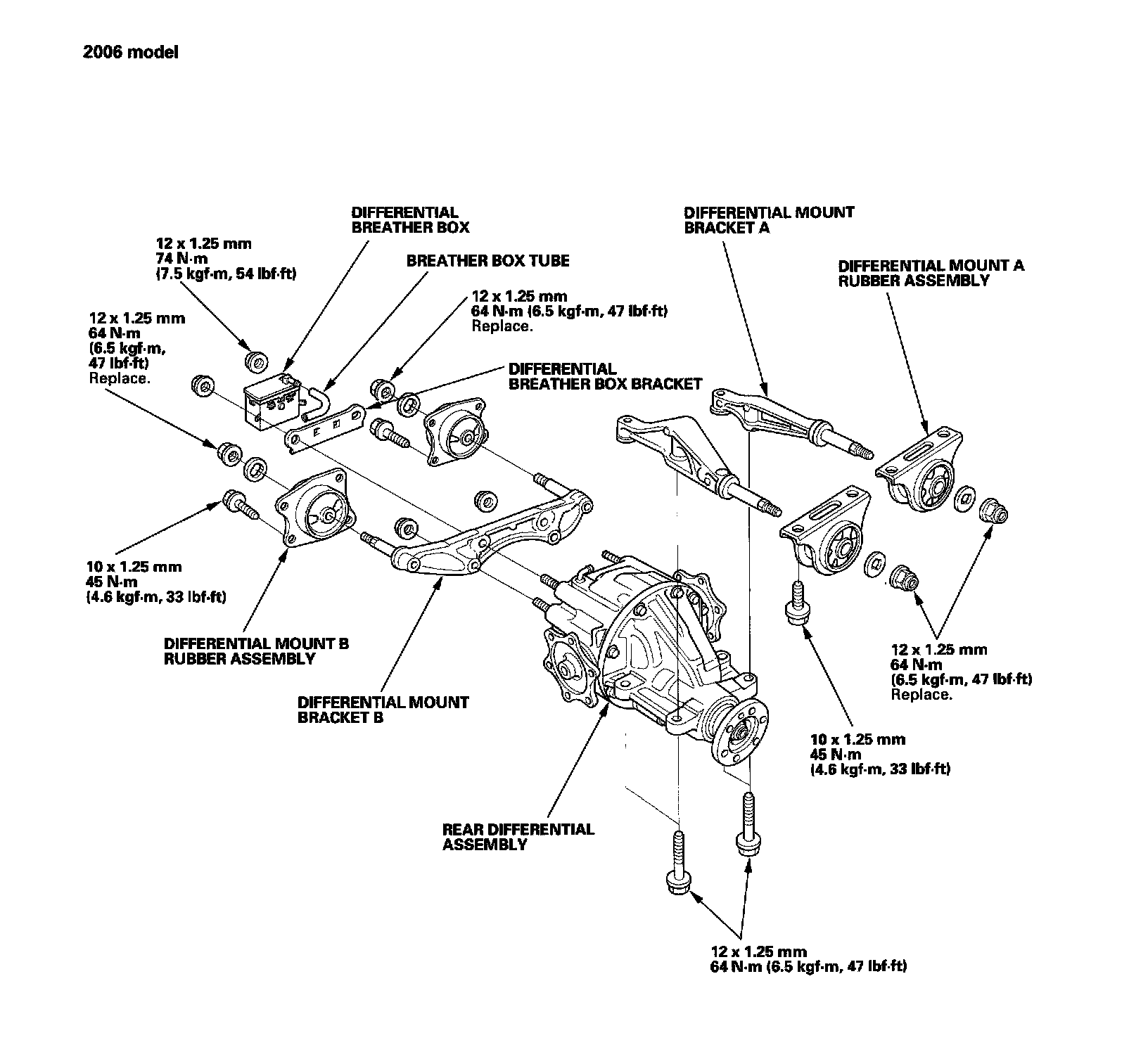

Differential Mount 2006 model:
