Transmission Disassembly
Transmission Disassembly

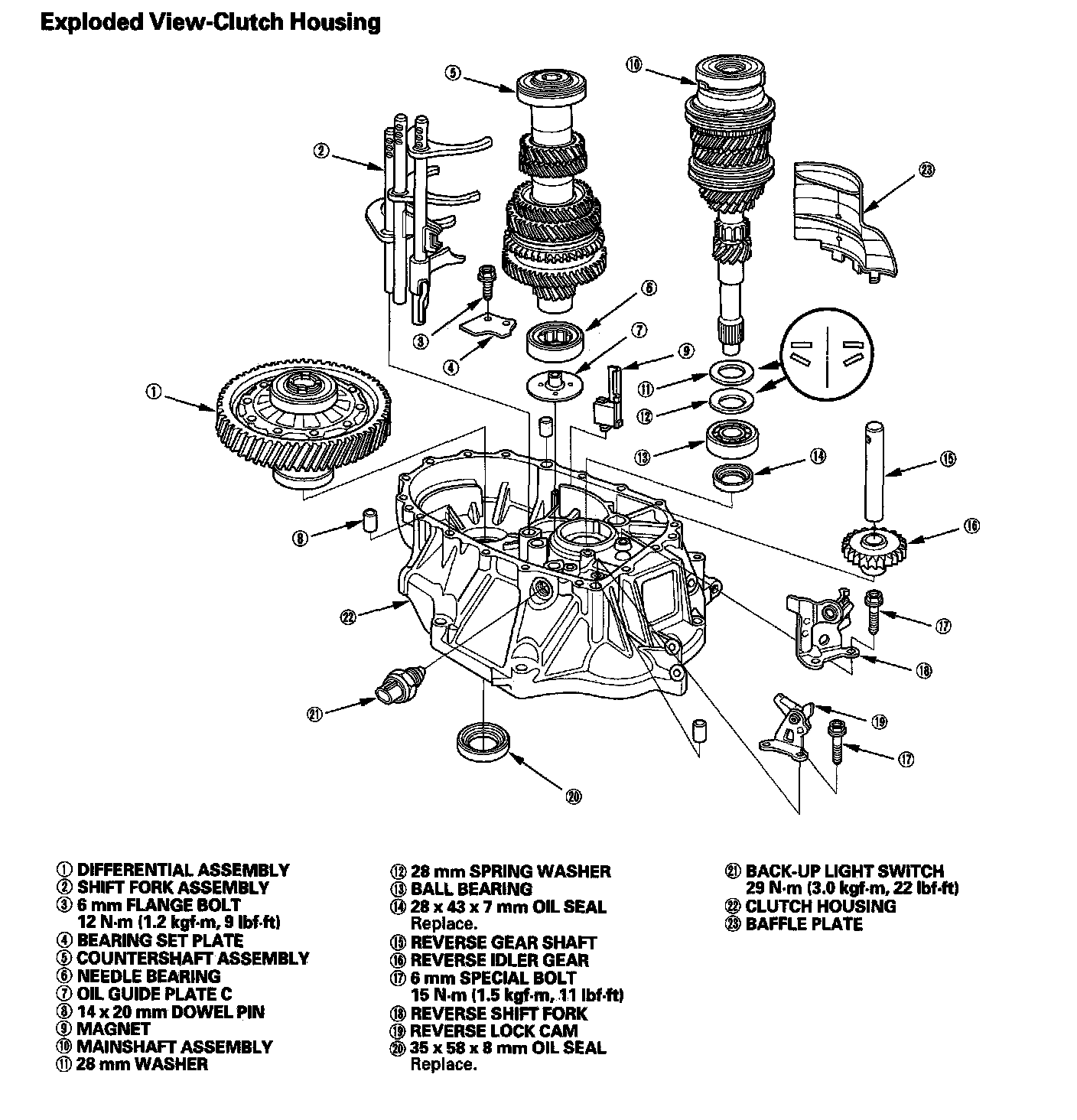

Manual Transmission Clutch Housing L4-2.4L:

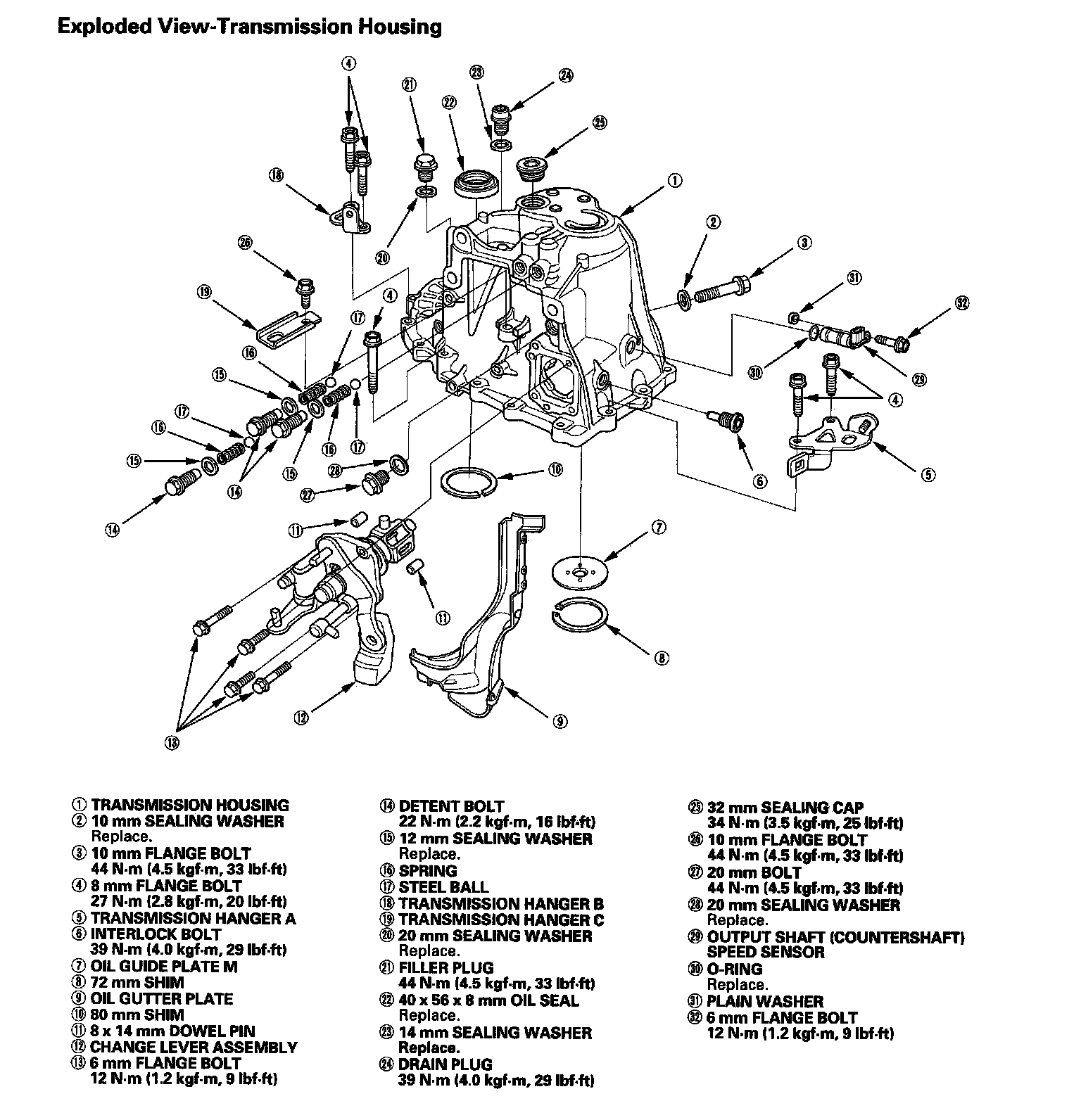

Manual Transmission Housing L4-2.4L:
