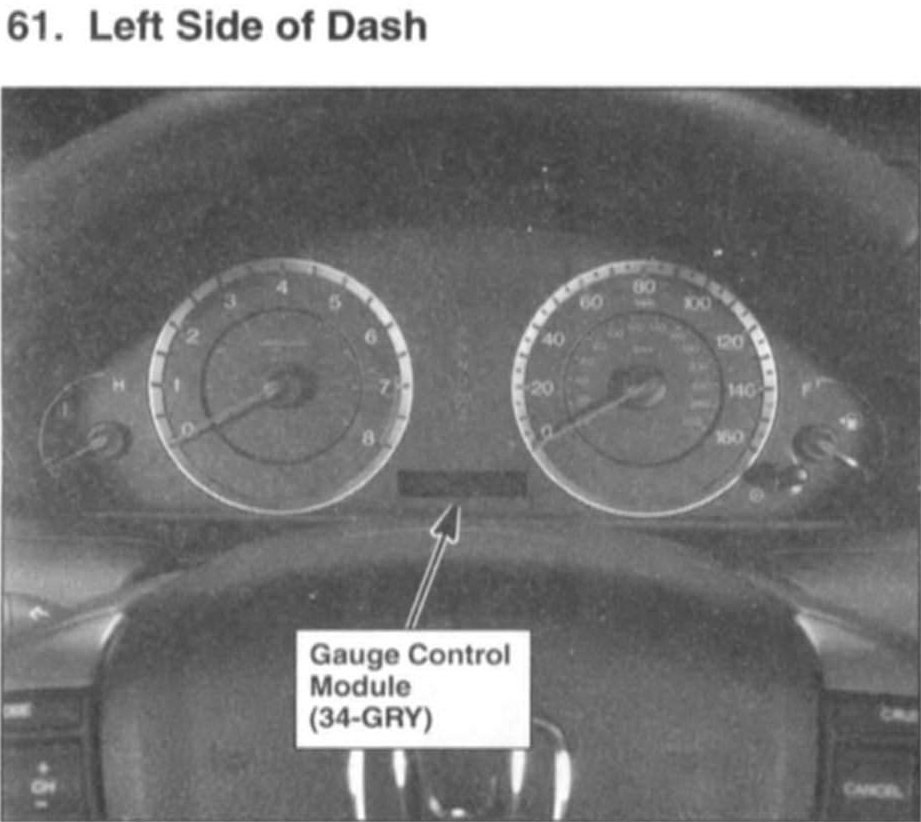

Instrument Panel Control Module: Locations

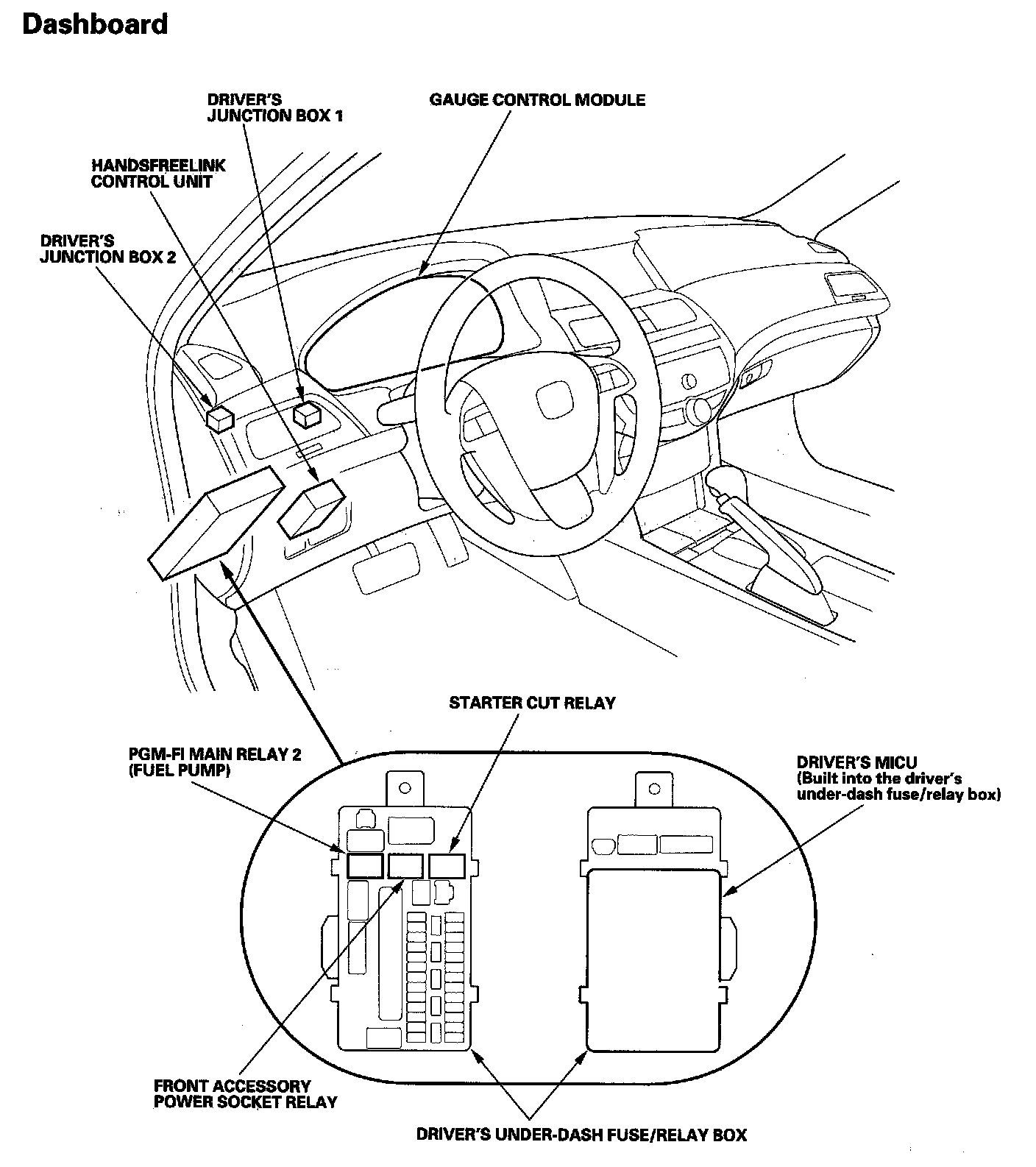

Relay And Control Unit Locations Dashboard:



Multiplex Integrated Control System Component Location Index:

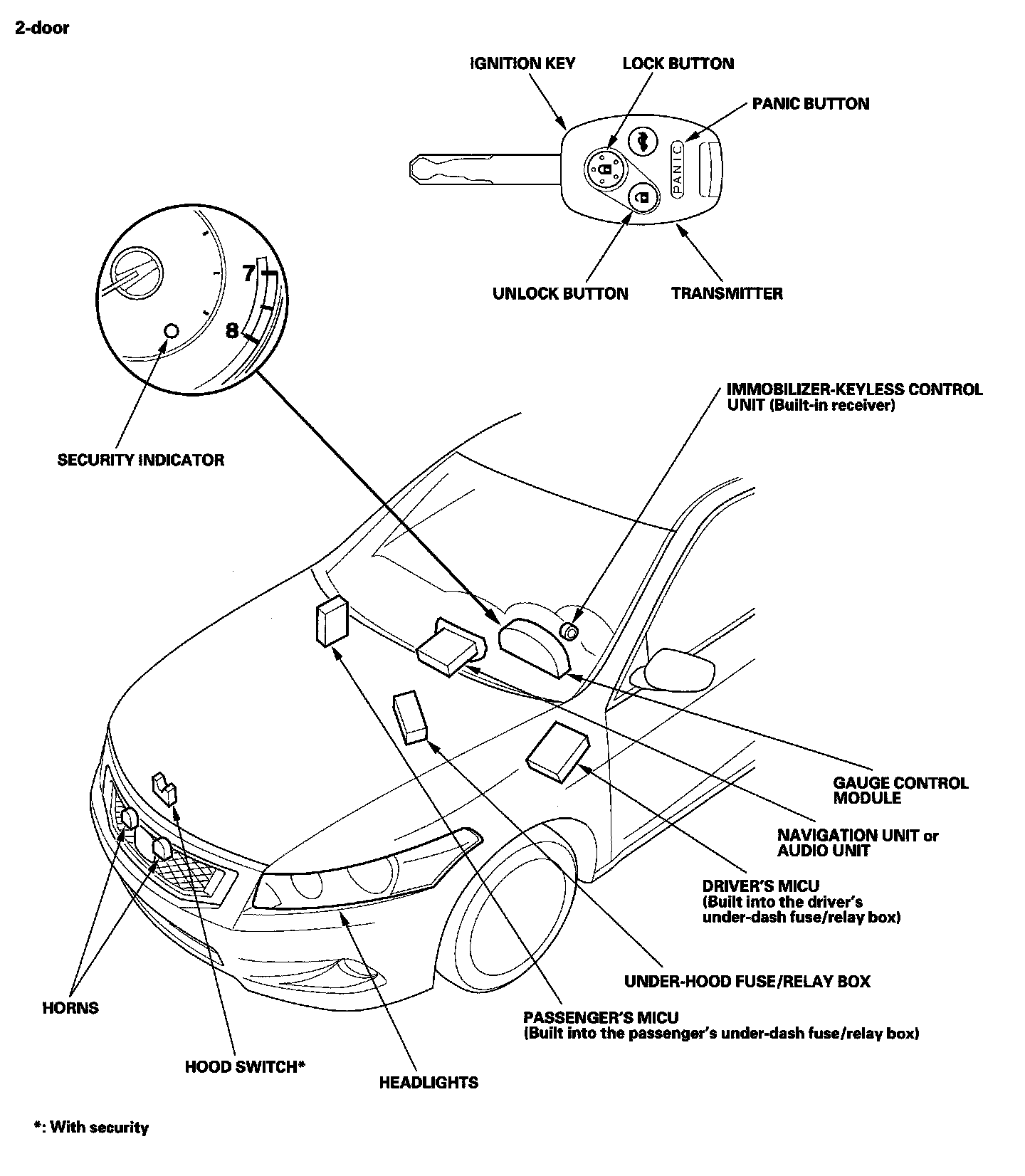

Keyless/Power Door Locks/Security System Component Location Index:

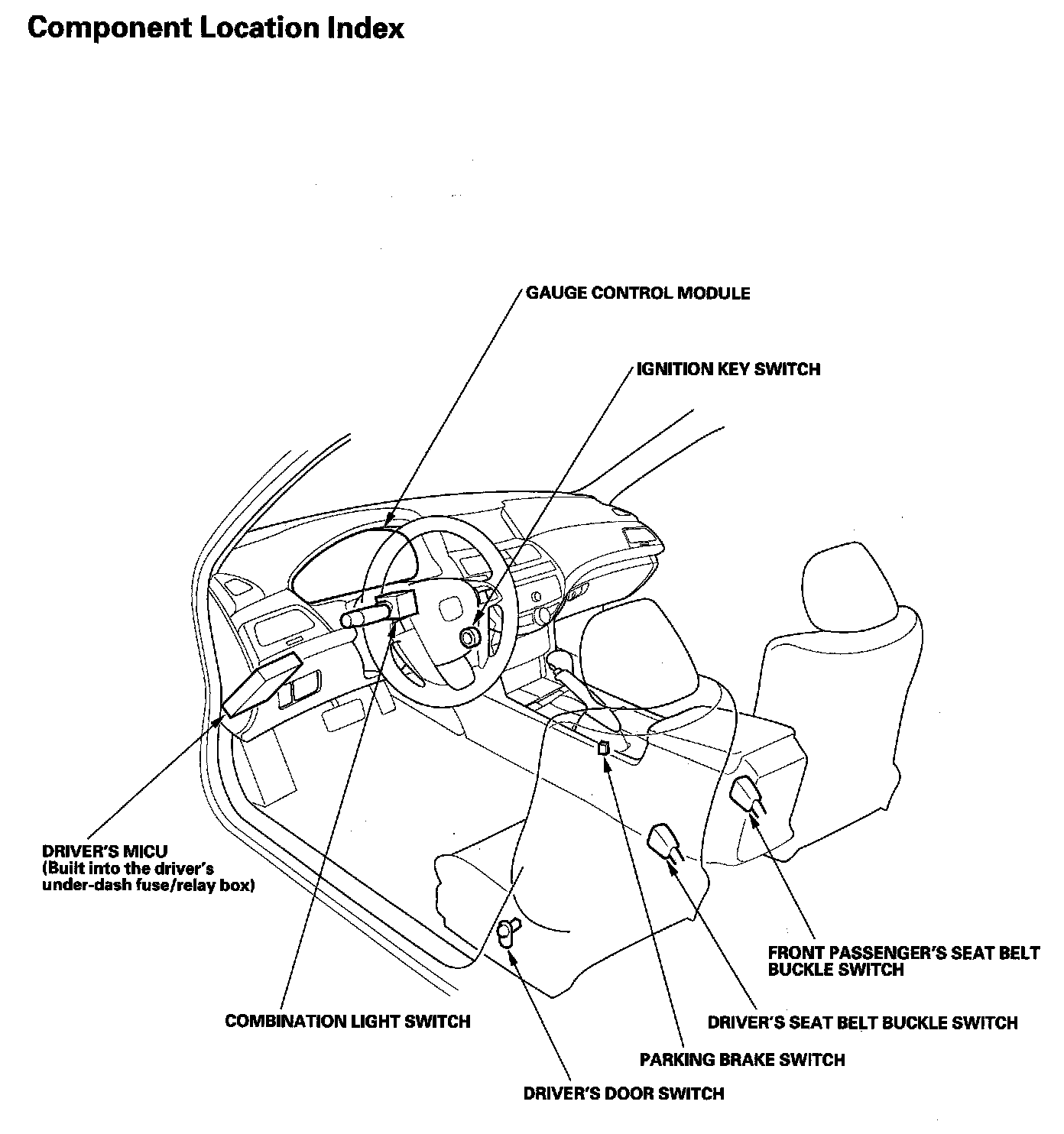

Reminder Systems Component Location Index:

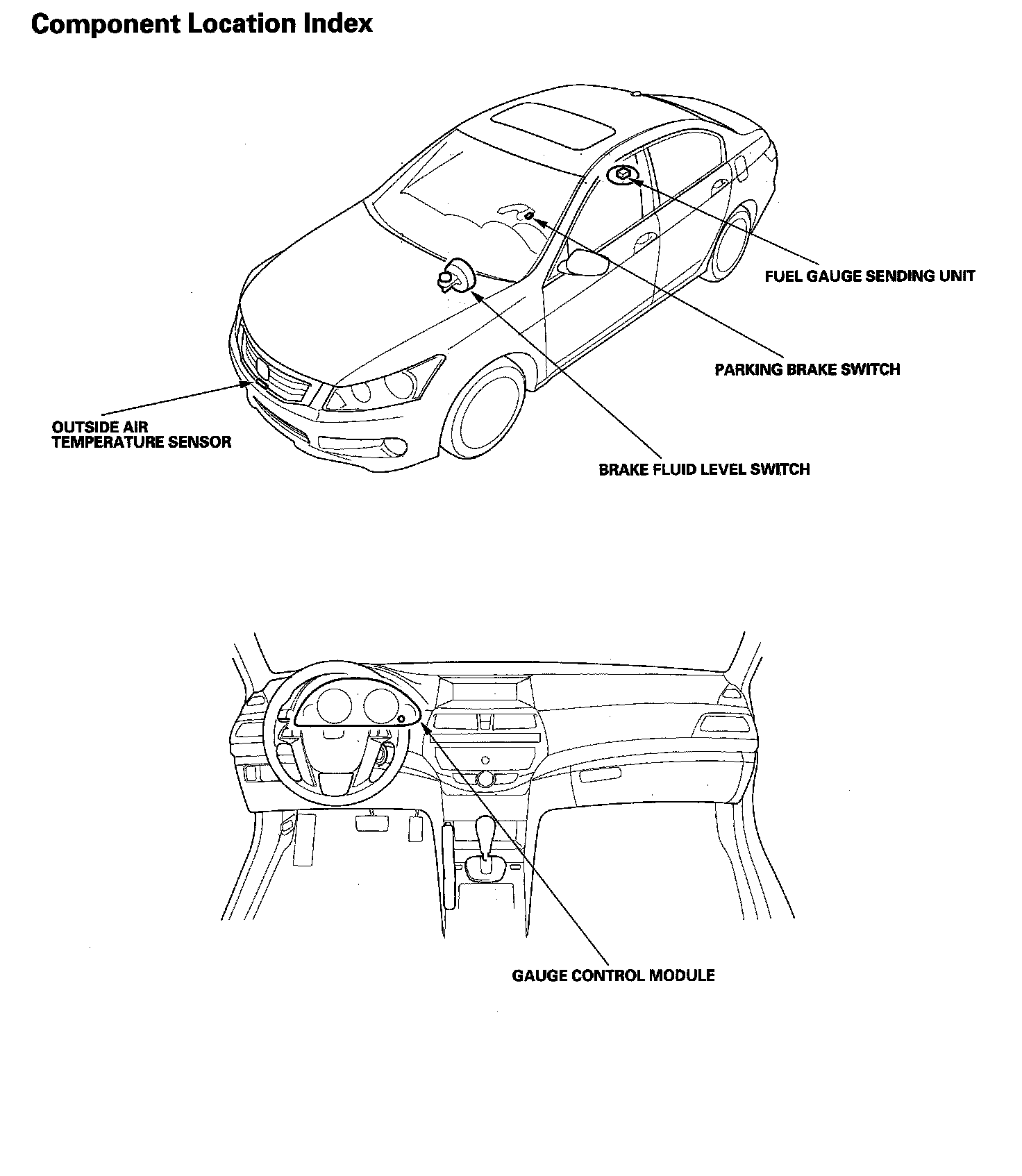

Gauges Component Location Index:
