Power Mirror Switch Test/Replacement
Power Mirror Switch Test/Replacement1. Remove the driver's dashboard lower cover.

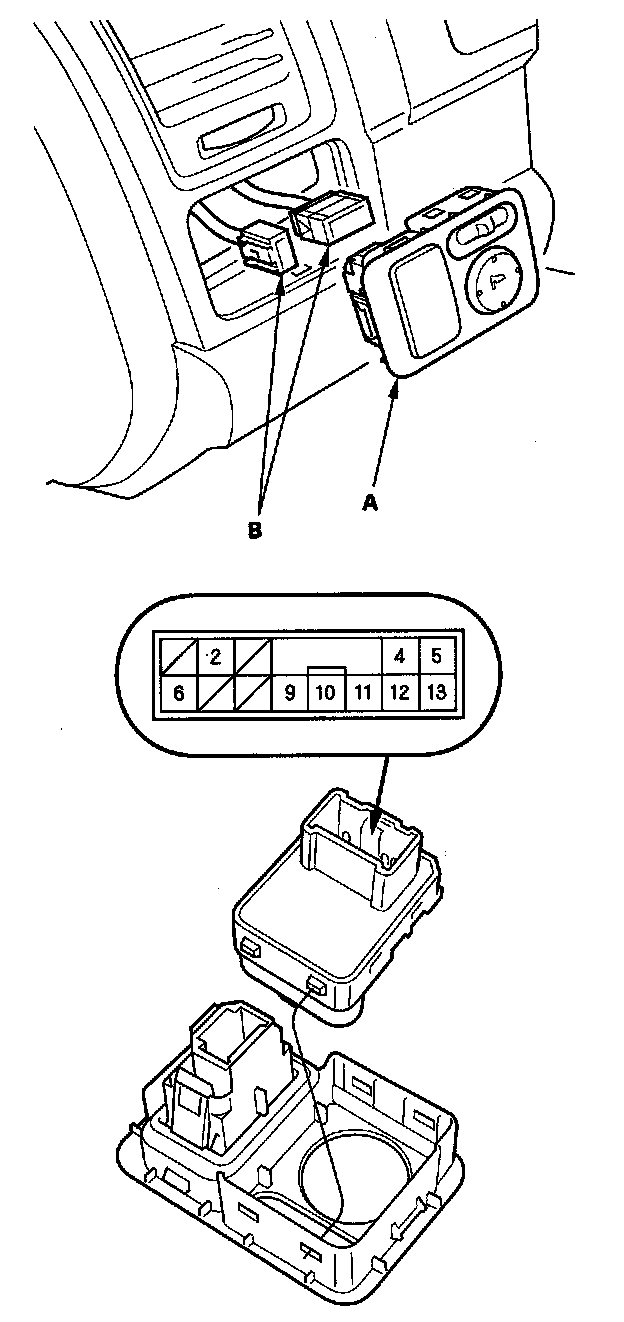

2. Push the driver's switch panel (A) out from the dashboard, and disconnect the connectors (B).
3. Check for continuity between the terminals in each switch position according to the table.
4. If the continuity is not as specified, replace the switch.
5. Install the switch in the reverse order of removal.
