Intake Air Bypass Control Thermal Valve Replacement

Remove the intake manifold cover (see step 5 under REMOVAL ).
Remove the air intake duct.
Disconnect the hoses (A).

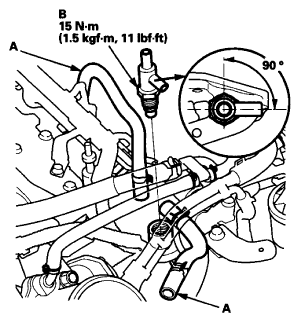

Fig 1: Intake Air Bypass Control Thermal Valve And Hoses With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the intake air bypass control thermal valve (B).
Install the parts in the reverse order of removal.
NOTE: Position the valve as shown.
