Throttle Body Disassembly/Reassembly

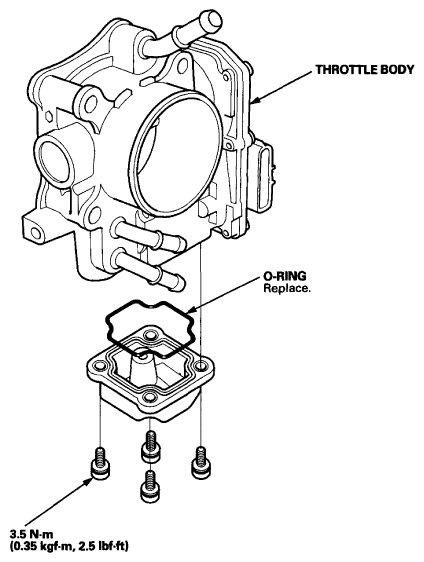

Fig 1: Throttle Body And O-Ring With Torque Specifications
G06610122Courtesy of AMERICAN HONDA MOTOR CO., INC.
