Tire Pressure Module

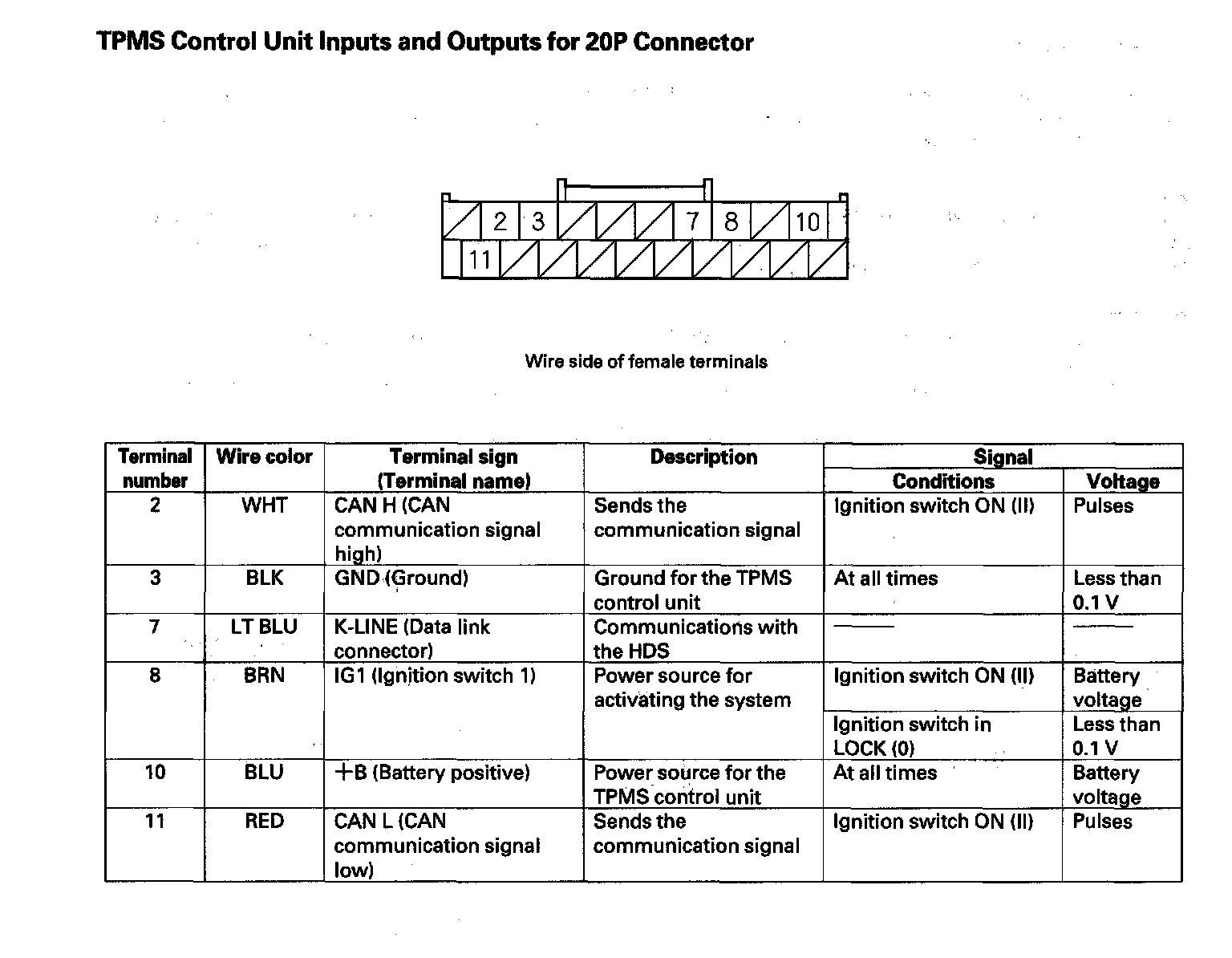

TPMS Control Unit Inputs and Outputs for 20P Connector

TPMS Control Unit Inputs And Outputs For 20P Connector:
