Overhaul Specifications

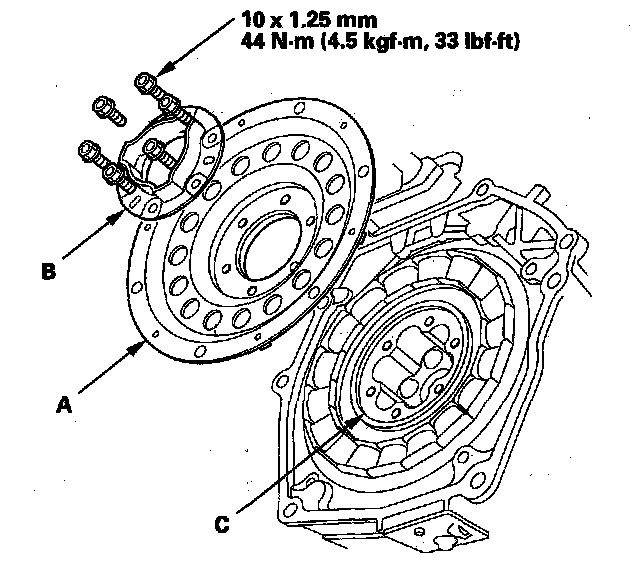

Drive plate






Flywheel to drive plate
Attach the flywheel to the drive plate with six bolts. Rotate the crankshaft pulley to tighten the bolts to 1/2 of the specified torque, then to the final torque, in a crisscross pattern.

Bolt 6 x 1.0 mm 12 Nm (1.2 kgf-m, 8.7 lbf-ft)


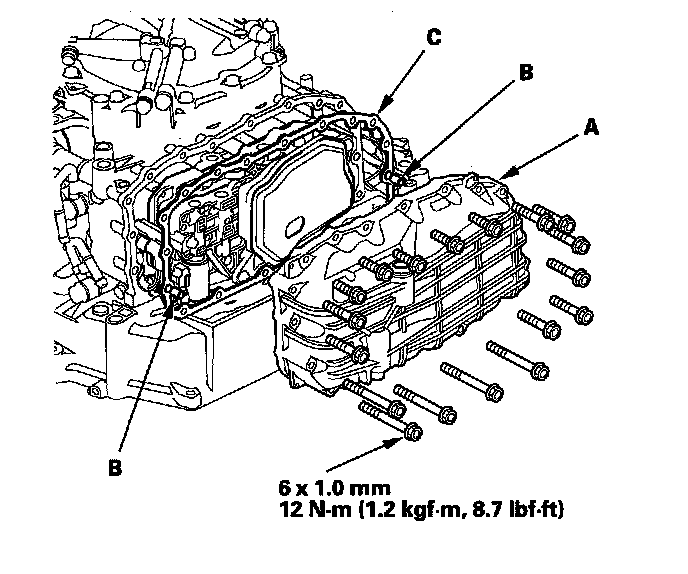

ATF pan






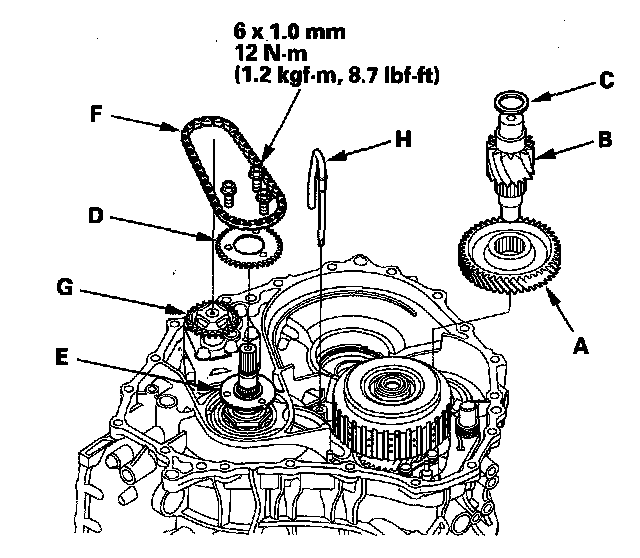

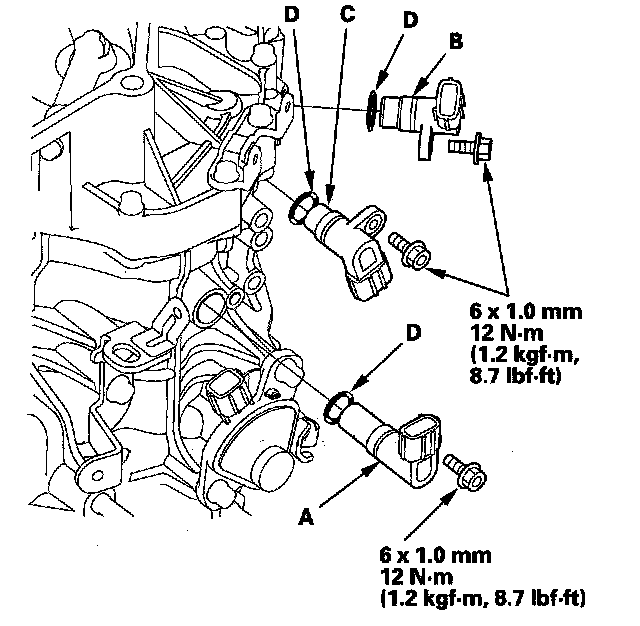

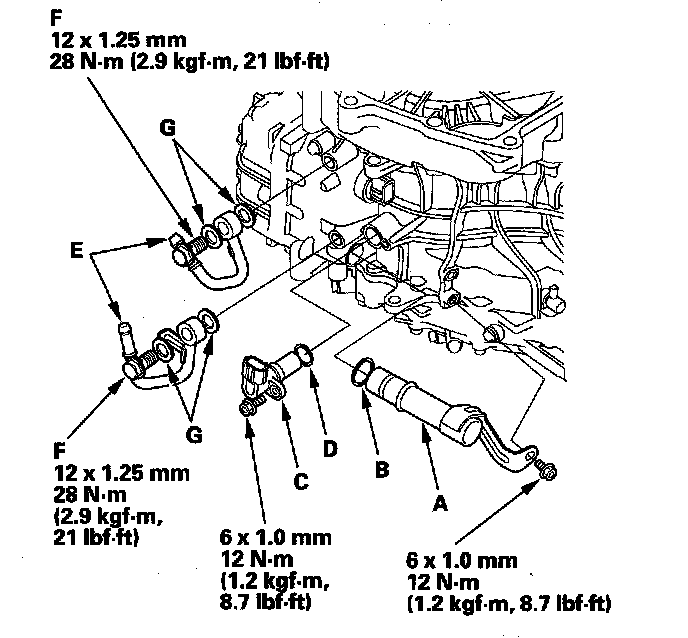

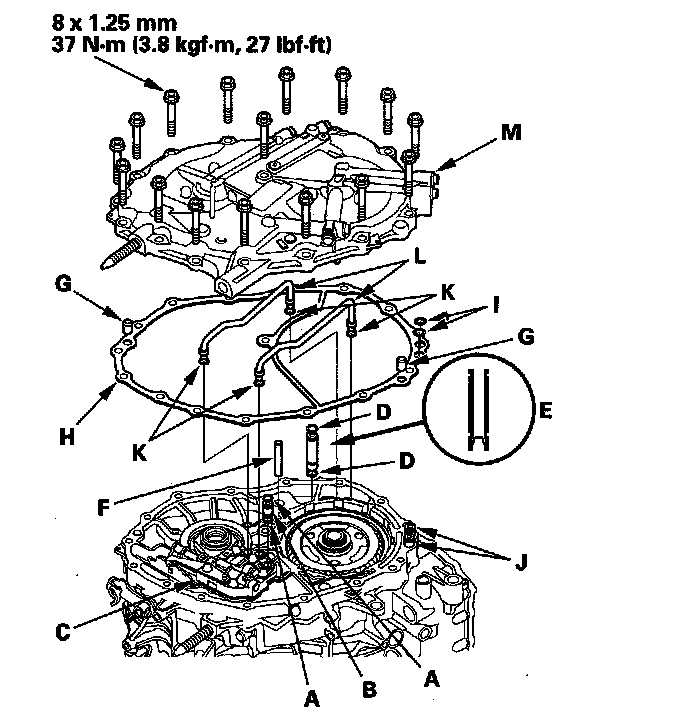

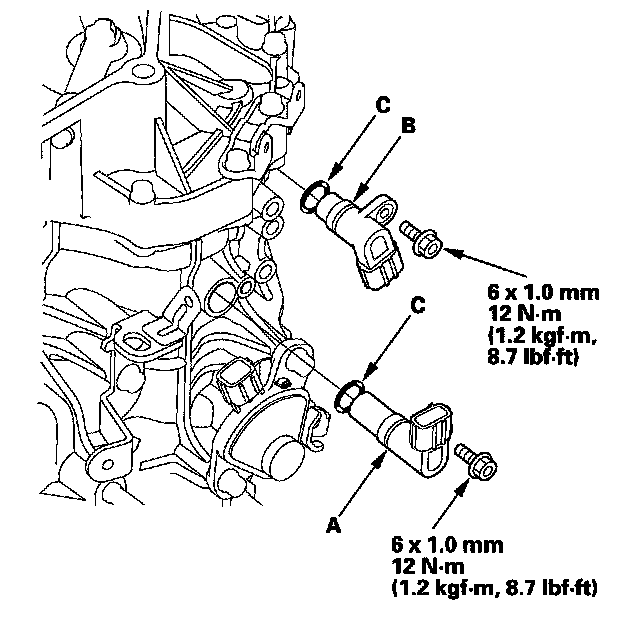

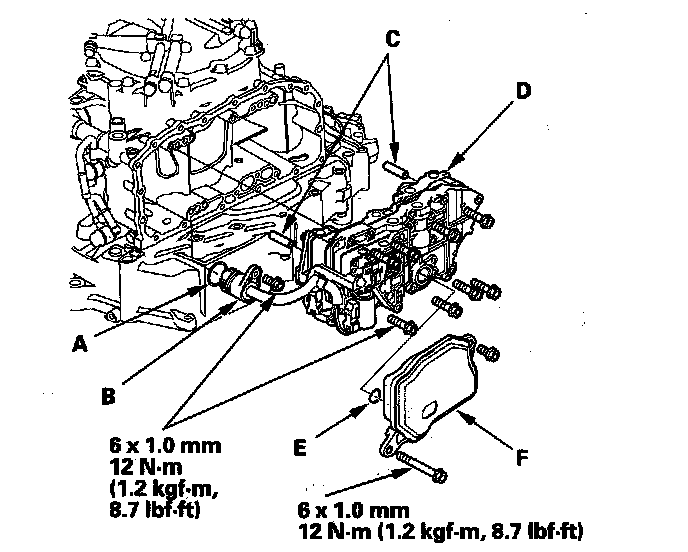

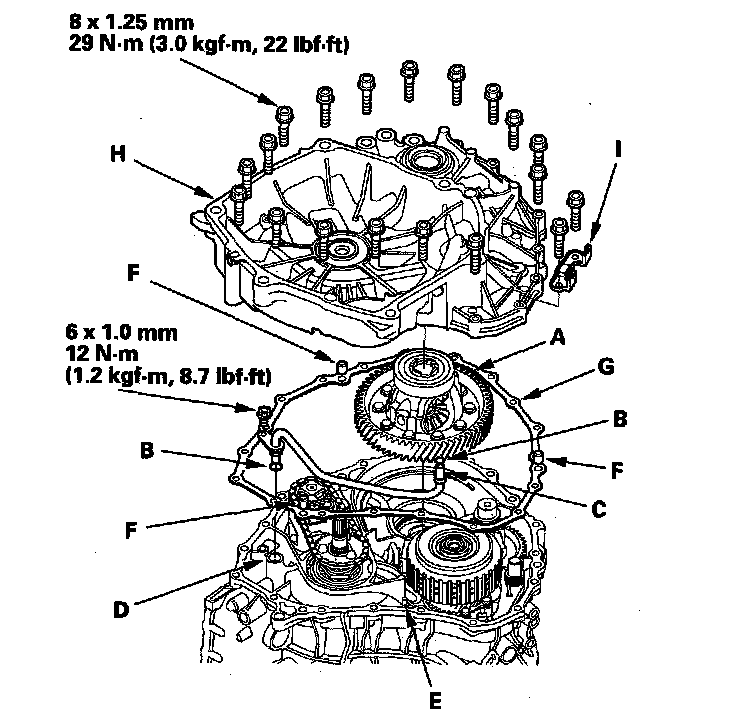

Exploded views


























For information regarding Transmission Overhaul Specifications, please refer to Service and Repair. Service and Repair
