Under-Dash Fuse/Relay Box
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Under-Dash Fuse/Relay Box

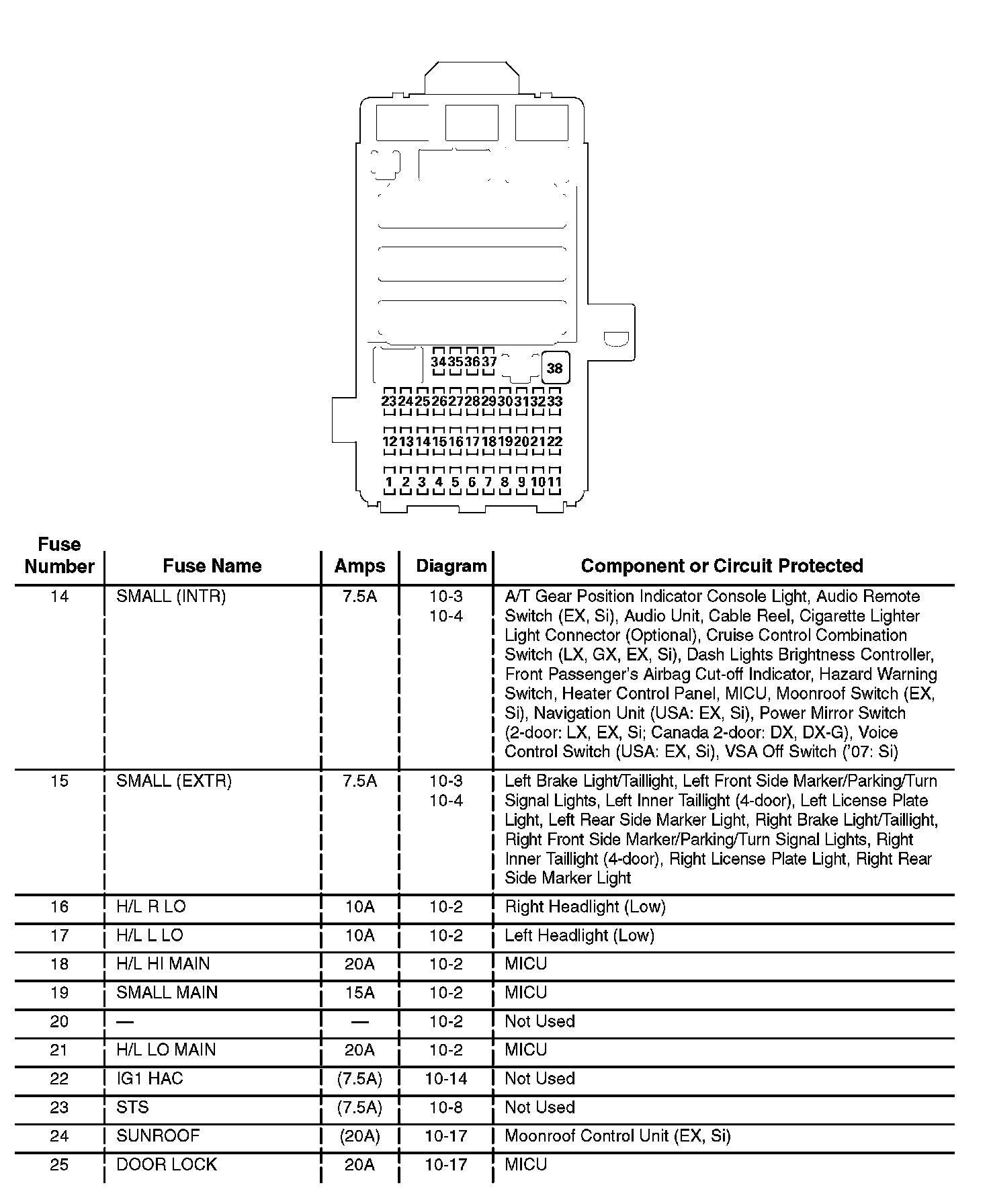

Under-Dash Fuse/Relay Box (Part 1):

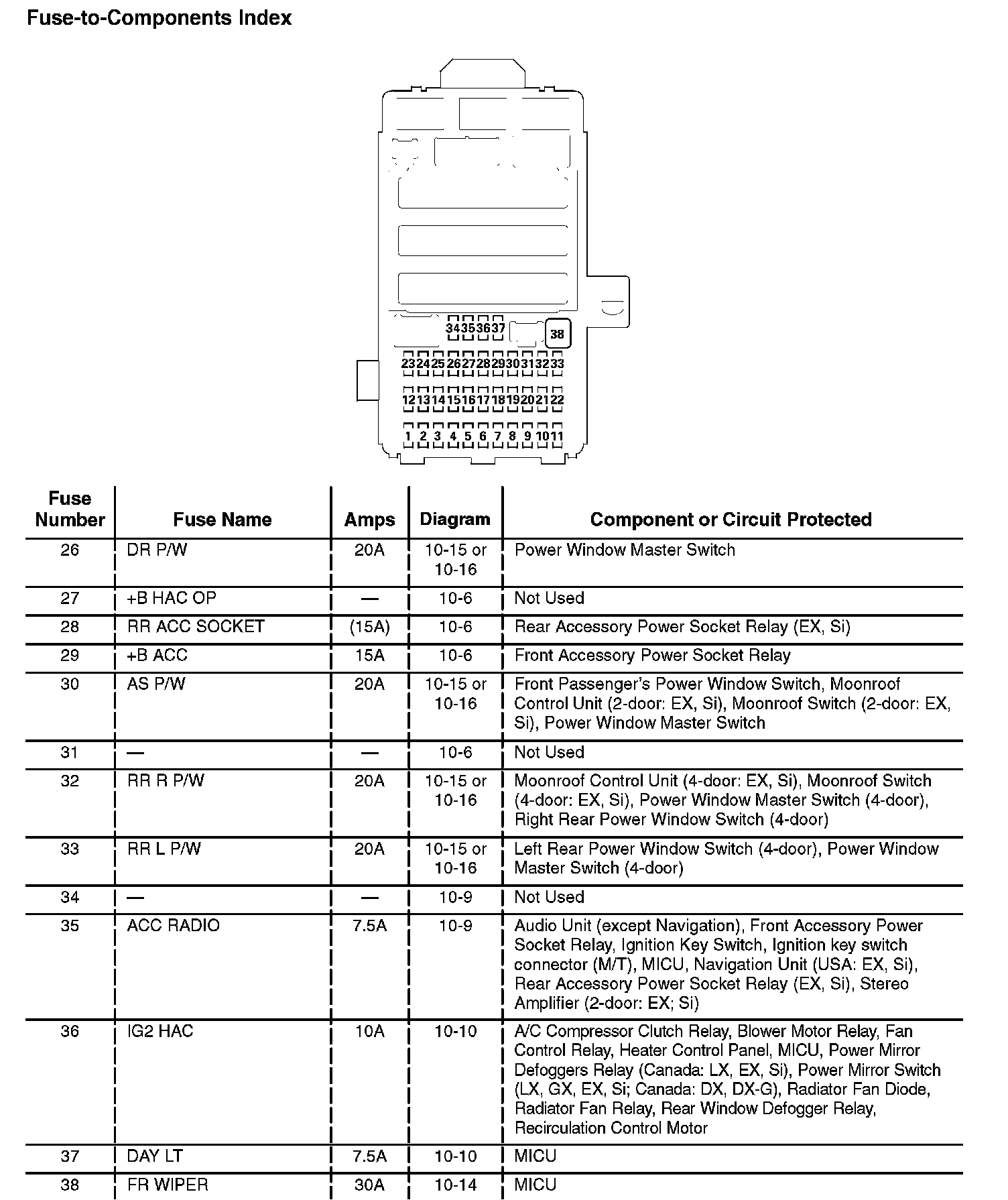

Under-Dash Fuse/Relay Box (Part 2):

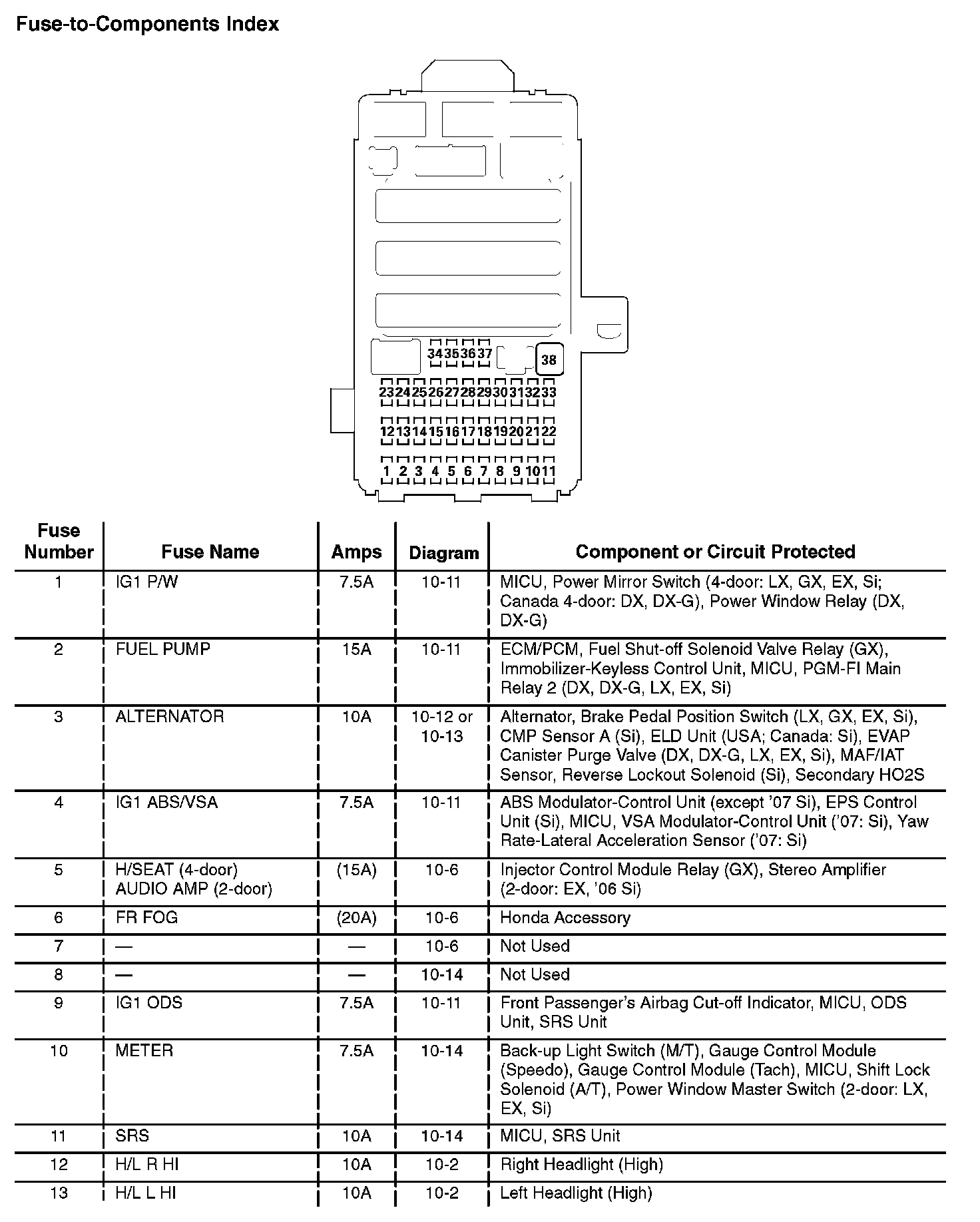

Under-Dash Fuse/Relay Box (Part 3):
