System Specifications

Crankshaft Pulley
Tighten 69 Nm (7.0 kgf-m, 51 lbf-ft) + 90°

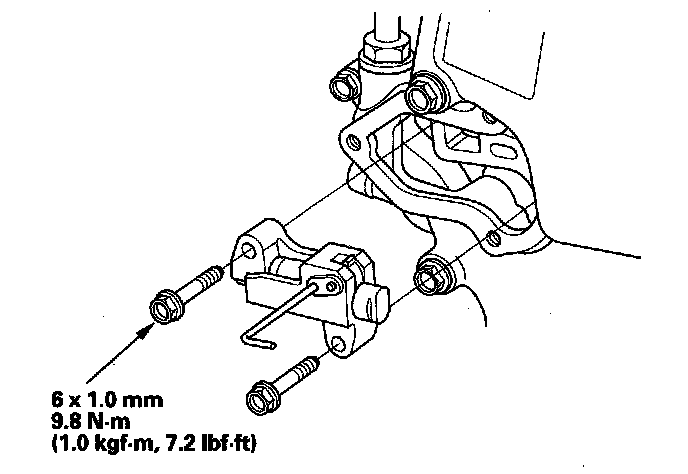

Auto-Tensioner

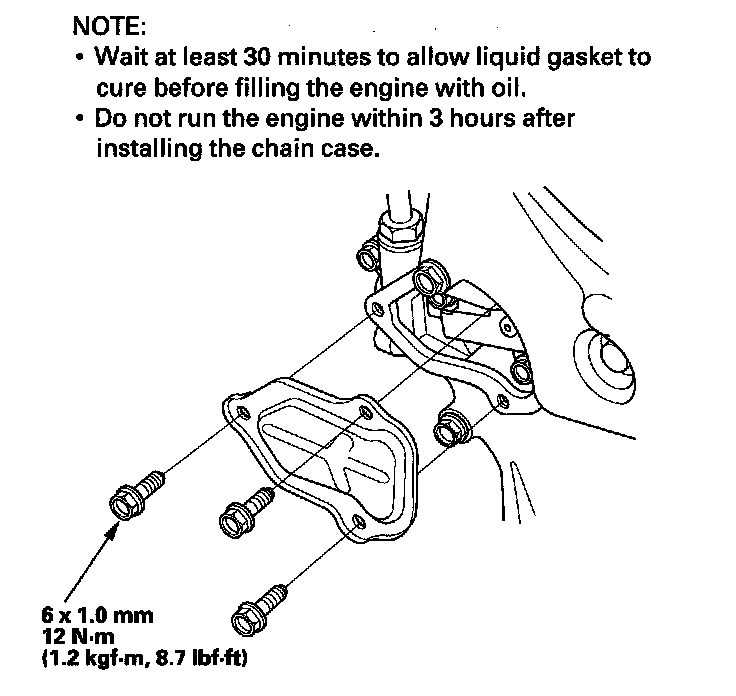

Chain Case Cover
